CI845  3BSE075853R1   通信 - S800 I/O 通信接口  以太网FCI模块

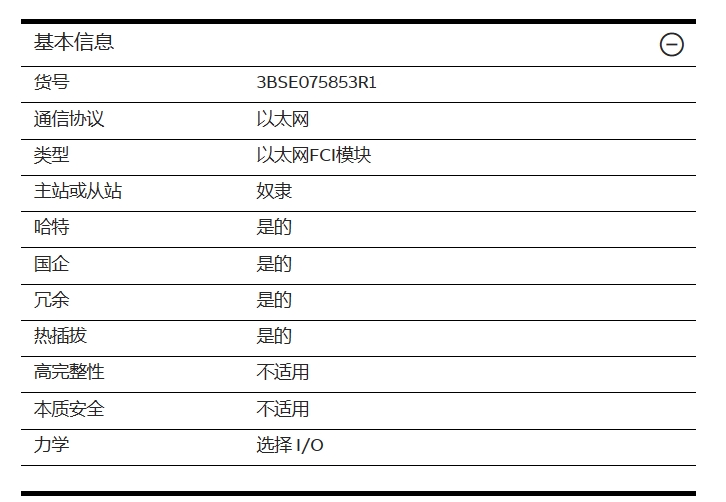

基本信息

型号：CI845

货号 3BSE075853R1

通信协议 以太网

类型 以太网FCI模块

主站或从站 奴隶

哈特 是的

国企 是的

冗余 是的

热插拔 是的

高完整性 不适用

本质安全 不适用

力学 选择 I/O

Select I/O是用于ABB Ability™ System 800xA自动化平台的以太网联网单通道细粒度I/O系统。Select I/O 有助于分离项目任务，最大限度地减少后期更改的影响，并支持 I/O 机柜的标准化，确保自动化项目在预算范围内按时交付。 信号调理模块 （SCM） 为一个 I/O 通道的连接现场设备执行必要的信号调理和供电。

CI845以太网现场总线通信接口模块（FCI）负责S800 I/O或Select I/O与AC 800M控制器的通信。对于冗余配置，需要在 TU860 或 TU865 以太网现场通信接口 MTU 中安装两个 CI845。

System 800xA 通过现场总线技术、无线 I/O 和 S800 和 S900 等硬连线 I/O 系统提供灵活的模块化 I/O 解决方案。该系统现在通过选择I/O进行了增强，允许单独调节来自现场的每个信号。选择 I/O 是以太网连接的，由单通道粒度信号调理模块 （SCM） 组成。

CI845 3BSE075853R1特点和优势

可作为单通道或冗余单元使用。

支持以太网上的 Select I/O 和 S800

支持 12 个单或 12 个冗余 S800 I/O 模块

支持多达 192 个 Select I/O 通道

可与单个或冗余 24V 电源一起使用

内置功率投票

内置电源 A 和电源 B 监控

内置机柜温度测量

内置诊断

软接线

优化工程设计

HART v7，HART 直通

应用程序的HART变量（选择I/O）

事件顺序

支持热插拔

可用于危险区域

机械锁定滑块，可在拆卸前关闭电源

机械键控

LED指示灯

Basic information

Model: CI845

Item No. 3BSE075853R1

Communication protocol Ethernet

Type Ethernet FCI module

Master or slave

Hart, yes.

State-owned enterprises, yes.

Redundant Yes

Hot swap Yes

High integrity does not apply

Intrinsically safe does not apply

Mechanics selects I/O

Select I/O is an Ethernet networked single-channel fine-grained I/O System for the ABB Ability™ System 800xA automation platform. Select I/O helps separate project tasks, minimizes the impact of late changes, and supports the standardization of I/O cabinets, ensuring automation projects are delivered on time and on budget. The Signal Conditioning Module (SCM) performs the necessary signal conditioning and power supply for connected field devices in an I/O channel.

The CI845 Ethernet Fieldbus Communication Interface Module (FCI) is responsible for the communication between the S800 I/O or Select I/O and the AC 800M controller. For redundancy, you need to install two CI845s in the MTU of the TU860 or TU865 Ethernet field communication interface.

The System 800xA provides flexible, modular I/O solutions with fieldbus technology, wireless I/O, and hardwired I/O systems such as the S800 and S900. The system is now enhanced with selective I/O, allowing each signal from the field to be individually tuned. The select I/O is Ethernet-connected and consists of a single-channel granular signal conditioning module (SCM).

CI845 3BSE075853R1 Features and advantages

Can be used as a single channel or redundant unit.

Select I/O and S800 on Ethernet are supported

Supports 12 single or 12 redundant S800 I/O modules

Supports up to 192 Select I/O channels

Can be used with a single or redundant 24V power supply

Built-in power voting

Built-in power supply A and B monitoring

Built-in cabinet temperature measurement

Built-in diagnosis

Flexible wire

Optimal engineering design

HART v7, HART through

HART variable for the application (select I/O)

Sequence of events

Supports hot swap

Can be used in dangerous areas

Mechanical locking slider to turn off power before removal

Mechanical keying

LED indicator
