CI840A  3BSE041882R1  通信 - S800 I/O 通信接口

S800 I/O 是一个全面的、分布式的、模块化的过程 I/O 系统，通过行业标准的现场总线与父控制器和 PLC 进行通信。CI840  3BSE041882R1现场总线通信接口（FCI）模块是一个可配置的通信接口，可执行信号处理、收集各种监控信息、OSP处理、热配置运行、HART直通和I/O模块配置等操作。CI840 专为冗余应用而设计。FCI 通过 PROFIBUS-DPV1 现场总线连接到控制器。要使用的模块终端单元，带冗余 I/O 的 TU846 和带非冗余 I/O 的 TU847。

3BSE041882R1特点和优势

PROFIBUS DP PROFIBUS-DPV1 现场总线接口。

I/O ModuleBus 的监控功能

I/O模块的隔离电源

OSP 处理和配置

输入电源熔断

热配置运行中

HART直通

CI840A  3BSE041882R1  通信 - S800 I/O 通信接口

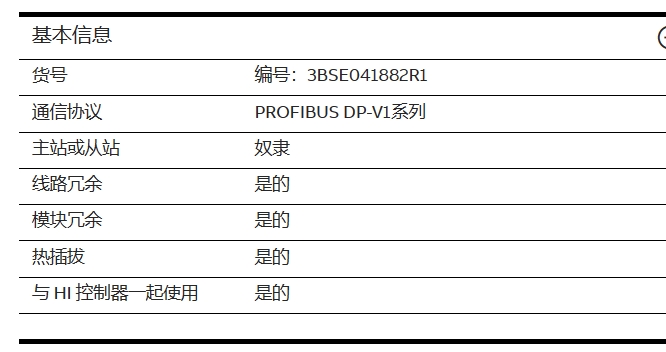

Basic information

Model: CI840A

Item number: 3BSE041882R1

Communication protocol PROFIBUS DP-V1 series

Master or slave

Line redundancy Yes

Module redundancy Yes

Hot swap Yes

Used with HI controller Yes

The S800 I/O is a comprehensive, distributed, modular process I/O system that communicates with the parent controller and PLC via an industry-standard fieldbus. The CI840 3BSE041882R1 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, collection of various monitoring information, OSP processing, hot configuration running, HART pass-through, and I/O module configuration. The CI840 is designed for redundant applications. The FCI is connected to the controller via the PROFIBUS-DPV1 fieldbus. The module terminal units to be used are TU846 with redundant I/O and TU847 with non-redundant I/O.

3BSE041882R1 Features and advantages

PROFIBUS DP PROFIBUS-DPV1 Indicates the field bus interface.

I/O ModuleBus monitoring function

Isolated power supply for the I/O module

OSP processing and configuration

The input power is blown

Hot configuration running

HART through
