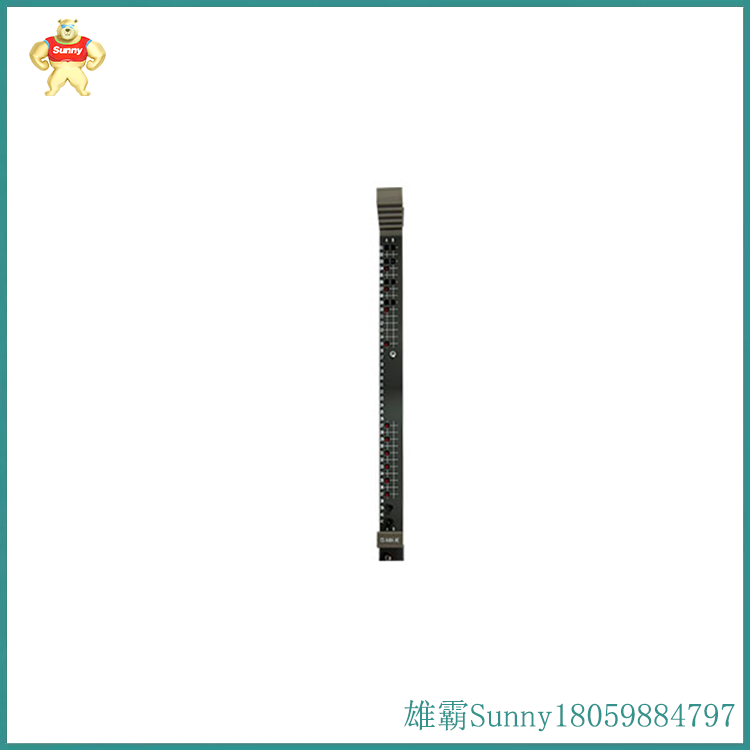

ABB CSA464AE 电路板模块

CSA464AE HIEE400106R0001电路板模块CSA464AE我们在维修电路板时，可以根据电路板电路块的结构组成将电路板划分成一块块单元电路,然后判断是那一个电路块出现的故障，在去查找锁定的电路块中是哪一个电子 元件损坏，然后采用同型号同规格的电子元件进行更换，将发生故障的电路板维修好。

那么我们电路板中电路具体分为哪些电路块,怎样判断各电路块否存在故障、我们又该怎样查呢?

CSA464AE HIEE400106R0001电路板模块CSA464AE在电路板中，不管是什么类型的电路板基本上都是由:电源给应电路、输入接口电路、微处理器控制电路、输出接口电路、显际电路、保护电路和通信电路等7大部分电路组成。只要咱们掌握了这七大类的电路组成结构和控制原理,知道每类电路的结构组成特点和关键部件,能在电路板中判断出每部分电路是属于那-类电路,熟悉每一类电路的故障规律和特点 就可以针对各种类型的电路板进行维修了。

CSA464AE HIEE400106R0001 Circuit Board Module CSA464AE When repairing a circuit board, we can divide the circuit board into unit circuits based on the structural composition of the circuit board circuit blocks, and then determine which circuit block is faulty. We need to find which electronic component in the locked circuit block is damaged, and then replace it with electronic components of the same model and specification to repair the faulty circuit board.

So what specific circuit blocks are the circuits in our circuit board divided into, how can we determine if each circuit block has a fault, and how should we investigate it?

CSA464AE HIEE400106R0001 Circuit Board Module CSA464AE is basically composed of 7 major circuits in a circuit board, including power supply circuit, input interface circuit, microprocessor control circuit, output interface circuit, display circuit, protection circuit, and communication circuit. As long as we master the composition structure and control principles of these seven major types of circuits, know the structural characteristics and key components of each type of circuit, can determine which type of circuit each part belongs to in the circuit board, and be familiar with the fault patterns and characteristics of each type of circuit, we can repair various types of circuit boards.
