REM615 电动机保护测控装置  可选的弧光保护和高速出口

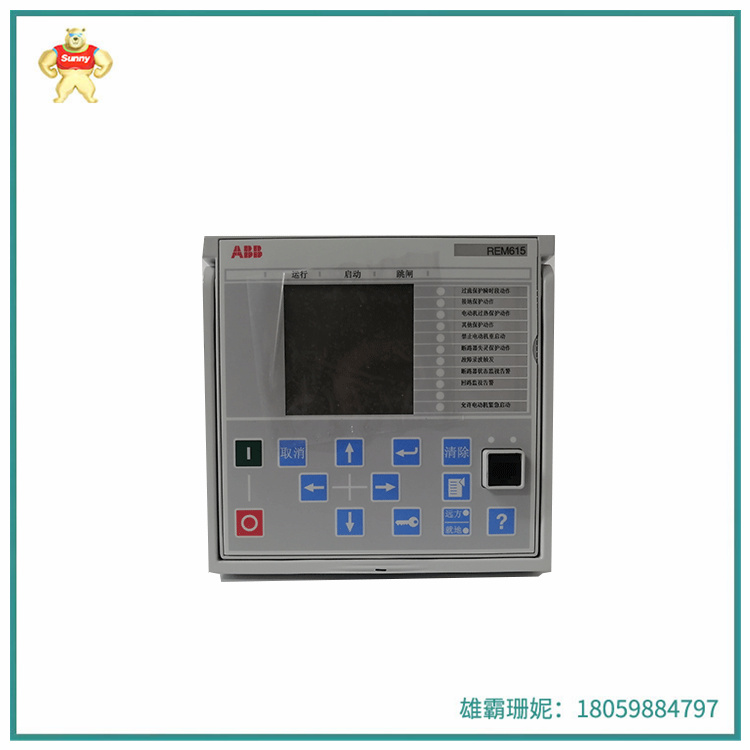

REM615 电动机保护测控装置

为异步电动机提供结构紧凑且多功能的解决方案

REM615 电动机保护测控装置，作为专用电动机保护装置，在制造业和加工业中，专门用于保护、控制、测量和监视异步电动机。通常，在驱动器应用中，REM615 和断路器或接触器控制的高压电动机、及接触器控制的大中型低压电动机结合使用。REM615具备四种标准配置，包括所有的基本电动机保护功能、电压保护功能和功率及电能测量。还极大便利了电动机的本地或远程启动/停止控制。

REM615 电动机保护测控装置，以支持变电站 IEC61850 通信标准、并行冗余规约（PRP）和高可用性无缝冗余度协议（HSR）为特点，其中 IEC61850 通信标准包含 IEC 61850-9-2 LE。该装置还支持 DNP3、IEC 60870-5-103 和 Modbus® 规约。通过使用 SPA-ZC 302 规约适配器，装置支持 Profitbus DPV1 规约。

REM615 电动机保护测控装置是 ABB 的 Relion® 产品家族中 615 产品系列的成员。

主要优势

一台继电保护装置集成了保护、控制、测量和监视功能

提供电动机启动、负载丢失监视、热过负荷、电机反转保护，可以采用传感器或传统 CT/PT

具有预配置好的的标准配置，亦可通过功能配置快速简便地满足不同的应用需求

快速安装和测试的可插拔式设计

带可编辑单线图的大液晶显示，可通过本地或基于 Web 浏览器的易于使用的 HMI 来访问

周到的产品全生命周期服务

主要特性

具有基于电压和频率的保护和测量功能

在电动机启动和运行期间提供异常情况的保护和故障清除

可选的弧光保护和高速出口

支持 IEC61850 第一版和第二版，包括冗余 HSR 和 RPR，GOOSE 和 IEC61850-9-2 LE

支持 IEEE 1588 v2 高精密时间协议

支持 MODBUS、DNP3 和 IEC 60870-5-103

REM615 motor protection measurement and control device

A compact and versatile solution for asynchronous motors

The REM615 Motor Protection measurement and control device is a specialized motor protection device designed to protect, control, measure and monitor asynchronous motors in manufacturing and processing industries. Typically, in driver applications, the REM615 is used in combination with high-voltage motors controlled by circuit breakers or contactors, as well as large and medium voltage motors controlled by contactors. The REM615 comes in four standard configurations, including all basic motor protection functions, voltage protection functions, and power and energy measurements. It also greatly facilitates local or remote start/stop control of the motor.

The REM615 motor protection measurement and control unit features support for the substation IEC61850 communication standard, Parallel Redundancy Protocol (PRP) and High Availability Seamless Redundancy Protocol (HSR), which includes IEC 61850-9-2 LE. The device also supports DNP3, IEC 60870-5-103, and Modbus® protocols. The device supports the Profitbus DPV1 protocol by using the SPA-ZC 302 protocol adapter.

The REM615 Motor Protection Measurement and Control unit is a member of the 615 product family of ABB's Relion® product family.

Major advantage

A relay protection unit integrates protection, control, measurement and monitoring functions

Provides motor start, load loss monitoring, thermal overload, motor reversal protection with sensors or traditional CT/PT

With pre-configured standard configurations, you can also quickly and easily meet different application requirements through functional configuration

Pluggable design for quick installation and testing

Large LCD display with editable single line charts, accessible locally or via an easy-to-use HMI based Web browser

Thoughtful product life cycle service

Main characteristics

Protection and measurement based on voltage and frequency

Provides protection against anomalies and troubleshooting during motor start-up and operation

Optional arc protection and high speed exit

IEC61850 1st and 2nd editions are supported, including redundant HSR and RPR, GOOSE and IEC61850-9-2 LE

Support IEEE 1588 v2 high precision time protocol

Supports MODBUS, DNP3, and IEC 60870-5-103
