RED521 1MRK002003-BA  模拟继电器  可选测试交换模块

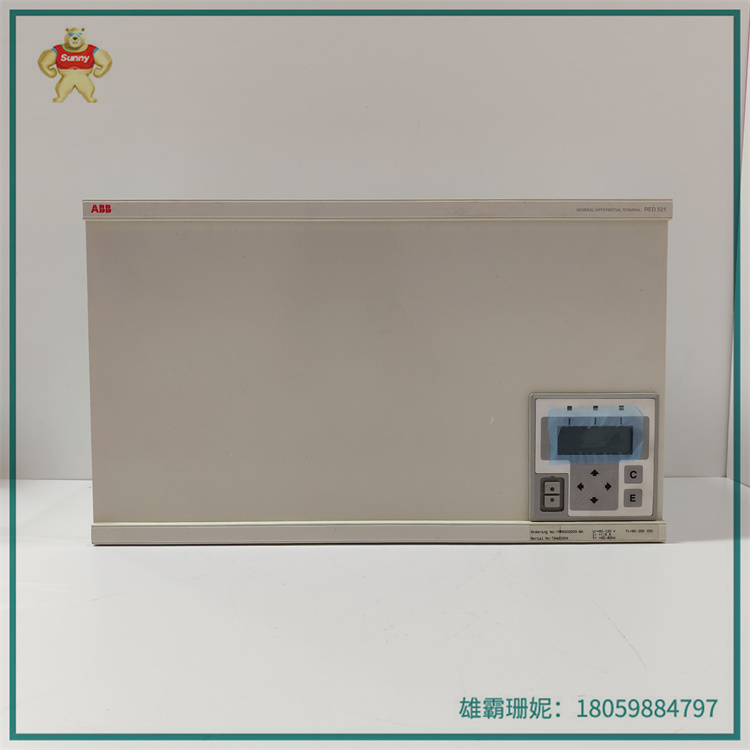

型号：RED521 1MRK002003-BA

RED 521是rads和REB 103模拟继电器的数字继任者，在35年的时间里已经安装在超过10,000个区域。这些继电器显示了一个令人印象深刻的跟踪记录，没有错误的操作，RED521 1MRK002003-BA由于继电器的不正确的功能。RED 521的设计延续了这一传统。此外，它已经在相同的大电流实验室进行了测试，以验证其设计。此外，该终端在客户测试设施的多次评估测试中表现出色。

RED 521端子属于ABB 500系列保护和控制端子系列。该产品系列的25000多个终端已成功安装在世界各地的电网中。

RED521 1MRK002003-BA保护功能

差动保护，工作时间通常为10- 15ms

开启CT检测功能载荷传递功能

监控

-事件列表，最多16个事件

-显示每个相位和保护区域的模拟服务值

串行数据通信·LON

硬件

-19“机架箱尺寸

-一个或两个模拟输入模块

电流输入1A或5A主ct分接

电源模块覆盖24v ~ 250vdc土20%

具有2i输出的二进制输出模块(在工厂预配置)

具有16个输入的二进制输入模块(在工厂配置)

—可选测试交换模块
