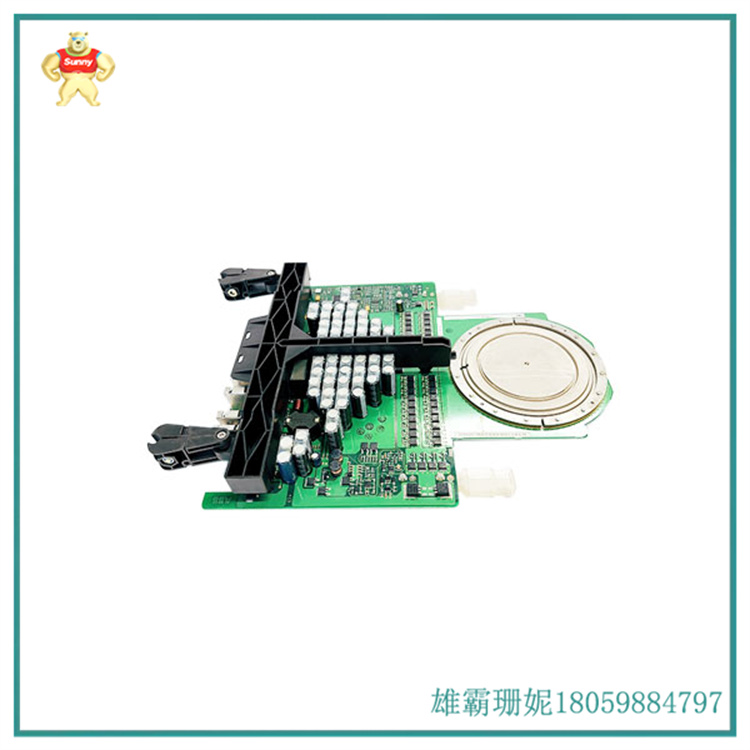

ABB 5SHX1960L0006 IGCT模块

面对变频器含有大量谐、畸变或是非I频的电量,准确的测量方法是采用具有FFT功能的仪器。对于高压、大容量的变频器进行测试，由于电压、电流数值较大，一般的仪表不能满足要求， 要采用电压或电流传感器，然后再接仪表进行测量。WP4000变频功率分析仪根据搭配不同的变频功率传感器最高测试可实现电压10kV、电流7000A高压变频器的输入、输出、效率测试。

●包括:

●输入值:额定输入电压、额定输入电流、额定容量、有功功率、功率因数、输入各次谐波、输入总谐波失真度。

●输出值:最大额定输出电压、额定连续电流、额定功率、频率范围、过载能力、输出各次谐波、输出总谐波失真度。

●效率:在设计的频率范围内，各个频率下的效率。

压大功率变频调速装置被广泛地应用于大型矿业生产厂、石油化工、市政供水、治金钢铁、电力能源等行业的各种风机、水泵压缩机、轧钢机等。

The accurate measurement method for frequency converters containing a large amount of harmonic, distorted, or non I-frequency electricity is to use instruments with FFT function. For testing high-voltage and high-capacity frequency converters, due to the large values of voltage and current, general instruments cannot meet the requirements. Therefore, voltage or current sensors should be used, and then instruments should be connected for measurement. The WP4000 variable frequency power analyzer can achieve input, output, and efficiency testing of a high-voltage inverter with a voltage of 10kV and a current of 7000A based on different combinations of variable frequency power sensors.

● Including:

● Input values: rated input voltage, rated input current, rated capacity, active power, power factor, input harmonics, input total harmonic distortion.

● Output value: maximum rated output voltage, rated continuous current, rated power, frequency range, overload capacity, output harmonic of each order, and output total harmonic distortion.

Efficiency: The efficiency at various frequencies within the designed frequency range.

The high-power variable frequency speed regulation device is widely used in various industries such as large-scale mining production plants, petrochemical industry, municipal water supply, metallurgical steel, power energy, etc., such as fans, water pump compressors, and steel rolling machines.
