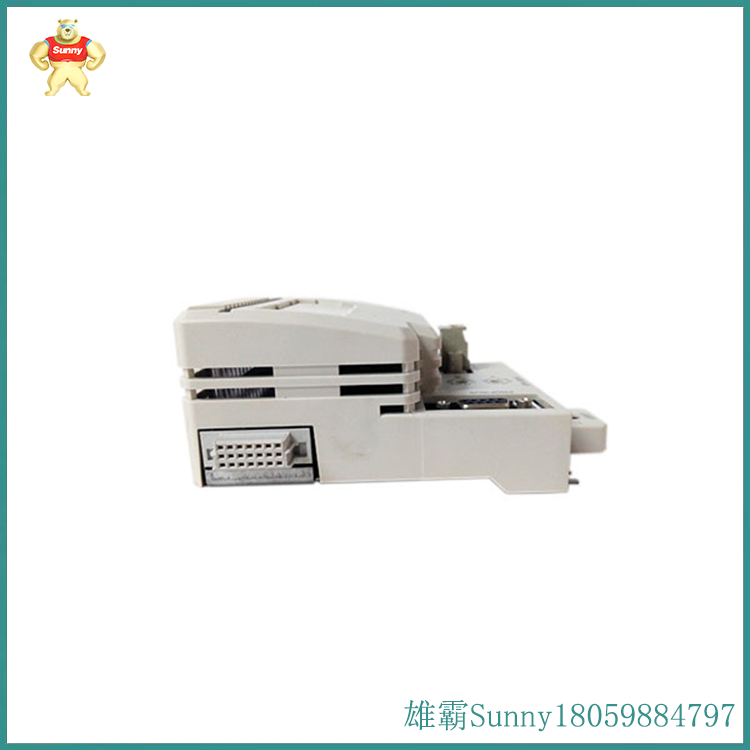

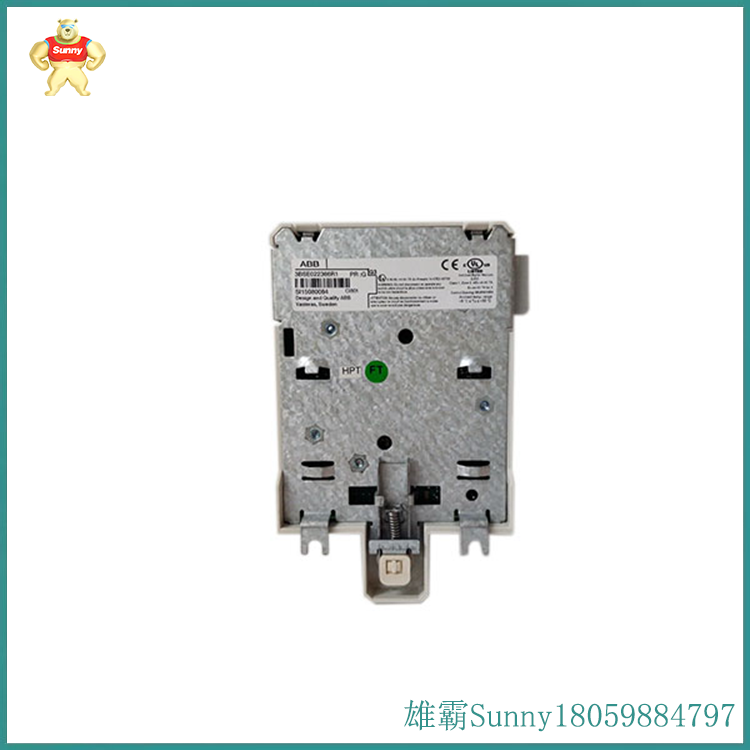

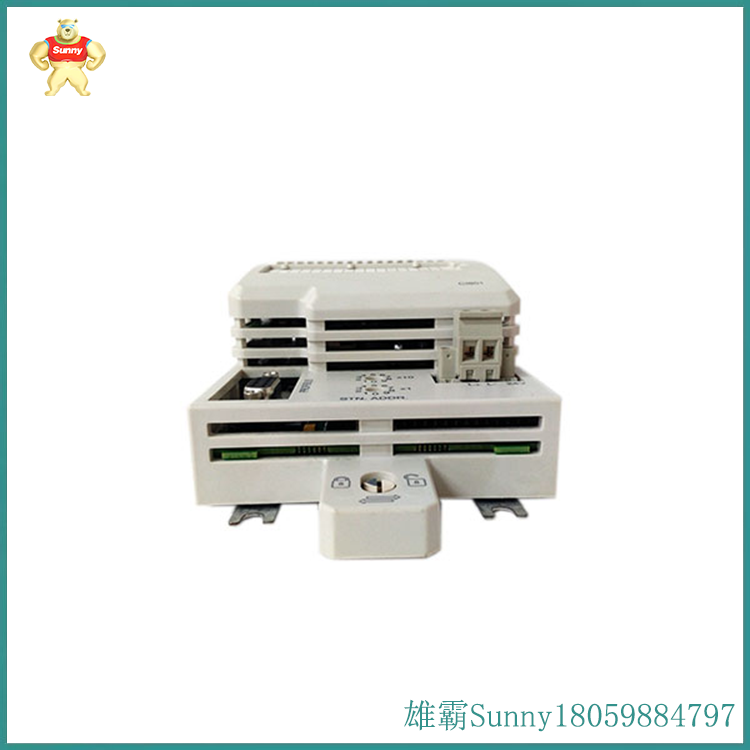

ABB CI801 通信 - S800 I/O 通信接口

S800 I/O 是一个全面的分布式模块化过程 I/O 系统，可通过行业标准现场总线与父控制器和 PLC 通信。CI801现场总线通信接口（FCI）模块是一个可配置的通信接口，可执行信号处理、监控信息收集、OSP处理、热配置InRun、HART通槽和I/O模块配置等操作。FCI 通过 PROFIBUS-DPV1 现场总线连接到控制器。

• PROFIBUS DP PROFIBUS-DPV1 现场总线接口。
• I/O模块总线的监控功能
• I/O 模块的隔离电源
• OSP 处理和配置
• 输入功率熔断
• 运行中的热配置
• 哈特直通

S800 I/O is a comprehensive distributed modular process I/O system that can communicate with parent controllers and PLCs through industry standard fieldbuses. The CI801 fieldbus communication interface (FCI) module is a configurable communication interface that can perform operations such as signal processing, monitoring information collection, OSP processing, hot configuration InRun, HART slot, and I/O module configuration. FCI is connected to the controller via PROFIBUS-DPV1 fieldbus.

PROFIBUS DP PROFIBUS-DPV1 fieldbus interface.

Monitoring function of I/O module bus

Isolated power supply for I/O modules

OSP processing and configuration

Input power fuse

Hot configuration in operation

Hart Direct
