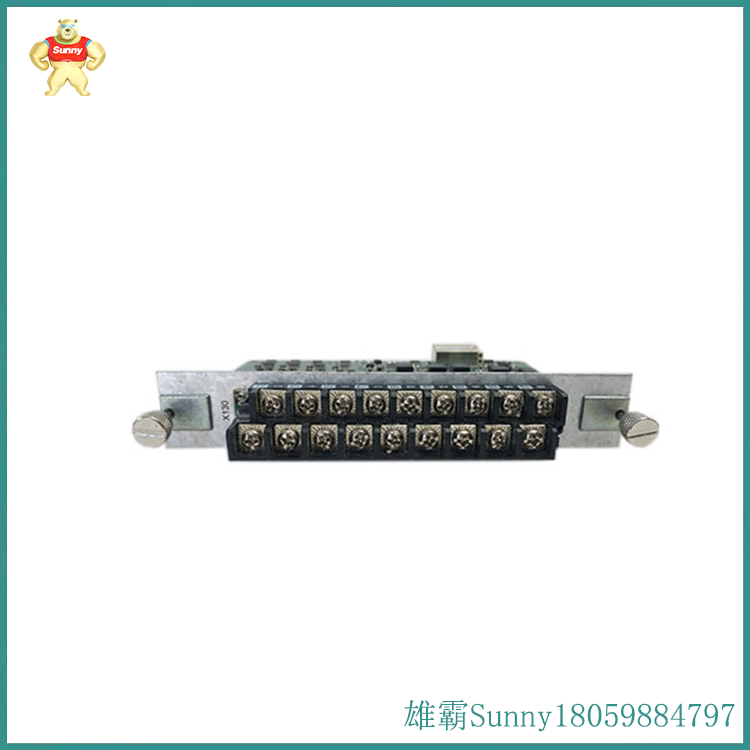

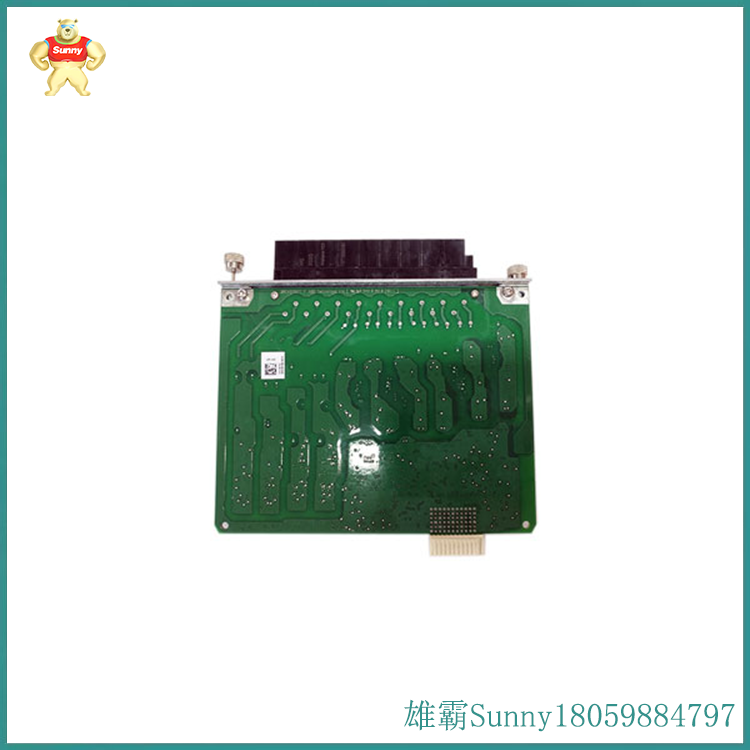

ABB AIM0006 模拟输入模块

ABB AIM0006 2RCA021397A0001P以太网板铰链式前盖。盖子很容易打开以接近端子板连接。通常，它保持关闭，以防止人员意外接触热端子。请注意，在下图中，前盖插件的背面包含端子板连接的示意图。模块目录号(所示示例中为IC693MDL940) 印在前盖插件的底部。ABB AIM0006 2RCA021397A0001P模块目录号也印在模块侧面的标签上。但是，为了看到该侧标签，必须从PLC中移除模块。在前盖插入件的前侧，是与模块的/O点相对应的线。如图中的示例所示，您可以暂时移除插件，并将每个点的信号名称写在适当的线上。此外，在前盖插件的前侧，在插件的左边缘垂直延伸，有一个颜色条，用于标识模块类型:蓝色=DC,红色=AC，灰色-模拟。

ABB AIM0006 2RCA021397A0001P Ethernet board hinged front cover. The cover is easy to open to access the terminal board connection. Usually, it remains closed to prevent personnel from accidentally coming into contact with the hot terminal. Please note that in the figure below, the back of the front cover plug-in contains a schematic diagram of the terminal board connection. The module catalog number (IC693MDL940 in the example shown) is printed on the bottom of the front cover plug-in. The ABB AIM0006 2RCA021397A0001P module catalog number is also printed on the label on the side of the module. However, in order to see the label on this side, the module must be removed from the PLC. On the front side of the front cover insert, there is a line corresponding to the/O point of the module. As shown in the example in the figure, you can temporarily remove the plugin and write the signal name of each point on the appropriate line. In addition, on the front side of the front cover plug-in, extending vertically at the left edge of the plug-in, there is a color bar used to identify the module type: blue=DC, red=AC, gray - analog.
