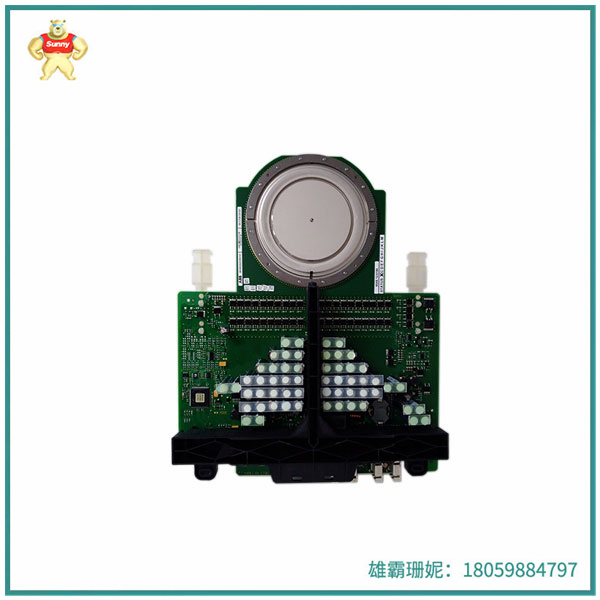

5SHY4045L0006  可控硅   IGCT集成门极换流晶闸管

可控硅（Silicon Controlled Rectifier）简称SCR，是一种大功率电器元件，也称晶闸管。它具有体积小、效率高、寿命长等优点。在自动控制系统中，可作为大功率驱动器件，实现用小功率控件控制大功率设备。可控硅分单向可控硅和双向可控硅两种。双向可控硅也叫三端双向可控硅，简称TRIAC。双向可控硅在结构上相当于两个单向可控硅反向连接，这种可控硅具有双向导通功能。其通断状态由控制极G决定。在控制极G上加正脉冲（或负脉冲）可使其正向（或反向）导spongepowered。这种珍贵装置控电路置换adients很简单，没有反向耐压问题，因此特别适合做交流无触点开关使用。

可控硅作为一种大功率电器元件，具有许多优点和缺点。

优点包括：

高稳定性：5SHY4045L0006可控硅具有高温度稳定性和抗辐射性能，可在恶劣的环境条件下工作，提高设备的可靠性和寿命。

高功率密度：可控硅具有较高的功率密度，能够承受较大的电流和电压，适用于高功率应用领域。

快速响应：可控硅具有快速的响应速度，可在微秒级别实现开关操作，适用于高频率应用。

可控性强：可控硅通过控制控制极的电流或电压来实现对自身通电和断电的控制，具有较高的可控性。

较低的导通损耗：可控硅在导通状态时具有较低的电压降和导通电流，降低了能量损耗和热量产生。

安装简便：可控硅具有简单的连接方式和结构，安装方便，不需要复杂的散热装置。

应用领域广泛：可控硅在电力控制、自动化控制、通讯、电动机控制、照明等领域都有应用。

缺点包括：

稳定性较差：5SHY4045L0006可控硅的输入电流与输出电压之间具有一定的滞后性，并且随着工作温度的升高，可控硅的工作也会变得不稳定。因此，在一些高精度、高可靠性的应用场合，可控硅并不是首选器件。

损耗较大：5SHY4045L0006可控硅工作时，其内部会产生较大的功耗，会引起电能的浪费，因此会降低整个系统的效率。此外，由于可控硅的导通电阻很小，在高压高电流的情况下会产生较大的热量，需要进行散热，增加了整个系统的成本。

灵敏度低：5SHY4045L0006可控硅在触发时需要一定的触发电流，因此灵敏度较低。在一些需要高速响应的应用中，可控硅可能无法满足要求，需要使用其他器件。

无反向阻止能力：可控硅在正向工作时可以承受较大的电流和电压，但在反向工作时，其电容很小，无反向阻止能力，可能会烧毁器件。

电磁干扰：由于可控硅内部结构复杂，并且需要通过外部元器件进行触发才能工作，因此容易受到电磁干扰，稳定性较差。

不能承受较大的冲击、不能过载保护、寿命短等也是可控硅的一些缺点。

综上所述，虽然可控硅在电能控制、交流调速等方面具有重要的应用价值，但其缺点也不容忽视。因此，在具体应用时需要结合实际需求，选择合适的器件进行控制。

5SHY4045L0006  可控硅   IGCT集成门极换流晶闸管

Silicon Controlled Rectifier (SCR) is a high-power electrical component, also known as a thyristor. It has the advantages of small size, high efficiency and long life. In the automatic control system, it can be used as a high-power driving device to realize the control of high-power equipment with low-power control. Thyristors are divided into two kinds: unidirectional thyristors and bidirectional thyristors. Bidirectional thyristor is also called TRIAC, or TRIAC for short. The bidirectional thyristor is structurally equivalent to two unidirectional thyristors in reverse connection, and this thyristor has a dual pilot pass function. Its on-off state is determined by the control pole G. Adding positive pulse (or negative pulse) to the control pole G can make it positive (or reverse) guide spongepowered. This precious device control circuit replacement adients is simple and has no reverse voltage resistance problems, so it is particularly suitable for AC contactless switch use.

As a high-power electrical component, thyristor has many advantages and disadvantages.

Advantages include:

High stability: The 5SHY4045L0006 thyristor has high temperature stability and radiation resistance, and can work under harsh environmental conditions to improve the reliability and life of the equipment.

High power density: thyristor has a high power density and can withstand large currents and voltages, which is suitable for high power applications.

Fast response: The thyristor has a fast response speed and can achieve switching operation at the microsecond level, which is suitable for high frequency applications.

Strong controllability: The thyristor realizes the control of its own power-on and power-off by controlling the current or voltage of the control pole, and has high controllability.

Low on-loss: The thyristor has a lower voltage drop and on-current when it is on, reducing energy loss and heat generation.

Easy installation: thyristor has a simple connection mode and structure, easy installation, and does not require complex heat dissipation devices.

A wide range of applications: SCR is used in power control, automation control, communication, motor control, lighting and other fields.

Disadvantages include:

Poor stability: there is a certain lag between the input current and the output voltage of the 5SHY4045L0006 thyristor, and with the increase of the operating temperature, the work of the thyristor will become unstable. Therefore, in some high-precision and high-reliability applications, thyristor is not the first choice.

Large loss: When the 5SHY4045L0006 thyristor works, its internal power consumption will be large, which will cause the waste of electrical energy, so it will reduce the efficiency of the entire system. In addition, because the on-resistance of thyristor is very small, large heat will be generated in the case of high voltage and high current, and heat dissipation is required, increasing the cost of the entire system.

Low sensitivity: 5SHY4045L0006 thyristor requires a certain triggering current when triggered, so the sensitivity is low. In some applications where high-speed response is required, thyristor may not meet the requirements and other devices may be needed.

No reverse blocking ability: thyristor can withstand large current and voltage when working forward, but in reverse working, its capacitance is small, no reverse blocking ability, may burn the device.

Electromagnetic interference: Due to the complex internal structure of thyristor and the need to be triggered by external components to work, it is vulnerable to electromagnetic interference and poor stability.

Can not withstand large impact, can not overload protection, short life is also some of the disadvantages of thyristor.

In summary, although thyristor has important application value in power control, AC speed regulation, etc., its shortcomings can not be ignored. Therefore, in the specific application, it is necessary to select the appropriate device for control according to the actual needs.
