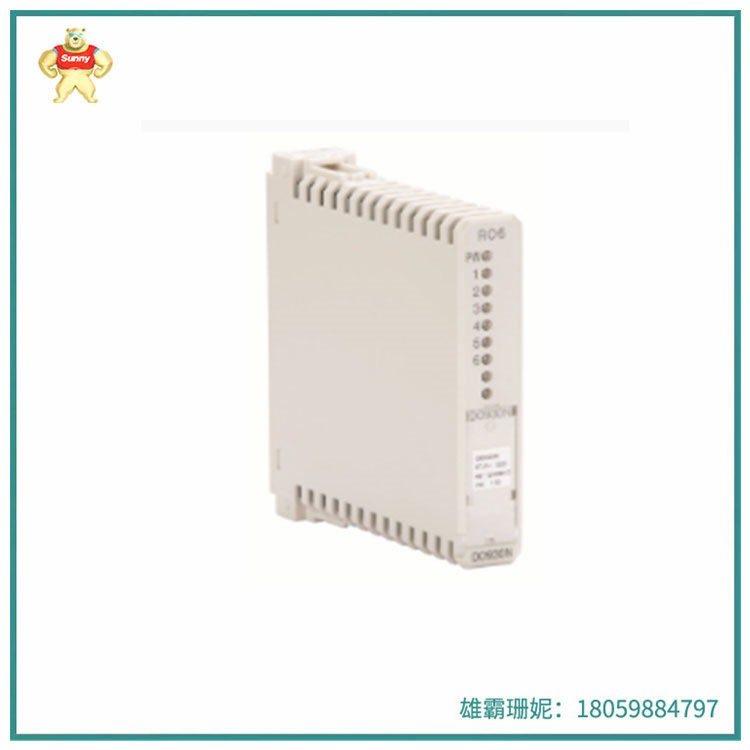

DO930N 4个通道继电器输出  输出可配置为NO或NC触点

3 bds014114

一般信息

产品编号:3 bds014114

ABB型号:DO930N

目录描述:DO930N继电器输出(RO6)

长描述:远程S900 I/O系统可以安装在非危险区域或直接安装在1区或2区危险区域，具体取决于所选择的系统变体。

S900 I/O与控制系统级通信采用PROFIBUS DP标准。

I/O系统可以直接安装在现场，因此降低了混合和布线的成本。

该系统坚固、容错、易于维护。

集成的断开机制允许在运行期间进行更换，这意味着不需要中断一次电压以交换电源单元。

S900 I/O型N.安装在安全(=无危险)区域。

DO930N继电器输出(RO6)，继电器输出更高的开关功率。

-冗余(电力及通讯)

—“运行”中的“热配置”

-热插拔功能

-扩展诊断

-通过FDT/DTM进行出色的配置和诊断

-所有部件的g3涂层

-简化维护与自动诊断

-继电器输出更高的开关功率

-输出可配置为NO或NC触点

-输出/母线与输出/电源之间的电气隔离

—通道到通道的电气隔离

-可配置为4 x转换触点

—可配置为6个NO接点

类别

采购产品»控制系统产品»I/O产品»S900 I/O»S900 I/O -模块»DO930N继电器输出»DO930N继电器输出

产品»控制系统»800xA»I/O»S900 I/O»I/O模块

采购产品零件与服务»控制系统»800xA»I/O»S900 I/O»I/O模块

额外的信息

介质描述:有4个常开触点和2个转换触点。

产品类型:I-O_Module

订购

商品编码:853890—仅适用于或主要适用于品目85.35、85.36或85.37的设备的部件。——其他

关税税号:85389099

维

产品净深度/长度:104毫米

产品净高:20mm

产品净宽:104毫米

产品净重:0.17 kg

技术

渠道类型:

输出通道数:4

环境

RoHS状态:符合欧盟指令2011/65/EU

电子废弃物类别:5。小型设备(外形尺寸不超过50cm)

电池个数:0

SCIP:8e890a73- b80 -4d1b-82f1-ffb8bba1bd36德国(DE)

DO930N 4个通道继电器输出  输出可配置为NO或NC触点

3 bds014114

General information

Product Number :3 bds014114

ABB model :DO930N

Description :DO930N Relay Output (RO6)

Long description: Remote S900 I/O systems can be installed in non-hazardous areas or directly in Zone 1 or Zone 2 hazardous areas, depending on the system variant chosen.

The S900 I/O communicates with the control system level using the PROFIBUS DP standard.

The I/O system can be installed directly on site, thus reducing the cost of mixing and cabling.

The system is robust, fault-tolerant and easy to maintain.

The integrated disconnect mechanism allows for replacement during operation, which means that there is no need to interrupt the voltage once to exchange the power supply unit.

S900 I/O N. Install in a safe (= no danger) area.

DO930N relay output (RO6), relay output higher switching power.

- Redundancy (power and communications)

- Hot Configuration in Run

- Hot swap function

- Extended diagnostics

- Excellent configuration and diagnostics via FDT/DTM

- All parts are g3 coated

- Simplified maintenance and automatic diagnosis

- Relay outputs higher switching power

- Output can be configured as NO or NC contact

- Electrical isolation between output/bus and output/power

- Channel to channel electrical isolation

- Configurable for 4 x conversion contacts

- You can configure six NO contacts

category

Products » Control System Products »I/O Products »S900 I/O»S900 I/ O-Modules »DO930N Relay Output »DO930N Relay Output

Products » Control System »800xA»I/O»S900 I/O»I/O Module

Parts and Services » Control Systems »800xA»I/O»S900 I/O»I/O Modules

Additional information

Medium description: There are 4 normally open contacts and 2 transition contacts.

Product type :I-O_Module

order

Commodity Code :853890 - applies only to or mainly to parts of equipment of heading 85.35, 85.36 or 85.37. -- Other

Tariff number :85389099

d

Product net depth/length :104 mm

Product height :20mm

Product width :104 mm

Net weight: 0.17kg

technology

Channel type:

Number of output channels :4

environment

RoHS status: In compliance with EU Directive 2011/65/EU

E-waste category :5. Small equipment (no more than 50cm in overall size)

Number of batteries :0

SCIP: 8e890a73-b80-4d1b-82f1-ffb8bba1bd36 Germany (DE)
