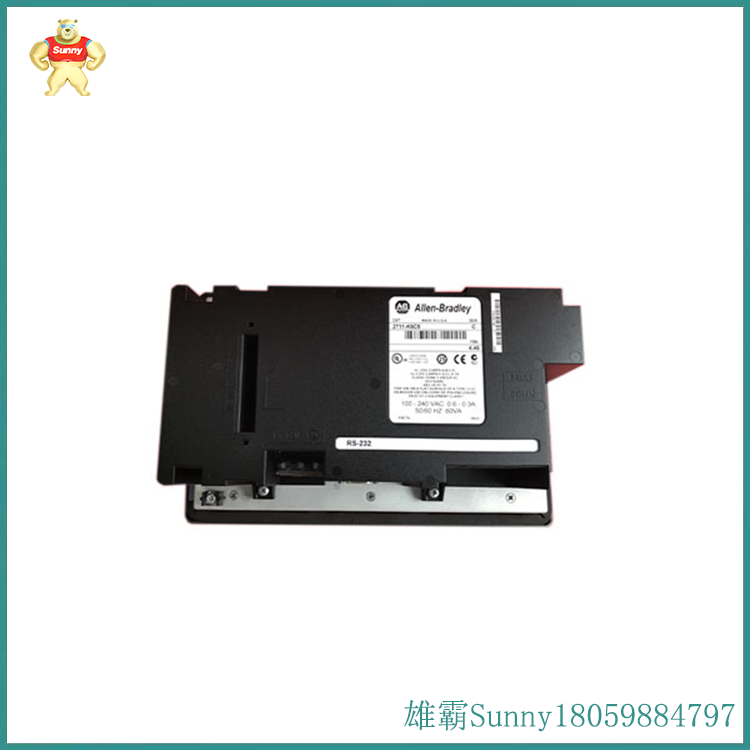

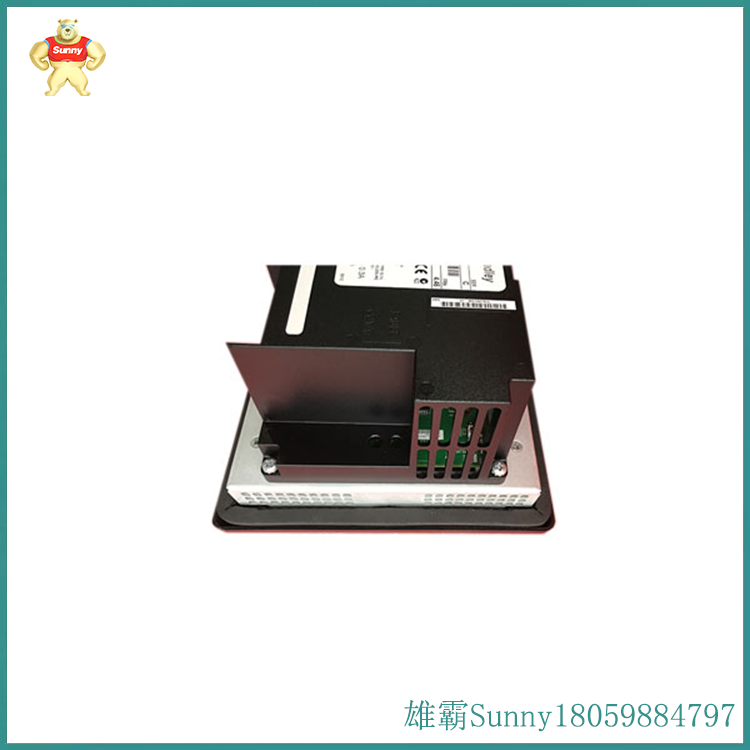

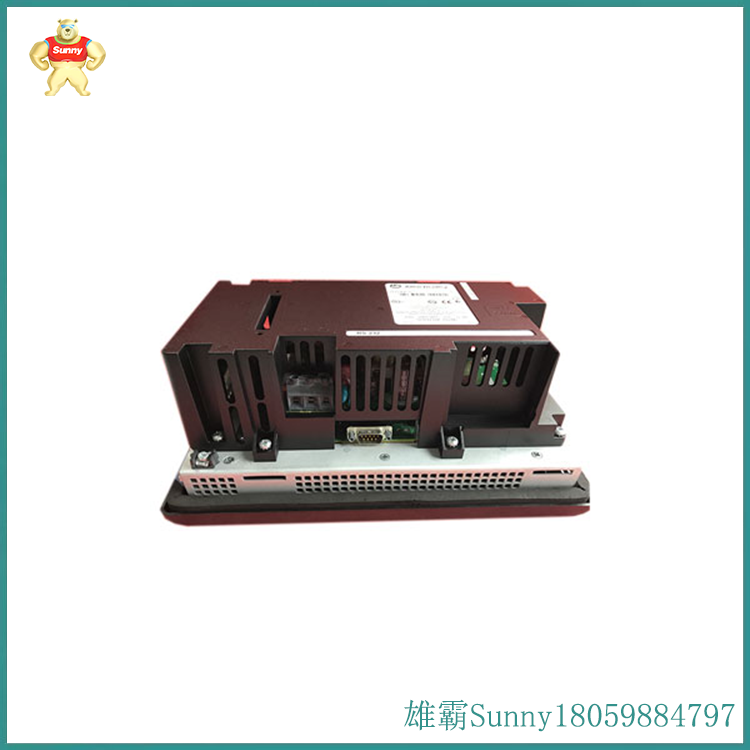

2711-K6C5 HMI 或人机界面终端

已停产的 Allen Bradley PanelView 600 2711-K6C5L1 是一款操作终端，使用户能够与机器连接。该人机界面 （HMI） 具有 5 英寸彩色显示屏。
用户能够使用键盘控制HMI输入信息和数据。本机使用 18-32 VDC 电源供电。本机具有 240 KB 非易失性存储器和 190 KB 运行时存储器。
该HMI的显示屏安装了可现场更换的背光。适当的更换单元是 2711-NL3。
大约发货重量和尺寸为 6 磅和 14 x 11 x 8 英寸。RS-232（DH-485协议）终端使用DH-500协议连接到MicroLogix和SLC 485控制器。点对点配置对高优先级数据使用单独的连接。他们还可以使用AIC+模块连接到DH-485网络。
他的操作员符合 NEMA 4X 标准，如果安装到具有相同额定值的外壳上，则被批准用于 1 类 2 分区操作。它拥有 UL、cUL/CSA 和 CE 认证机构的认证，同时符合不同的要求，包括排放（A 类：工业 EN50081-2：1993，可编程控制器设备要求和测试 EN61131-2：1995，低电压指令（EN61131-1 的安全部分），UL1604 1 类，2 区，A、B、C、D、T4 组、CSA 22.2，第 213 类 1、 第2区，A，B，C，D，T4组等。
2711-K6C5L1 具有 5 英寸彩色显示屏，可用于实现带有颜色编码信息的静态图形和动画。此外，操作员能够通过嵌入式键盘组件控制过程或机器，该组件由十 （10） 个功能键、数字键和导航键组成。该器件具有相当于 RAM 的内部存储器分配，相当于 170KB 和 240KB 非易失性存储器。

The discontinued Allen Bradley PanelView 600 2711-K6C5L1 is an operating terminal that allows users to connect to the machine. This human-machine interface (HMI) has a 5-inch color display screen.

Users can use the keyboard to control HMI input information and data. This machine is powered by an 18-32 VDC power supply. This machine has 240 KB of non-volatile memory and 190 KB of runtime memory.

The HMI's display screen is equipped with a field replaceable backlight. The appropriate replacement unit is 2711-NL3.

The approximate shipping weight and dimensions are 6 pounds and 14 x 11 x 8 inches. The RS-232 (DH-485 protocol) terminal connects to MicroLogix and SLC 485 controllers using the DH-500 protocol. Point to point configuration uses separate connections for high priority data. They can also connect to the DH-485 network using AIC+modules.

His operator meets the NEMA 4X standard and is approved for Class 1, Division 2 operation if installed on an enclosure with the same rating. It has certification from UL, cUL/CSA, and CE certification agencies, while meeting different requirements, including emissions (Class A: Industrial EN50081-2:1993, Programmable Controller Equipment Requirements and Testing EN61131-2:1995, Low Voltage Directive (safety part of EN61131-1), UL1604 Class 1, Zone 2, Groups A, B, C, D, T4, CSA 22.2, Class 213, Zone 1, Zone 2, Groups A, B, C, D, T4, etc.

The 2711-K6C5L1 has a 5-inch color display screen, which can be used to achieve static graphics and animations with color encoded information. In addition, operators can control processes or machines through embedded keyboard components, which consist of ten (10) function keys, numeric keys, and navigation keys. This device has an internal memory allocation equivalent to RAM, equivalent to 170KB and 240KB of nonvolatile memory.
