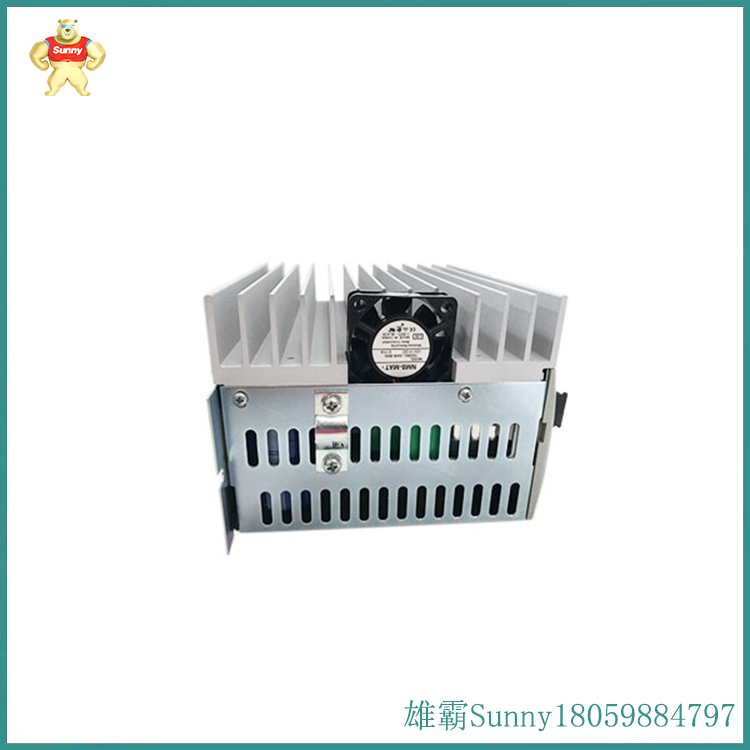

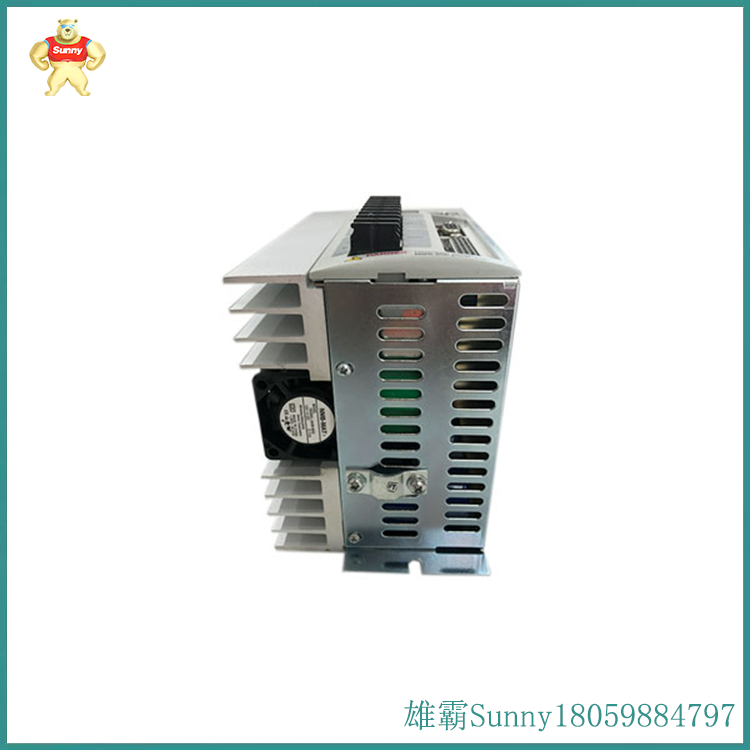

2098-DSD-020X 数字伺服驱动器

2098-DSD-020X-DN 是 Ultra 3000 运动控制组件产品系列中的艾伦-布拉德利数字伺服驱动器 （DSD）。该驱动器主要用于与伺服电机（如Allen-Bradley的Kinetix伺服电机系列）连接，以实现对连接负载的运动和位置控制。2098-DSD-020X-DN 接受来自编码器（如艾伦-布拉德利正弦/余弦）的反馈位置数据，以及来自 Bulletin 842HR、844D、847H 和 847T 的增量式外部编码器。2098-DSD-020X-DN 产品可在 120VAC / 240 VAC 的输入电源电压、1 相、50-60 Hz 和 18 A 的输入电流下工作。该伺服驱动器提供 120 / 240 VAC 的输出电压、3 相、0-400 Hz 的可编程频率范围、10 安培的最大连续输出电流和 30 安培的最大峰值输出电流。它在 115 VAC 输入时产生 115 kW 的连续输出功率，在 230 VAC 输入时产生 2.0 kW 的连续输出功率。2098-DSD-020X-DN 具有集成的 DeviceNet 通信接口，允许驱动器直接与支持 DeviceNet 的控制器通信，例如具有适当 DeviceNet 扫描仪功能的 Allen-Bradley 的 SLC 和 Logix 控制器。这使驾驶员能够以高速通信执行数据交换，并覆盖更长的距离。除了集成通信接口外，2098-DSD-020X-DN 还具有内置索引功能。通过分度功能，预配置的伺服电机运动可以存储在伺服驱动器的内存中，使用户能够为特定负载或产品类型选择预定义的分度曲线。这些运动包括加速度、速度减速、斜坡上升、斜坡下降、位置数据和其他参数。

2098-DSD-020X-DN is the Allen Bradley Digital Servo Driver (DSD) in the Ultra 3000 motion control component product series. This driver is mainly used for connecting to servo motors (such as Allen Bradley's Kinetix servo motor series) to achieve motion and position control of connected loads. 2098-DSD-020X-DN accepts feedback position data from encoders such as Allen Bradley sine/cosine, as well as incremental external encoders from Bulletin 842HR, 844D, 847H, and 847T. The 2098-DSD-020X-DN product can operate at input power voltages of 120VAC/240 VAC, 1-phase, 50-60 Hz, and 18 A input currents. This servo driver provides an output voltage of 120/240 VAC, a 3-phase, programmable frequency range of 0-400 Hz, a maximum continuous output current of 10 amperes, and a maximum peak output current of 30 amperes. It generates a continuous output power of 115 kW at 115 VAC input and 2.0 kW at 230 VAC input. The 2098-DSD-020X-DN has an integrated DeviceNet communication interface that allows the driver to communicate directly with controllers that support DeviceNet, such as Allen Bradley's SLC and Logix controllers with appropriate DeviceNet scanner functionality. This enables drivers to perform data exchange at high speed communication and cover longer distances. In addition to the integrated communication interface, 2098-DSD-020X-DN also has built-in indexing function. Through the indexing function, pre configured servo motor movements can be stored in the memory of the servo driver, allowing users to select predefined indexing curves for specific loads or product types. These movements include acceleration, velocity deceleration, slope ascent, slope descent, position data, and other parameters.
