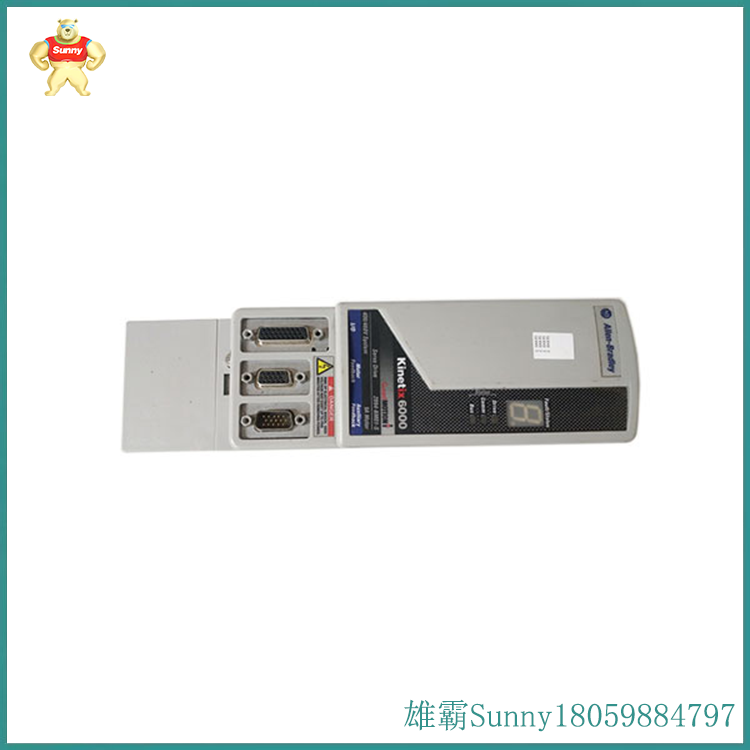

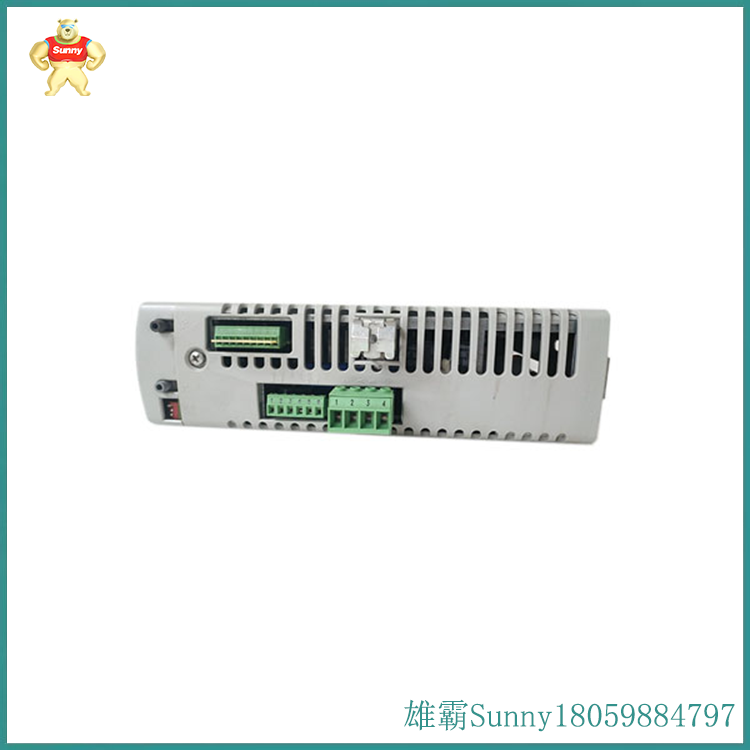

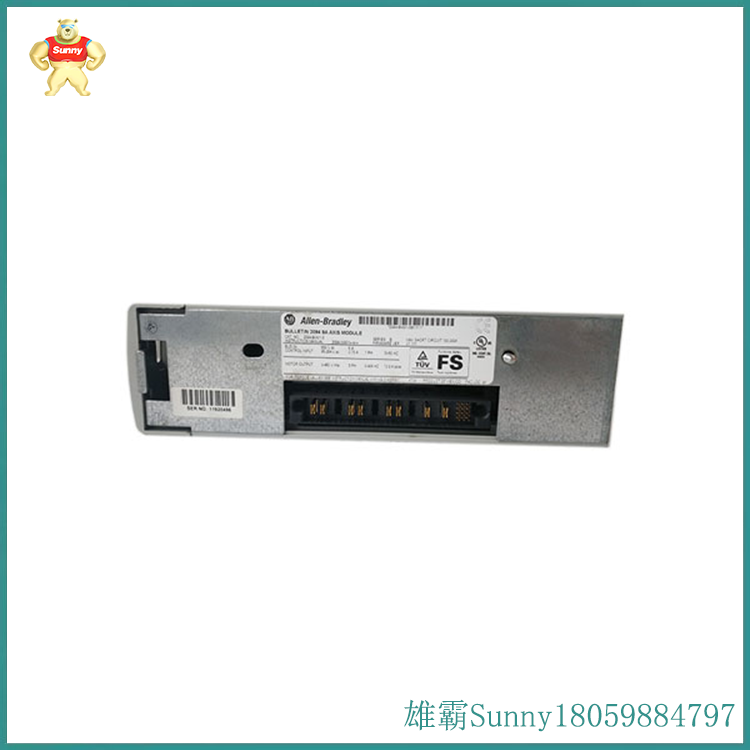

2094-BM01-S 轴模块

Kinetix 6000 多轴驱动器 2094-BM01-S 是一个轴模块，可通过反馈电缆直接连接到受控设备。该轴模块与集成轴模块、控制模块、分流模块和构成 Kinetix Drive 运动控制系统的其他基本组件一起安装在电源轨上。

Kinetix驱动器为用户提供了对电机进行同步运动控制的能力，通常在制造业的机器中。该驱动系统提供精确和同步的控制，使电机和兼容的运动设备作为一个单元运行。

2094-BM01-S 是一款 400VAC 级轴模块，A 系列的连续电流为 6.1 A，峰值电流为 9.2A，B 系列和 C 系列驱动器的峰值电流为 15.3 A，连续输出功率为 3.9 kW。它具有 98% 的效率，对称的短路电流额定值为 200，000 A （rms）。它具有集成分流器，连续功率为 50W，峰值功率为 5.6 kW。该模块的内部分流电阻器的电阻值为 115 欧姆。

模块的工作温度要求为0...50 °C （32...122 °F），相对湿度为 5...95% 无冷凝。它也可以在 1000 米（3281 英尺）的高度无降额和 3000 米（9843 英尺）的降额功能下运行。模块可接受的振动范围为5...55 Hz @ 0.35 毫米（0.014 英寸）双振幅，连续位移;55...500 Hz @ 2.0 g 峰值恒定加速度，而冲击额定值为 15 g，在 11 ms 半正弦脉冲内。

The Kinetix 6000 multi axis driver 2094-BM01-S is an axis module that can be directly connected to a controlled device through a feedback cable. The axis module is installed on the power rail along with the integrated axis module, control module, splitter module, and other basic components that make up the Kinetix Drive motion control system.

Kinetix drives provide users with the ability to synchronize motor motion control, typically in manufacturing machines. This drive system provides precise and synchronous control, allowing the motor and compatible motion devices to operate as a unit.

2094-BM01-S is a 400VAC level shaft module, with a continuous current of 6.1 A and a peak current of 9.2 A for the A series, and a peak current of 15.3 A and a continuous output power of 3.9 kW for the B and C series drivers. It has a 98% efficiency and a symmetrical short-circuit current rating of 200000 A (rms). It has an integrated splitter with a continuous power of 50W and a peak power of 5.6 kW. The resistance value of the internal shunt resistor of this module is 115 ohms.

The operating temperature of the module is required to be 0... 50 ° C (32... 122 ° F), and the relative humidity is 5... 95% without condensation. It can also operate without derating at altitudes of 1000 meters (3281 feet) and with derating at altitudes of 3000 meters (9843 feet). The acceptable vibration range of the module is 5... 55 Hz @ 0.35 mm (0.014 inches) dual amplitude, continuous displacement; 55... 500 Hz @ 2.0 g peak constant acceleration, with an impact rating of 15 g within a half sine pulse of 11 ms.
