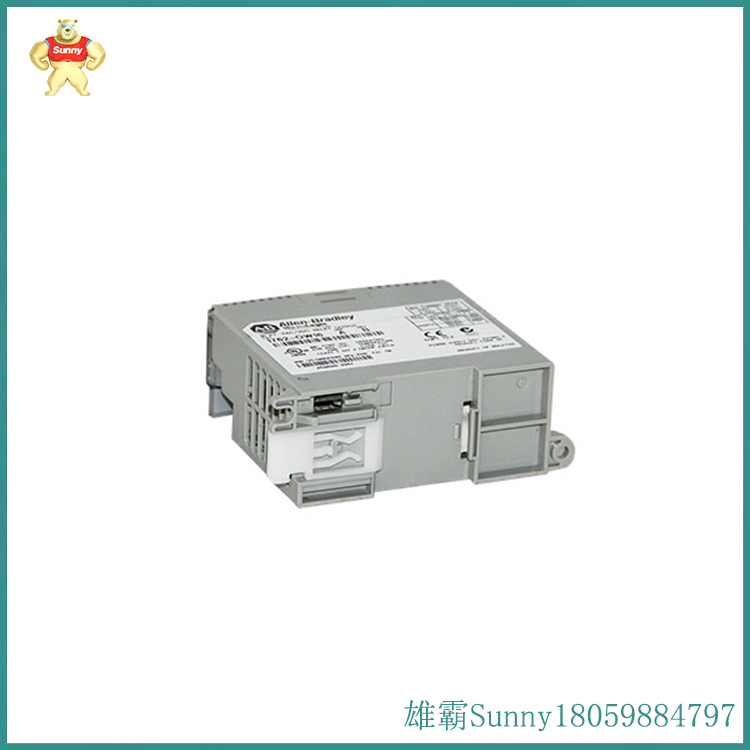

1762-OW16 MicroLogix 扩展模块

1762-OW16 是一款 MicroLogix 继电器输出扩展模块。该模块用于增强 MicroLogix 1100、1200 和 1400 可编程逻辑控制器 （PLC） 的输出能力。它兼容用于电气负载的通电和断电。

该模块具有十六 （16） 个继电器触点输出，可在 24-125VDC 和 120-240 VAC 电压范围内工作。对于ON至OFF和OFF至ON转换，每个输出通道的信号延迟时间为10 ms。模块的每个点的额定连续电流为 2.5 A，每个公共点的连续电流为 8A，每个模块的连续电流为 16A。1762-OW16 有两 （2） 个输出组，每个组由八 （8） 个通道组成。组 0 由输出 0-7 组成，而组 1 由输出 8-15 组成。

建议在感性负载上安装浪涌抑制器。该浪涌抑制器可以为感性负载的高浪涌电流提供保护，从而有助于延长模块的使用寿命。

与 MixroLogix 1100 控制器一起使用时，最多可以安装四 （4） 个此模块的实例。如果与 MicroLogix 1200 一起使用，则最多支持六 （6） 个模块，而与 MicroLogix 7 一起使用时允许使用七 （1500） 个模块。

模块的物理尺寸为 90 x 40.4 x 87 毫米（3.54 x 1.59 x 3.43 英寸）包括安装片在内的高度为 110 毫米（4.33 英寸）。安装取决于基本控制器。作为 MicroLogix 1100 / 1200 和 1400 控制器的标准配置，该模块支持直接面板安装的 DIN 导轨。

1762-OW16 is a MicroLogix relay output expansion module. This module is used to enhance the output capability of MicroLogix 1100, 1200, and 1400 programmable logic controllers (PLCs). It is compatible for powering on and powering off electrical loads.

This module has sixteen (16) relay contact outputs and can operate in the voltage range of 24-125VDC and 120-240 VAC. For ON to OFF and OFF to ON conversions, the signal delay time for each output channel is 10 ms. The rated continuous current of each point of the module is 2.5 A, the continuous current of each common point is 8 A, and the continuous current of each module is 16 A. 1762-OW16 has two (2) output groups, each consisting of eight (8) channels. Group 0 consists of outputs 0-7, while Group 1 consists of outputs 8-15.

It is recommended to install surge suppressors on inductive loads. This surge suppressor can provide protection against high surge currents of inductive loads, thereby helping to extend the service life of the module.

When used with the MixroLogix 1100 controller, a maximum of four (4) instances of this module can be installed. If used with MicroLogix 1200, a maximum of six (6) modules are supported, while seven (1500) modules are allowed when used with MicroLogix 7.

The physical dimensions of the module are 90 x 40.4 x 87 millimeters (3.54 x 1.59 x 3.43 inches), and the height including the mounting plate is 110 millimeters (4.33 inches). Installation depends on the basic controller. As a standard configuration for MicroLogix 1100/1200 and 1400 controllers, this module supports direct panel mounted DIN rails.
