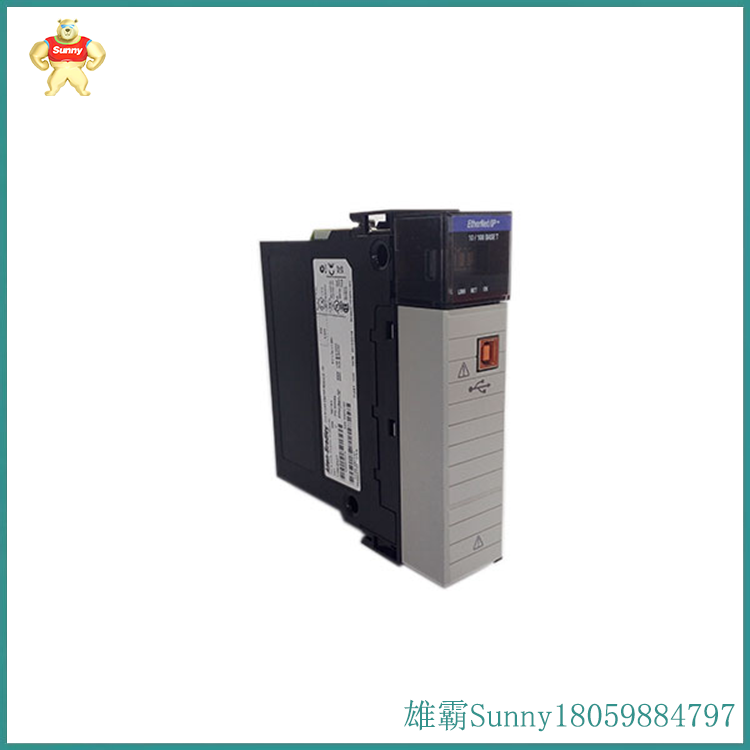

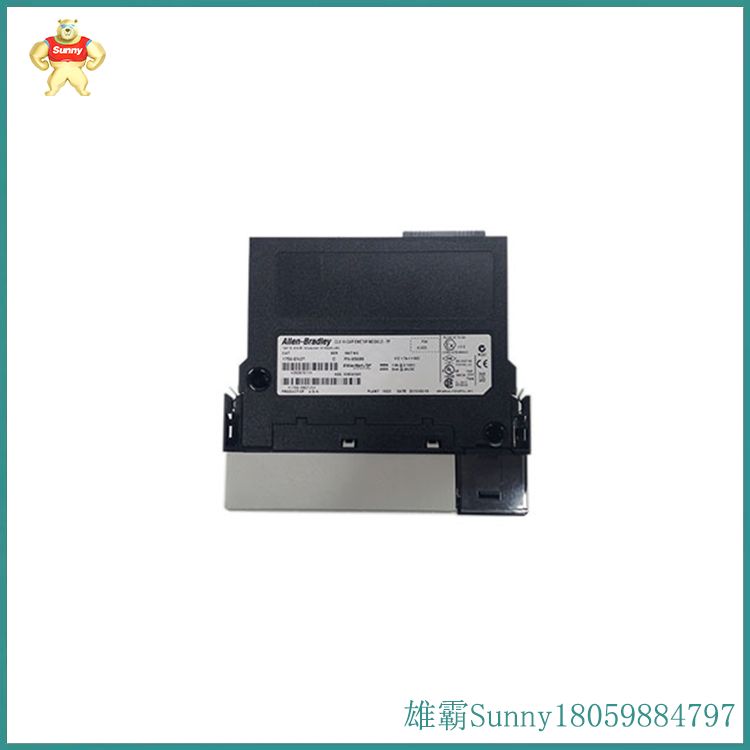

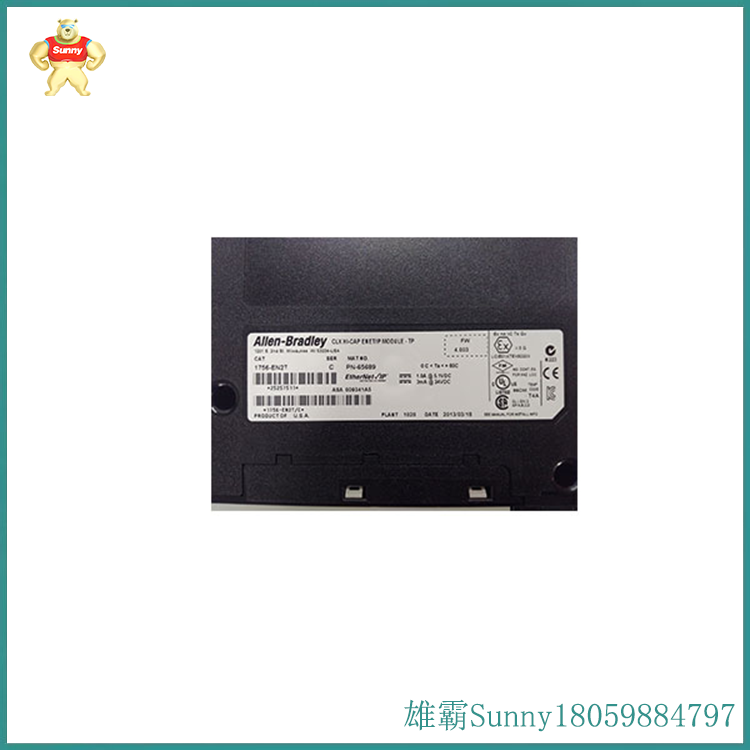

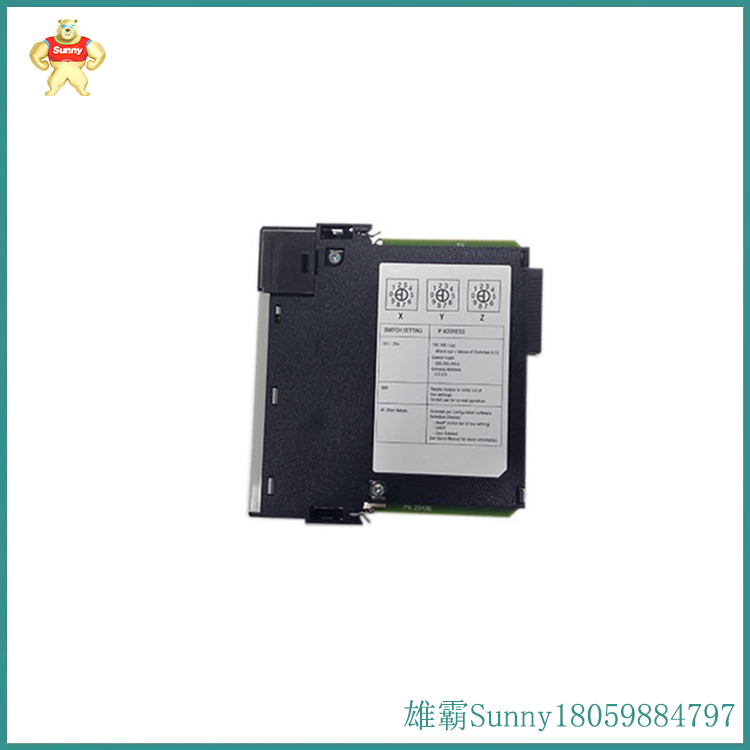

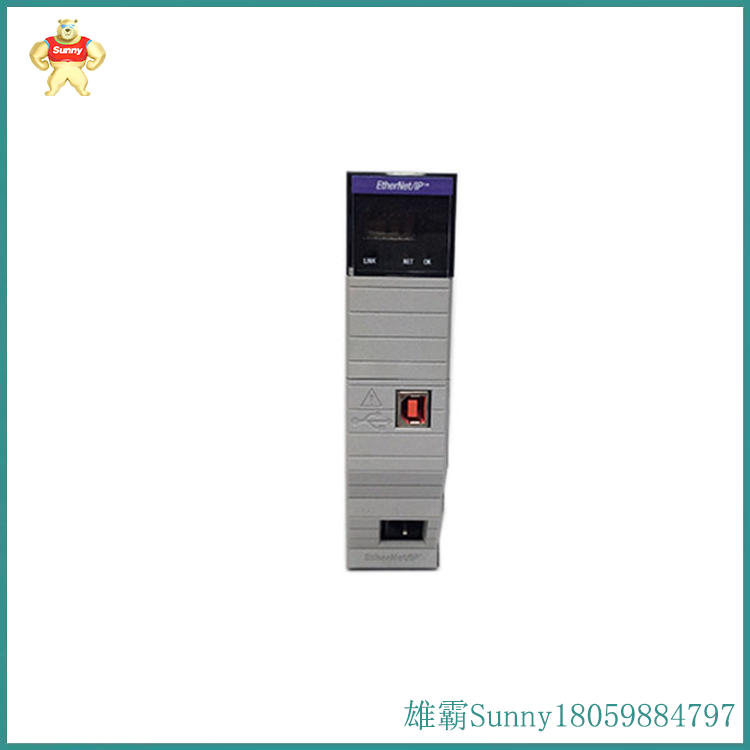

1756-EN2T 通信模块

Allen-Bradley 1756-EN2T是ControlLogix通信模块系列的一部分。它是一个EtherNet/IP（以太网工业协议）接口通信模块。它支持常规消息传递、实时 I/O 消息传递以及实时控制、时间同步和运动等应用程序的信息交换。1756-EN2T 还具有 CIP 安全标准，允许同时传输安全和控制数据以及诊断信息。它使用先进的通信芯片和物理介质。

1756-EN2T 支持 10 至 100 Mbps 以太网/IP 通信速率，并使用双绞线铜缆介质。它支持 256 个 Logix 和 128 个 TCP/IP 通信连接。它最多可以支持 8 个轴，用于以太网/IP 网络上的集成运动，并在 1.5 伏直流电下消耗 1 A 电流。它的最大功耗为 5.1 瓦，热耗散为 17.4 BTU/小时。它可以安装在 ControlLogix 机箱的任何插槽中。对于接线，它使用非屏蔽 RJ45、5 类双绞线电缆连接器与控制器连接。要操作以太网/IP 网络，需要 IP 地址、子网掩码、网关等参数。必须定义。1756-EN2T 桥接器具有多种功能，例如为消息传递、分布式 I/O 和标签提供支持。它将消息封装在标准 TCP/IP 协议中。ControlNet 和 DeviceNet 网络协议允许它共享一个公共应用层。它不需要任何调度或路由表来存储信息。其他功能包括保护模式、电子键控、设备级环网和并行冗余协议网络支持。

1756-EN2T 是支持以太网 I/P 协议的 ControlLogix 通信适配器。此模块是单插槽模块，可以安装到 ControlLogix 机箱的任何插槽。它具有一 （1） 个 RJ45 端口，用于与以太网网络连接。

Allen Bradley 1756-EN2T is part of the ControlLogix communication module family. It is an EtherNet/IP (Ethernet Industrial Protocol) interface communication module. It supports regular messaging, real-time I/O messaging, and information exchange for applications such as real-time control, time synchronization, and motion. The 1756-EN2T also has the CIP security standard, allowing for the simultaneous transmission of security and control data as well as diagnostic information. It uses advanced communication chips and physical media.

The 1756-EN2T supports Ethernet/IP communication rates of 10 to 100 Mbps and uses twisted pair copper cable media. It supports 256 Logix and 128 TCP/IP communication connections. It can support up to 8 axes for integrated motion on Ethernet/IP networks and consumes 1 A of current at 1.5 V DC. Its maximum power consumption is 5.1 watts and thermal dissipation is 17.4 BTU/hour. It can be installed in any slot of the ControlLogix chassis. For wiring, it uses unshielded RJ45, Category 5 twisted pair cable connectors to connect to the controller. To operate an Ethernet/IP network, you need IP address, subnet mask, gateway and other parameters. Must be defined. The 1756-EN2T bridge has multiple functions, such as providing support for messaging, distributed I/O, and labeling. It encapsulates messages in the standard TCP/IP protocol. The ControlNet and DeviceNet network protocols allow it to share a common application layer. It does not require any scheduling or routing tables to store information. Other functions include protected mode, electronic keying, equipment level ring network and parallel redundancy protocol network support.

1756-EN2T is a ControlLogix communication adapter that supports the Ethernet I/P protocol. This module is a single slot module that can be installed in any slot of the ControlLogix chassis. It has one (1) RJ45 port for connecting to an Ethernet network.
