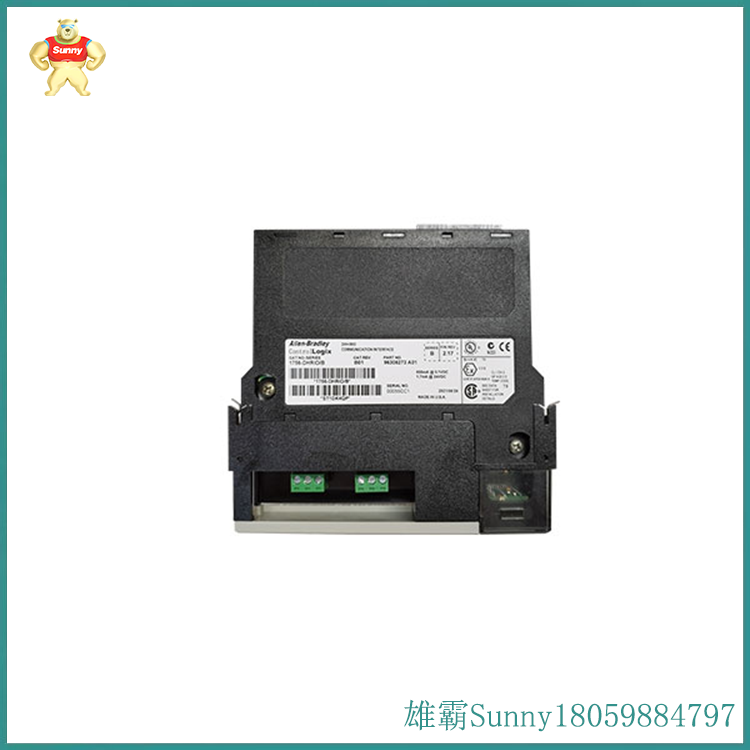

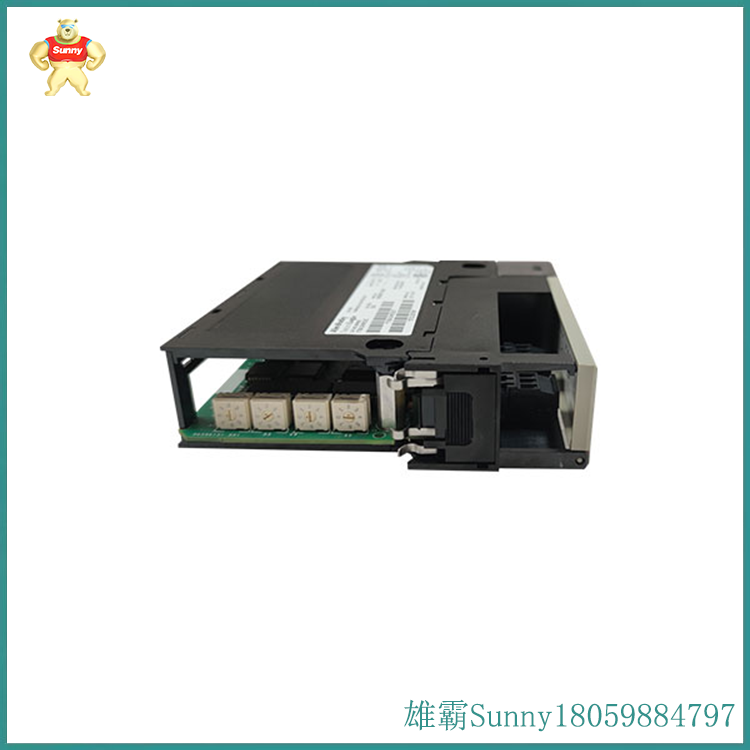

1756-DHRIO 通信模块

Allen-Bradley 1756-DHRIO 是一款 ControlLogix Data Highway Plus/Remote I/O 通信接口模块。该模块有两 （2） 个通道，支持每秒 57.6 KB、每秒 115.2 KB 和每秒 230.4 KB 的通信速率，具体取决于电缆长度。它最多可以通过三个机箱和四个通信网络传输消息。使用此模块，可以在PLC，SLC和ControlLogix控制器等设备之间进行信息交换，甚至可以在不同的网络上进行。

它支持以下类型的通信：远程 I/O、控制和信息协议 （CIP） 消息传递以及设备之间的数据高速增强型 （DH+） 消息传递。它最多可以有 32 个 Logix 连接，远程 I/O 链路可以连接到远程 I/O 设备以及其他智能设备。当连接到远程 I/O 网络时，它可以充当适配器或扫描仪，即使在没有消息指令的情况下也能传输模拟、数字、块和专业数据。在安装 1756-DHRIO 模块之前，您需要为每个通道的网络类型交换机进行编程，并安装和连接 ControlLogix 电源和机箱。您可以在同一机箱中安装任意数量的模块，但这取决于您的可用电源。请注意，即使施加机箱电源，也可以安装或拆卸模块，但您需要遵守安全预防措施，特别是该区域是无害的并且电源已断开，以防止电弧导致模块和连接器的触点过度磨损。确保放电电位静电，因为模块对静电放电敏感。

RIO 和 DH+ 协议使用相同的电缆类型。推荐的电缆是百通 89463 双轴电缆，额定温度为 0 °C （52 °F） 的 20.200 mm² （392 AWG）。适用的备用连接器是凤凰端子，部件号 MVSTBR2.5/3-ST BK AU。

Allen Bradley 1756-DHRIO is a ControlLogix Data Highway Plus/Remote I/O communication interface module. This module has two (2) channels and supports communication rates of 57.6 KB per second, 115.2 KB per second, and 230.4 KB per second, depending on the cable length. It can transmit messages through up to three chassis and four communication networks. Using this module, information exchange can be carried out between devices such as PLCs, SLCs, and ControlLogix controllers, and even on different networks.

It supports the following types of communication: remote I/O, control and information protocol (CIP) messaging, and data high-speed enhanced (DH+) messaging between devices. It can have up to 32 Logix connections, and remote I/O links can be connected to remote I/O devices and other intelligent devices. When connected to a remote I/O network, it can act as an adapter or scanner, transmitting analog, digital, block, and professional data even without message instructions. Before installing the 1756-DHRIO module, you need to program the network type switch for each channel, and install and connect the ControlLogix power supply and chassis. You can install any number of modules in the same chassis, but this depends on your available power supply. Please note that even with chassis power applied, modules can still be installed or removed, but you need to follow safety precautions, especially if the area is harmless and the power supply has been disconnected to prevent excessive wear on the contacts of the modules and connectors caused by arcing. Ensure that the discharge potential is static, as the module is sensitive to electrostatic discharge.

The RIO and DH+protocols use the same cable type. The recommended cable is Baitong 89463 dual axis cable, with a rated temperature of 20.200 mm at 0 ° C (52 ° F) ²  （392 AWG）。 The applicable spare connector is the Phoenix terminal, part number MVSTBR2.5/3-ST BK AU.
