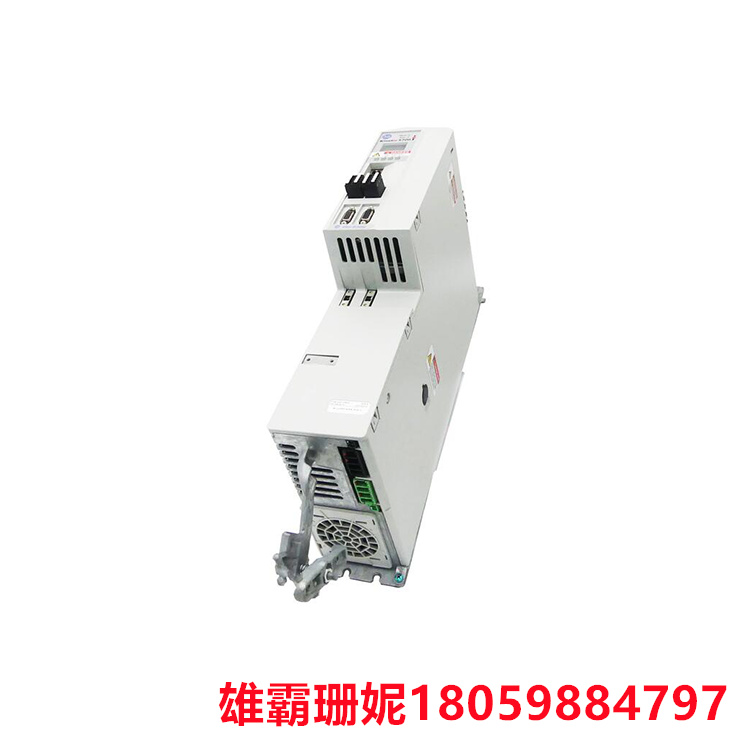

双轴变频器 2198-D057-ERS3  实现对两个轴的高效控制

描述： Allen-Bradley 2198-D057-ERS3 是 Kinetix 以太网 I/P 5700 伺服系统的一部分。该伺服驱动器是一款双轴变频器，在 8V 输入和 0.240 kW @ 15V 输入时具有 9.480 kW 的连续输出功率。它具有 32.5 A 的连续输出电流和 81.3 A 的连续峰值电流。它支持最大 400 Hz 的速度环路、1000 Hz 的电流环路和 4 kHz 的 PWM 频率。

 2198-D057-ERS3双轴逆变器是一种将直流电转换为交流电的电力电子设备，它可以实现对两个轴的独立控制。

 2198-D057-ERS3双轴逆变器的主要功能是将直流电转换为交流电，并对交流电的频率、相位和幅值进行控制。它通常由两个独立的逆变器单元组成，可以分别控制两个轴的运动。

双轴逆变器通常具有以下特点：

1. 高精度： 2198-D057-ERS3可以提供高精度的控制和调节，满足工业自动化的要求。

2. 高效率：可以实现对两个轴的高效控制，提高工业生产的效率。

3. 多功能：可以实现多种控制和调节功能，如速度控制、转矩控制、位置控制等。

4. 易于编程： 2198-D057-ERS3可以通过编程实现各种控制逻辑，方便用户进行系统集成和二次开发。

5. 兼容性强：可以与各种工业自动化设备和系统兼容，如 PLC、DCS 等。

6. 可靠性高： 2198-D057-ERS3采用了先进的电子技术和机械设计，具有良好的可靠性和稳定性。

总之，双轴逆变器是工业自动化控制系统中非常重要的组成部分，它可以提高系统的精度、效率和可靠性，为工业生产提供了重要的支持。

双轴变频器 2198-D057-ERS3  实现对两个轴的高效控制

Description: Allen-Bradley 2198-D057-ERS3 is part of the Kinetix Ethernet I/P 5700 servo system. The servo drive is a two-axis inverter with a continuous output of 9.480 kW at 8V input and 0.240 kW @ 15V input. It has a continuous output current of 32.5A and a continuous peak current of 81.3A. It supports a maximum speed loop of 400 Hz, a current loop of 1000 Hz, and a PWM frequency of 4 kHz.

The 2198-D057-ERS3 two-axis inverter is a power electronic device that converts direct current into alternating current, which can achieve independent control of two axes.

The main function of the 2198-D057-ERS3 dual-axis inverter is to convert direct current into alternating current, and control the frequency, phase and amplitude of alternating current. It usually consists of two independent inverter units that can separately control the movement of the two axes.

Two-axis inverters usually have the following characteristics:

1. High precision: 2198-D057-ERS3 can provide high precision control and adjustment to meet the requirements of industrial automation.

2. High efficiency: It can achieve efficient control of two axes and improve the efficiency of industrial production.

3. Multi-function: can achieve a variety of control and adjustment functions, such as speed control, torque control, position control, etc.

4. Easy to program: 2198-D057-ERS3 can realize various control logic through programming, which is convenient for users to carry out system integration and secondary development.

5. Strong compatibility: It can be compatible with various industrial automation equipment and systems, such as PLC, DCS, etc.

6. High reliability: 2198-D057-ERS3 adopts advanced electronic technology and mechanical design, with good reliability and stability.

In short, the two-axis inverter is a very important part of the industrial automation control system, which can improve the accuracy, efficiency and reliability of the system, and provide important support for industrial production.
