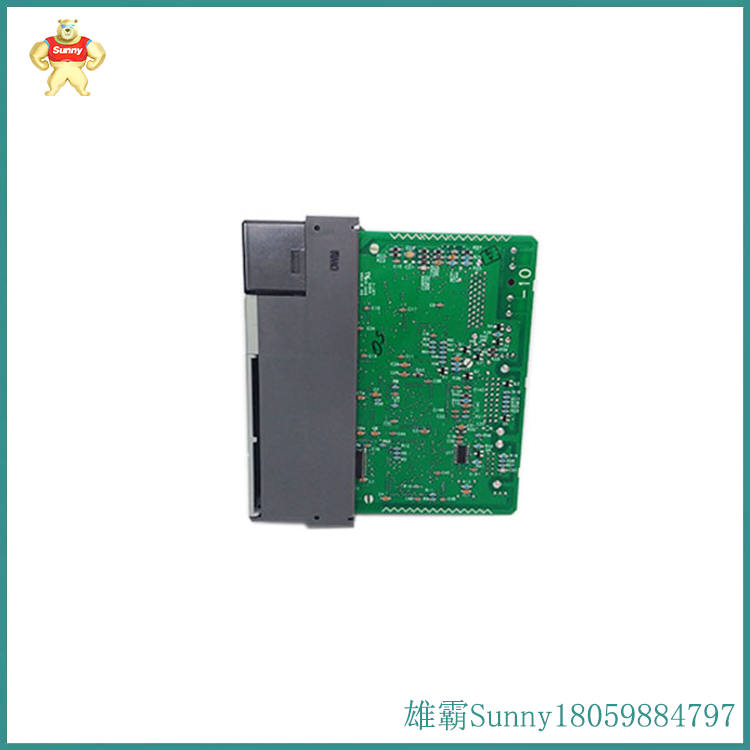

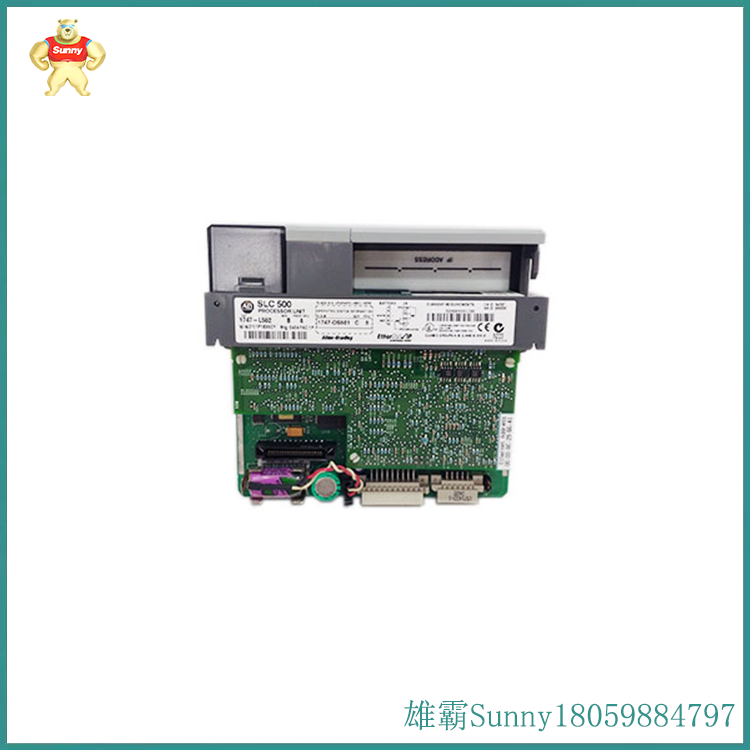

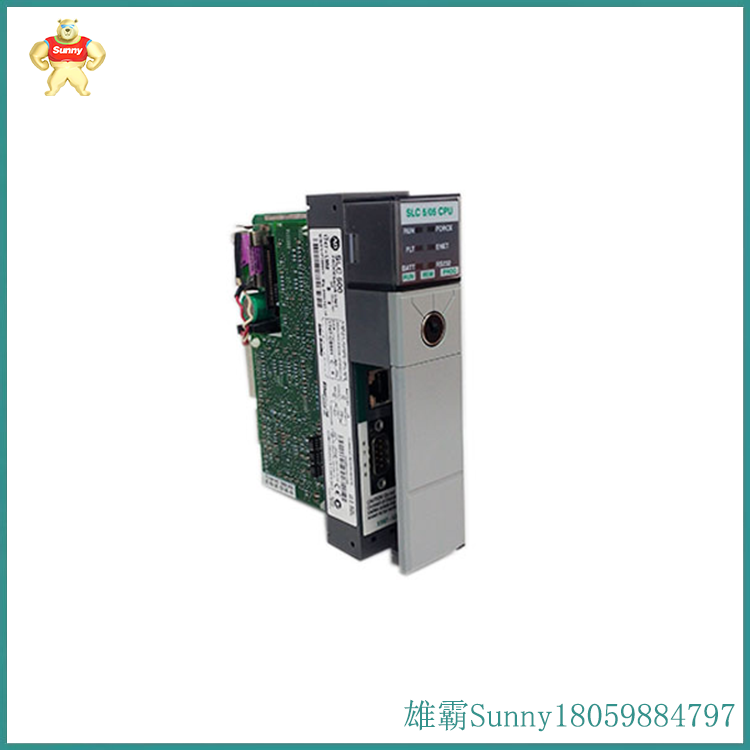

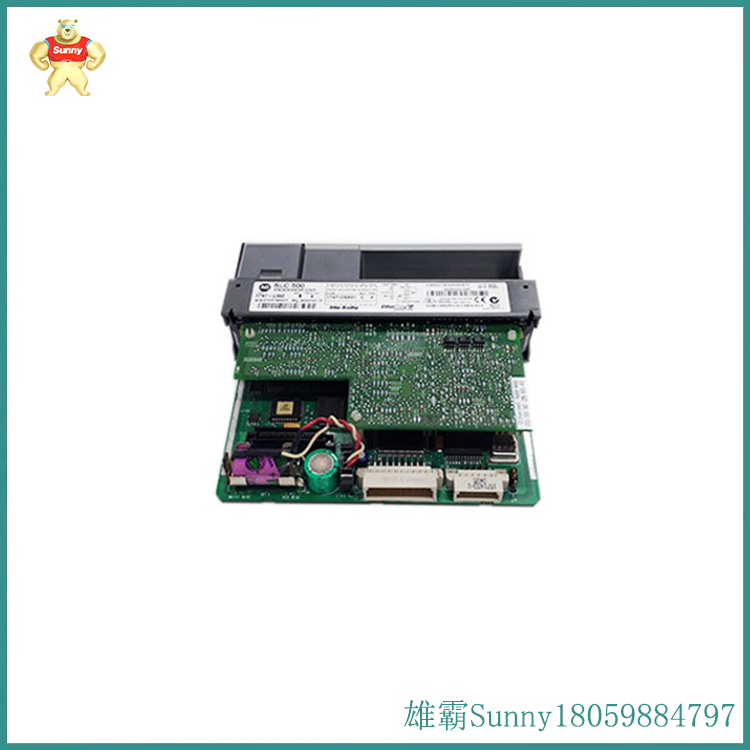

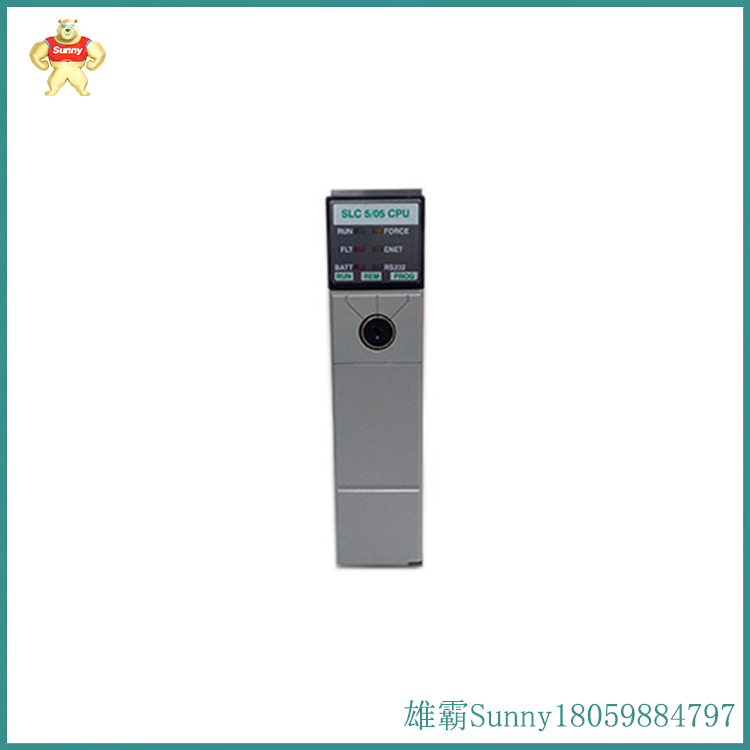

1747-L552处理器

借助嵌入式以太网，这款处理器开箱即可用于垂直集成。

RS232通信端口是一种经典的通信端口，非常适合人机界面(HM)通信，通常安装在安装可编程逻辑控制器(PLC)处理器的同-面板上，因为RS232

的覆盖距离有限。1747-L552的大存储容量具有4096个输入和输出的I0容量,允许处理器控制多个小进程或单个大进程。必须考虑系统关键程度,以正确规划哪些流程可以包含在相同的处理器中。它还支持远程I/O拓扑实现，以允许I/O模块的战略性安装。

该模块的最大用户内存为32K字,其中28K字用于数据或程序, 4K字用于用户数据。对于输入和输出,处理器还有一个绝对最大数量的I/O, 每个都

是4096。它也有-个480分的最高本地模拟。该处理器支持多达-百零七(107)条编程指令，并允许安装多达三(3)个机箱，最多三+(30)个插槽。该

处理器的最大输入电流在5伏DC时为1A，在24伏DC时为0A。它的典型程序扫描时间为0.9毫秒/K, /O扫描时间为0.225毫秒，XIC位执行时间为

0.37秒。根据电源负载，该处理器在断电后的程序扫描保持时间为20毫秒至3秒。它的工作振动为0.015英寸， 峰峰值位移为5至57赫兹，加速度为

2.5G,频率为57至2000赫兹。该处理器还具有30G的工作冲击和5%至95%的非冷凝相对湿度。该处理器的工作温度范围为0至60摄氏度，存储温度

范围为-40至85摄氏度。

With embedded Ethernet, this processor can be used for vertical integration out of the box.

RS232 communication port is a classic communication port that is very suitable for human-machine interface (HM) communication and is usually installed on the same panel as the programmable logic controller (PLC) processor, because RS232

The coverage distance is limited. The large storage capacity of 1747-L552 has an I0 capacity of 4096 inputs and outputs, allowing the processor to control multiple small processes or a single large process. It is necessary to consider the criticality of the system in order to correctly plan which processes can be included in the same processor. It also supports remote I/O topology implementation to allow for strategic installation of I/O modules.

The maximum user memory of this module is 32K words, of which 28K words are used for data or programs, and 4K words are used for user data. For input and output, the processor also has an absolute maximum number of I/Os, each with

It's 4096. It also has a maximum local simulation of 480 points. This processor supports up to one hundred and seven (107) programming instructions and allows installation of up to three (3) chassis, with a maximum of three+(30) slots. The

The maximum input current of the processor is 1A at 5 V DC and 0A at 24 V DC. Its typical program scan time is 0.9 ms/K,/O scan time is 0.225 ms, and XIC bit execution time is

0.37 seconds. According to the power load, the program scan hold time of the processor after power outage is 20 milliseconds to 3 seconds. Its working vibration is 0.015 inches, peak to peak displacement is 5 to 57 Hz, and acceleration is

2.5G, frequency from 57 to 2000 Hz. The processor also has a working shock of 30G and a non condensing relative humidity of 5% to 95%. The operating temperature range of this processor is 0 to 60 degrees Celsius, with storage temperature

The range is -40 to 85 degrees Celsius.
