集成轴模块 2093-AC05-MP5 实现轴的精确位置控制

描述： 2093-AC05-MP5 是一款 Kinetix 2000 集成轴模块 （IAM）。该模块是 230VAC、三相额定 IAM，输入频率范围为 3-47 Hz。该模块的总线输出电压为 63 VDC，总线连续输出功率为 325.3 kW;总线峰值输出功率为 0.6 kW，总线连续输出电流为 0.9 A。它支持 67 Hz 的速度环路带宽和 500 Hz 的电流环路带宽以及 860 kHz 的 PWM 频率。

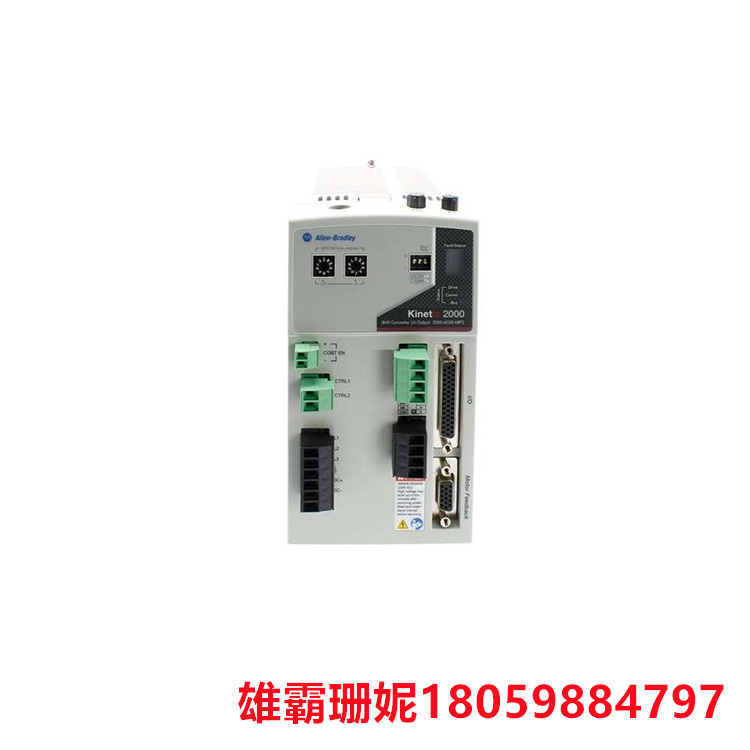

2093-AC05-MP5 前面板安装了多种组件。它有多种端子排，例如接触器使能 （CED） 连接器;控制电源 （CPD） 连接器;主电源 （IPD） 连接器;电机制动 （BC） 连接器;电机功率 （MP） 连接器;I/O 和机器反馈 （IOD/AF） 连接器和电机反馈 （MF） 连接器。它还具有 LED 状态指示灯，特别是驱动器状态 LED、COMM 状态 LED 和总线状态 LED，以及七段故障状态显示。

 2093-AC05-MP5集成轴模块是一种用于控制和监测工业机械轴运动的设备。它通常由一个或多个轴控制器、电机驱动器、编码器和其他相关组件组成。

 2093-AC05-MP5集成轴模块的主要功能是将机械轴的运动控制和监测功能集成到一个模块中，从而简化了系统设计和安装。它可以实现轴的精确位置控制、速度控制、加速度控制和转矩控制等功能，同时还可以监测轴的位置、速度、加速度和转矩等参数。

集成轴模块通常具有以下特点：

1. 高精度： 2093-AC05-MP5可以提供高精度的轴运动控制和监测，满足工业自动化的要求。

2. 多轴控制：可以同时控制多个轴的运动，提高了系统的效率和可靠性。

3. 易于编程： 2093-AC05-MP5可以通过编程实现各种控制逻辑，方便用户进行系统集成和二次开发。

4. 兼容性强：可以与各种工业自动化设备和系统兼容，如 PLC、机器人、自动化生产线等。

5. 可靠性高：采用了先进的电子技术和机械设计，具有良好的可靠性和稳定性。

总之，集成轴模块是工业自动化控制系统中非常重要的组成部分，它可以提高系统的精度、效率和可靠性，为工业生产提供了重要的支持。

集成轴模块 2093-AC05-MP5 实现轴的精确位置控制

Description: The 2093-AC05-MP5 is a Kinetix 2000 Integrated Axis Module (IAM). The module is 230VAC, three-phase rated IAM with an input frequency range of 3-47 Hz. The bus output voltage of the module is 63 VDC, and the bus continuous output power is 325.3 kW. The bus peak output power is 0.6kW, and the bus continuous output current is 0.9A. It supports a speed loop bandwidth of 67 Hz and a current loop bandwidth of 500 Hz as well as a PWM frequency of 860 kHz.

The 2093-AC05-MP5 front panel is equipped with a variety of components. It has a variety of terminal blocks, such as contactor Enable (CED) connectors; Control power supply (CPD) connector; Main power supply (IPD) connector; Motor brake (BC) connector; Motor power (MP) connector; I/O and Machine Feedback (IOD/AF) connectors and Motor feedback (MF) connectors. It also features LED status indicators, especially driver status leds, COMM status leds and bus status leds, as well as a seven-segment fault status display.

The 2093-AC05-MP5 Integrated shaft module is a device for controlling and monitoring the shaft movement of industrial machinery. It usually consists of one or more shaft controllers, motor drivers, encoders, and other related components.

The main function of the 2093-AC05-MP5 Integrated shaft module is to integrate the motion control and monitoring functions of the mechanical shaft into a single module, thus simplifying system design and installation. It can realize the precise position control, speed control, acceleration control and torque control of the shaft, and can also monitor the position, speed, acceleration and torque parameters of the shaft.

Integrated shaft modules usually have the following characteristics:

1. High precision: 2093-AC05-MP5 can provide high-precision shaft motion control and monitoring to meet the requirements of industrial automation.

2. Multi-axis control: the movement of multiple axes can be controlled simultaneously, improving the efficiency and reliability of the system.

3. Easy to program: 2093-AC05-MP5 can realize various control logic through programming, which is convenient for users to carry out system integration and secondary development.

4. Strong compatibility: It can be compatible with various industrial automation equipment and systems, such as PLC, robot, automated production line, etc.

5.High reliability: the use of advanced electronic technology and mechanical design, with good reliability and stability.

In short, the integrated shaft module is a very important part of the industrial automation control system, which can improve the accuracy, efficiency and reliability of the system, and provide important support for industrial production.
