电流/电压输出模块 1756-OF6CI 具有 6 个可用的独立隔离电流输出

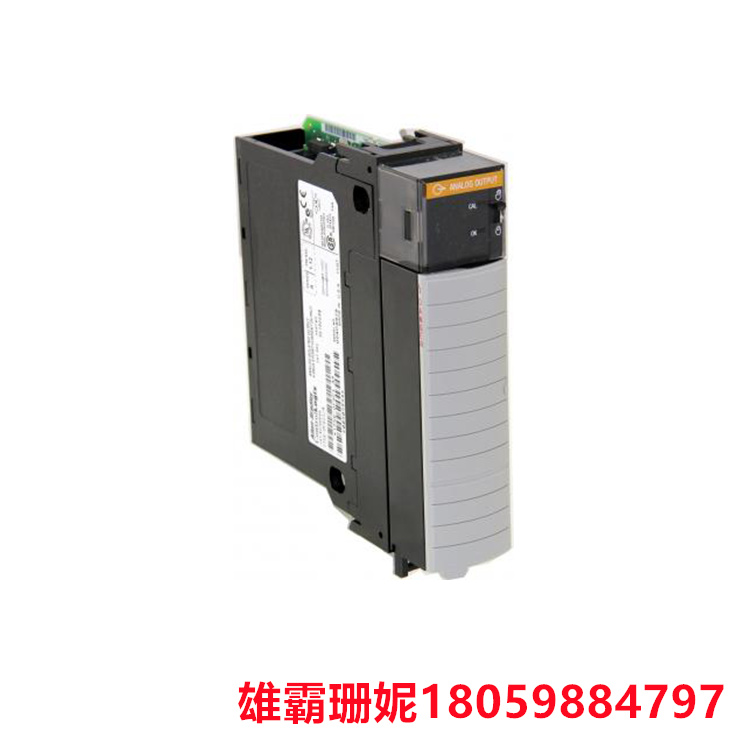

Allen-Bradley 1756-OF6CI 模块是 ControlLogix A 系列通用隔离式模拟电流/电压输出模块。该模块具有 6 个可用的独立隔离电流输出。它还具有 13 位分辨率，电流为 21 毫安 （2.7 μA）。它需要 1756-TBNH 或 1756-TBSH 可拆卸接线端子外壳 （RTB），然后才能安装在接地和安装的机箱中。

它的范围为 0 至 20 毫安，低信号和用户计数为 0 毫安和 -32768 计数，高信号和用户计数为 21.074 毫安，具有 32767 计数。该模块在 5.1V 时的电流消耗为 250 毫安，从 0 到 550 欧姆端接在 OUT 和 RTN 上，551 到 1000 欧姆端接在 OUT 和 ALT 上。在 24V 电压下，其电流消耗为 225 毫安（端接在 OUT 和 RTN 上端接的 0 至 550 欧姆）和 300 毫安（端接在 OUT 和 ALT 上的 551 至 1000 欧姆）。它的总背板功率为 6.7 W（0 至 550 欧姆）和 8.5 W（551 至 1000 欧姆）。该模块的最大功耗为 5.5 W（0 至 550 欧姆负载）和 6.1 W（551 至 1000 欧姆负载）。它没有开路检测功能，但具有 24V 直流过压保护和限制在 21 毫安或更低的短路保护。在 1350V AC 下常规测试 2 s，其连续隔离电压为 250V。

电流/电压输出模块是一种用于将数字信号转换为模拟电流或电压信号的硬件设备。它通常用于工业自动化、仪器仪表、数据采集等领域。

1756-OF6CI 电流/电压输出模块通常包括输入接口、微控制器、数模转换器（DAC）、输出接口等部分。输入接口用于接收数字信号，例如来自微控制器或其他数字设备的控制信号，微控制器用于执行转换算法或规则，DAC 用于将数字信号转换为模拟电流或电压信号，输出接口用于将模拟信号输出到外部设备或系统中。

1756-OF6CI 电流/电压输出模块的优点包括：

1. 1756-OF6CI 实现了数字信号与模拟信号之间的转换：电流/电压输出模块可以将数字信号转换为模拟电流或电压信号，方便与外部设备或系统进行接口。

2. 1756-OF6CI 提高了系统的精度和稳定性：电流/电压输出模块可以通过 DAC 实现高精度的模拟信号输出，提高了系统的精度和稳定性。

3. 提高了系统的可编程性：电流/电压输出模块可以通过编程实现不同的输出信号，提高了系统的可编程性。

常见的电流/电压输出模块包括模拟量输出模块、数字量输出模块等。它们具有不同的特点和应用场景，适用于不同的模拟信号输出需求。

电流/电压输出模块 1756-OF6CI 具有 6 个可用的独立隔离电流输出

The Allen-Bradley 1756-OF6CI module is the ControlLogix A Series universal isolated analog current/voltage output module. The module has 6 available independent isolated current outputs. It also has a 13-bit resolution and a current of 21 mA (2.7 μA). It requires a 1756-TBNH or 1756-TBSH detachable terminal housing (RTB) before it can be installed in a grounded and mounted case.

It has a range of 0 to 20 mah, a low signal and user count of 0 mah and -32,768 counts, and a high signal and user count of 21.074 mah with 32,767 counts. The module has a current consumption of 250 MA at 5.1V and is terminated from 0 to 550 ohms on OUT and RTN, and 551 to 1000 ohms on OUT and ALT. At 24V, its current consumption is 225 mA (0 to 550 ohms terminated at the top of OUT and RTN) and 300 mA (551 to 1000 ohms terminated at OUT and ALT). Its total backplane power is 6.7 W (0 to 550 ohms) and 8.5 W (551 to 1000 ohms). The module has a maximum power consumption of 5.5 W (0 to 550 ohms load) and 6.1 W (551 to 1000 ohms load). It has no open circuit detection, but has 24V DC overvoltage protection and short circuit protection limited to 21 mA or less. The continuous isolation voltage is 250V for a routine test of 2 s at 1350V AC.

A current/voltage output module is a hardware device used to convert a digital signal into an analog current or voltage signal. It is usually used in industrial automation, instrumentation, data acquisition and other fields.

The 1756-OF6CI current/voltage output module usually includes an input interface, a microcontroller, a digital-to-analog converter (DAC), and an output interface. The input interface is used to receive digital signals, such as control signals from a microcontroller or other digital device, the microcontroller is used to execute conversion algorithms or rules, the DAC is used to convert the digital signal to an analog current or voltage signal, and the output interface is used to output the analog signal to an external device or system.

The benefits of the 1756-OF6CI current/voltage output module include:

1. 1756-OF6CI realizes the conversion between digital signals and analog signals: the current/voltage output module can convert digital signals into analog current or voltage signals for easy interface with external devices or systems.

2. 1756-OF6CI improves the accuracy and stability of the system: The current/voltage output module can achieve high-precision analog signal output through DAC, improving the accuracy and stability of the system.

3. Improve the programmability of the system: the current/voltage output module can be programmed to achieve different output signals, improving the programmability of the system.

Common current/voltage output modules include analog output module, digital output module and so on. They have different characteristics and application scenarios, and are suitable for different analog signal output requirements.
