HART模块 1756-IF16H 允许智能现场设备与控制系统进行双向通信

目录 ： 1756-IF16H

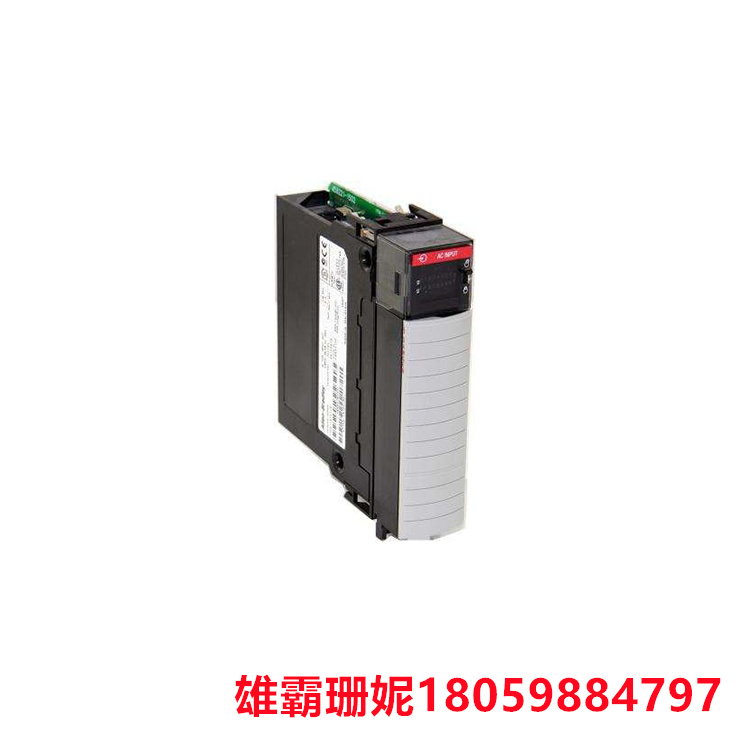

ControlLogix 16 Pt A/I HART模块

 1756-IF16H HART（Highway Addressable Remote Transducer）模块是一种用于实现智能现场设备和控制系统之间通信的硬件组件。HART 协议是一种在模拟信号上叠加数字信号的通信协议，它允许智能现场设备与控制系统进行双向通信。

 1756-IF16H HART 模块通常包括通信接口电路、微控制器、存储器等部分。通信接口电路用于将 HART 信号叠加在模拟信号上，并将数字信号从模拟信号中分离出来，微控制器用于处理 HART 协议，存储器用于存储设备的配置信息和过程参数等数据。

 1756-IF16H HART 模块的优点包括：

1. 实现智能现场设备的双向通信： 1756-IF16H HART 模块可以实现智能现场设备与控制系统之间的双向通信，方便设备的配置和监控。

2. 提高了设备的可维护性： 1756-IF16H HART 模块可以通过 HART 协议获取设备的状态信息和故障信息，提高了设备的可维护性。

3. 节省成本： 1756-IF16H HART 模块可以在现有的模拟信号传输线上实现数字通信，无需额外的通信线路，节省了成本。

常见的 HART 模块包括 HART 调制解调器、HART 通信卡、HART 网关等。它们具有不同的特点和应用场景，适用于不同的智能现场设备和控制系统。

HART模块 1756-IF16H 允许智能现场设备与控制系统进行双向通信

Contents: 1756-IF16H

ControlLogix 16 Pt A/I HART module

The 1756-IF16H HART (Highway Addressable Remote Transducer) module is a hardware component for enabling communication between intelligent field devices and control systems. HART protocol is a kind of communication protocol which superimposes digital signal on analog signal, it allows the intelligent field equipment to communicate with the control system bidirectional.

The 1756-IF16H HART module usually includes communication interface circuit, microcontroller, memory and other parts. The communication interface circuit is used to superimpose the HART signal on the analog signal, and separate the digital signal from the analog signal, the microcontroller is used to process the HART protocol, and the memory is used to store the configuration information and process parameters of the device.

Benefits of the 1756-IF16H HART module include:

1. Realize two-way communication of intelligent field equipment: The 1756-IF16H HART module can realize two-way communication between intelligent field equipment and control system, which is convenient for equipment configuration and monitoring.

2. Improve the maintainability of the equipment: The 1756-IF16H HART module can obtain the status information and fault information of the equipment through the HART protocol, which improves the maintainability of the equipment.

3. Cost savings: The 1756-IF16H HART module can achieve digital communication on the existing analog signal transmission line, without additional communication lines, saving costs.

Common HART modules include HART modem, HART communication card, HART gateway and so on. They have different characteristics and application scenarios, and are suitable for different intelligent field equipment and control systems.
