变频驱动器 25B-D010N104 调整电机的转速来实现不同的温度控制

25B-D010N104型

修订版：Ser A

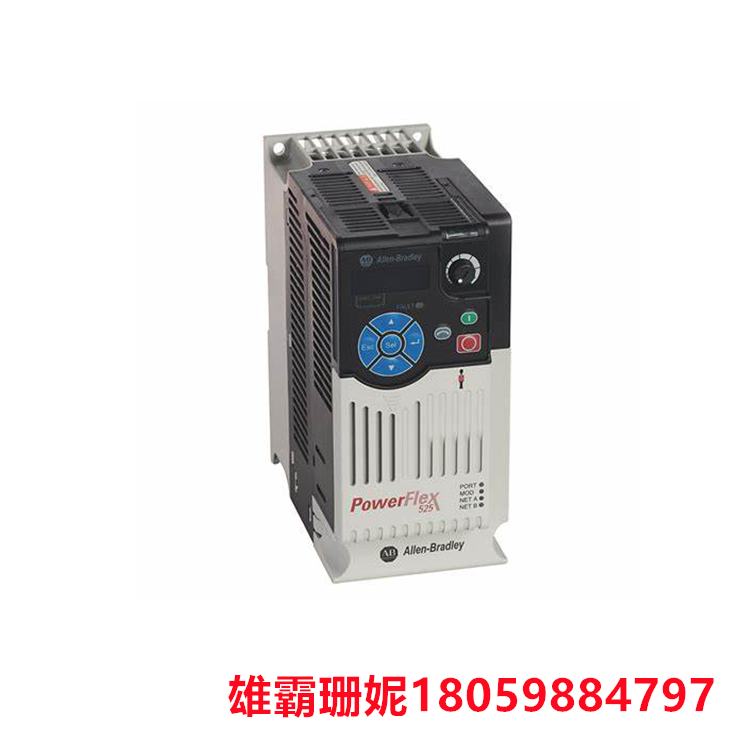

描述： Allen-Bradley 25B-D010N104是一款PowerFlex 525变频驱动器（VFD）。该 VFD 的输入电压范围为 323-528VAC，三相，适用电机输出 10.5 A，功率为 4.0 kW （5.0 HP），适用于正常负载和重载操作。

变频驱动器（Variable Frequency Drive，简称 VFD）是一种用于控制交流电机转速的电子设备。它通过改变电机输入电源的频率和电压来控制电机的转速。

25B-D010N104 变频驱动器的工作原理基于交流电机的转速与输入电源频率之间的正比关系。当输入电源的频率增加时，电机的转速也会增加；当输入电源的频率降低时，电机的转速也会降低。

25B-D010N104变频驱动器通常由控制器、功率放大器、编码器、传感器等组成。控制器可以接收外部的控制信号，并根据信号的要求生成电机的控制信号。功率放大器是用于放大控制器输出的控制信号，以驱动电机运行。编码器是用于检测电机的位置和速度，并将这些信息反馈给控制器，以实现位置和速度的闭环控制。传感器是用于检测电机的运行状态，如温度、电流、电压等，以确保电机的安全运行。

在实际应用中，25B-D010N104变频驱动器可以根据需要调整电机的转速，以满足不同的工艺要求。例如，在机床加工中，可以通过调整电机的转速来实现不同的加工速度和精度。在空调系统中，可以通过调整电机的转速来实现不同的温度控制。

总之，变频驱动器是一种高效、精确的电机控制设备，广泛应用于各种自动化设备和机器人中。它能够提供高精度、高速度和高效率的运动控制，提高了生产效率和产品质量。

变频驱动器 25B-D010N104 调整电机的转速来实现不同的温度控制

Type 25B-D010N104

Revised Edition: Ser A

Description: Allen-Bradley 25B-D010N104 is a PowerFlex 525 Variable frequency drive (VFD). The VFD has an input voltage range of 323-528VAC, three-phase, 10.5A motor output with a power of 4.0 kW (5.0 HP), suitable for normal load and heavy duty operation.

A Variable Frequency Drive (VFD) is an electronic device used to control the speed of an AC motor. It controls the speed of the motor by changing the frequency and voltage of the input power to the motor.

The working principle of the 25B-D010N104 variable frequency driver is based on the proportional relationship between the speed of the AC motor and the frequency of the input power supply. When the frequency of the input power increases, the speed of the motor will also increase; When the frequency of the input power is reduced, the speed of the motor will also be reduced.

The 25B-D010N104 variable frequency driver usually consists of a controller, a power amplifier, an encoder, a sensor, etc. The controller can receive external control signals and generate motor control signals according to the requirements of the signals. The power amplifier is used to amplify the control signal output by the controller to drive the motor operation. The encoder is used to detect the position and speed of the motor and feed this information back to the controller to achieve closed-loop control of the position and speed. Sensors are used to detect the operating state of the motor, such as temperature, current, voltage, etc., to ensure the safe operation of the motor.

In practical applications, the 25B-D010N104 variable frequency driver can adjust the speed of the motor as required to meet different process requirements. For example, in machine tool processing, different processing speeds and accuracy can be achieved by adjusting the speed of the motor. In the air conditioning system, different temperature control can be achieved by adjusting the speed of the motor.

In short, variable frequency driver is an efficient and accurate motor control device, which is widely used in various automation equipment and robots. It can provide high precision, high speed and high efficiency motion control, improve production efficiency and product quality.
