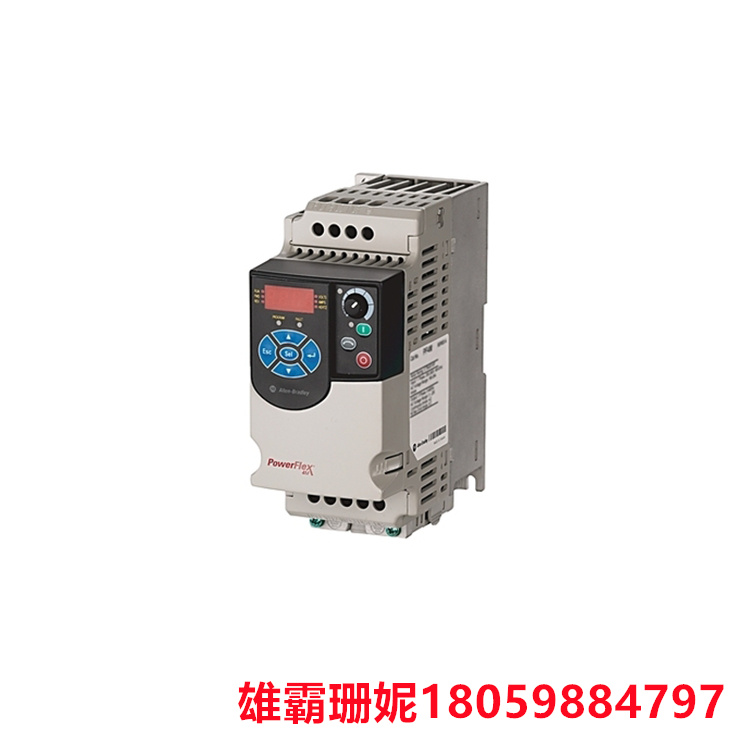

交流变频器 22F-D4P2N103 带有集成的 RS485 通信接口

22F-D4P2N103

修订版：Ser A

描述： 22F-D4P2N103 是 PowerFlex 4M produc 系列中的一款可调频率交流变频器。该驱动器由 Allen-Bradley 制造，具有 380-480VAC 的输入电压范围，三相。它提供 0-460VAC 的输出电压范围，三相，适用电机电流为 4.2 A，功率为 1.5 kW （2.0 HP）。该驱动器带有集成的 RS485 通信接口。

22F-D4P2N103交流变频器的工作原理是通过改变电机输入电源的频率和电压来控制电机的转速。

22F-D4P2N103交流变频器通常由控制器、功率放大器、编码器、传感器等组成。控制器可以接收外部的控制信号，并根据信号的要求生成电机的控制信号。功率放大器是用于放大控制器输出的控制信号，以驱动电机运行。编码器是用于检测电机的位置和速度，并将这些信息反馈给控制器，以实现位置和速度的闭环控制。传感器是用于检测电机的运行状态，如温度、电流、电压等，以确保电机的安全运行。

当控制器接收到外部的控制信号时，它会生成一个相应的控制信号，该信号经过功率放大器放大后，输入到电机中，从而改变电机的转速。编码器检测到电机的位置和速度后，将这些信息反馈给控制器，控制器根据这些信息调整控制信号，以实现位置和速度的精确控制。

22F-D4P2N103交流变频器的优点是可以实现精确的转速控制，提高了生产效率和产品质量。同时，它还可以节省能源，降低噪音和振动，延长电机的使用寿命。

交流变频器 22F-D4P2N103 带有集成的 RS485 通信接口

22F-D4P2N103

Revised Edition: Ser A

Description: The 22F-D4P2N103 is an adjustable frequency AC inverter in the PowerFlex 4M produc series. The driver, manufactured by Allen-Bradley, has an input voltage range of 380-480VAC, three phases. It offers an output voltage range of 0-460VAC, three phases, suitable motor current of 4.2A and power of 1.5 kW (2.0 HP). The driver has an integrated RS485 communication interface.

The working principle of 22F-D4P2N103 AC inverter is to control the speed of the motor by changing the frequency and voltage of the input power supply of the motor.

The 22F-D4P2N103 AC inverter is usually composed of a controller, a power amplifier, an encoder, a sensor, etc. The controller can receive external control signals and generate motor control signals according to the requirements of the signals. The power amplifier is used to amplify the control signal output by the controller to drive the motor operation. The encoder is used to detect the position and speed of the motor and feed this information back to the controller to achieve closed-loop control of the position and speed. Sensors are used to detect the operating state of the motor, such as temperature, current, voltage, etc., to ensure the safe operation of the motor.

When the controller receives the external control signal, it will generate a corresponding control signal, which is amplified by the power amplifier and input to the motor, thereby changing the speed of the motor. After the encoder detects the position and speed of the motor, this information is fed back to the controller, and the controller adjusts the control signal according to this information to achieve precise control of the position and speed.

The advantage of the 22F-D4P2N103 AC inverter is that it can achieve accurate speed control, improve production efficiency and product quality. At the same time, it can also save energy, reduce noise and vibration, and extend the service life of the motor.
