可拆卸接线端子  A-B  1756-TBCH A   用于 1756 I/O 模块

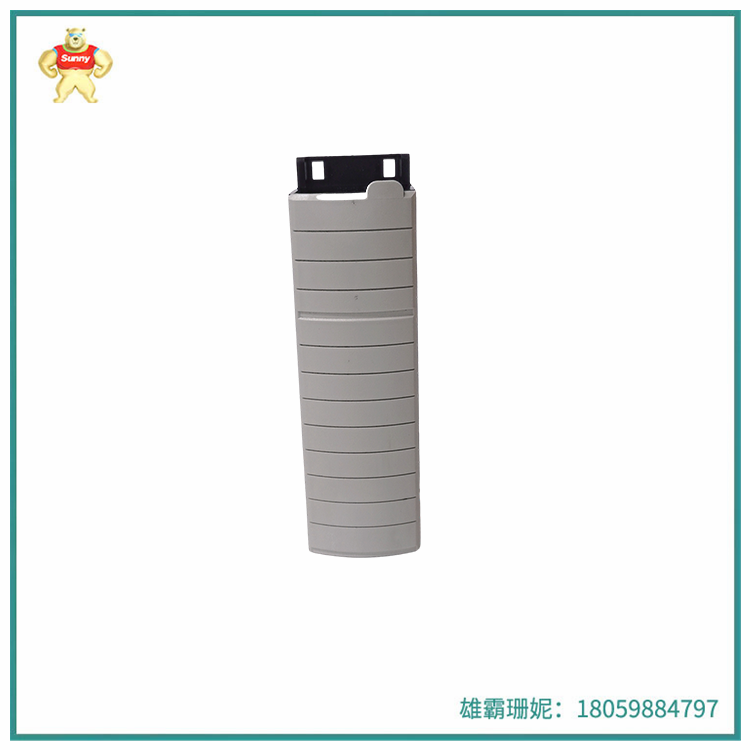

Allen-Bradley 1756-TBCH 是 ControlLogix 可拆卸接线端子 （RTB） 组件。该组件用作 1756 I/O 模块的模块化接线端子。该组件是带有标准外壳的 36 针笼夹可拆卸接线端子。

Allen-Bradley 1756-TBCH 是用于 1756 I/O 模块的可拆卸接线端子 （RTB）。它是 I/O 模块附件，必须单独订购。1756-TBCH 为互连 1756 I/O 模块和工业厂房布线提供了灵活性。它插入 I/O 模块的前面。

1756-TBCH 可拆卸接线端子是一个 36 针笼形夹具，带有标准外壳（接线臂深度为 2.5 mm. sq.）。当将信号端接到RTB时，所需的扭矩为0.5 Nm螺旋扭矩。建议使用宽度为 3.2 毫米（1/8 英寸）的螺丝刀螺丝刀宽度。它的尺寸为 5.51 x 4.41 x 5.71 英寸。重0.3磅。接线时，请使用额定温度为 90 度的实心或绞合铜线。摄氏（194°。华氏度）或更高，必须使用最大绝缘层为 1.2 毫米（3/64 英寸）的规格。如果是单线连接，导线尺寸必须为 0.33 - 2.1 平方毫米（22 - 14 AWG），对于双线连接，导线尺寸必须为 0.33 - 1.3 平方毫米（22 - 16 AWG）。在任何单个端子上，不要连接超过两个导体。

接线端子是一种用于连接电气或电子设备的连接器，它允许在不同的电路或设备之间建立电气连接。接线端子通常由金属制成，具有多个连接点，每个连接点可以连接一根或多根电线。

A-B  1756-TBCH A  接线端子通常用于电路板、控制柜、配电箱等设备中，用于连接各种电气元件，如传感器、电机、开关、灯泡等。它们提供了一种方便、可靠的连接方式，可以简化设备的组装和维护。

A-B  1756-TBCH A  接线端子的种类和规格很多，常见的类型包括：

1. 插针式接线端子：这种端子通常具有一排或多排金属插针，用于插入电路板上的插座中。

2. 螺柱式接线端子：A-B  1756-TBCH A  这种端子通常具有螺柱或螺母，用于将电线固定在端子上。

3. 压接式接线端子：A-B  1756-TBCH A  这种端子通常使用压接工具将电线压接到端子上，无需使用螺柱或螺母。

4. 弹簧式接线端子：这种端子通常具有弹簧片，用于将电线固定在端子上，并提供一定的弹性和抗振性。

在选择接线端子时，需要考虑连接的电线数量、电流和电压等参数，以确保连接的可靠性和安全性。同时，还需要考虑接线端子的安装方式、尺寸和防护等级等因素，以适应不同的应用环境。
