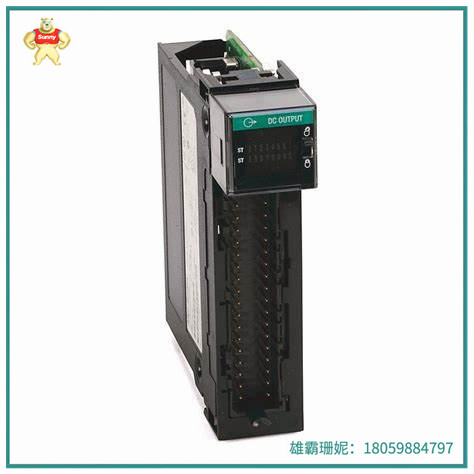

1756-OB16I 分立式输出模块 用于接收外部输入信号的电子模块

描述： 1756-OB16I 是一款 ControlLogix 分立式输出模块，在灌电流或拉电流配置下可在 12/24VDC 的电压类别下工作。该模块具有 16 个独立隔离的输出 （16）。它直接安装在 1756 本地或远程机箱上。

分立式输入模块是一种用于接收外部输入信号的电子模块。它通常用于需要从外部传感器、开关、按钮等输入设备接收信号的系统中。

1756-OB16I 分立式输入模块通常包括多个输入端口，每个输入端口可以接收一个或多个输入信号。输入信号可以是数字信号（如开关信号）或模拟信号（如温度、压力等传感器信号）。

1756-OB16I 分立式输入模块通常具有高度的可靠性和稳定性，并且易于安装和配置。它可以通过网络管理软件进行管理和监控，以确保系统的正常运行。

分立式输入模块可以用于各种应用，例如工业自动化、智能家居、医疗设备等。在这些应用中，分立式输入模块可以用于接收外部传感器、开关、按钮等输入设备的信号，并将这些信号传输到控制系统中进行处理和控制。

1756-OB16I 模块也已在 1350V AC 下进行了 2 秒的例行测试。它具有 250V 的输出至背板连续隔离电压和 125V 的输出至输出连续隔离电压。它还具有从关到开的最大 1 ms 输出延迟时间，从开到关的最长 2 ms 输出延迟时间。1756-OB16I 模块在 60 摄氏度（最大值）下的功耗为 3.6W，其散热为 12.28 BTU/小时。它的工作温度为 0 至 60 摄氏度，非工作温度为 -40 至 85 摄氏度。

1756-OB16I 分立式输出模块 用于接收外部输入信号的电子模块

Description: The 1756-OB16I is a ControlLogix split output module that can operate in the 12/24VDC voltage category in either a feed or pull current configuration. The module has 16 independently isolated outputs (16). It is installed directly on the 1756 local or remote chassis.

A discrete input module is an electronic module used to receive external input signals. It is commonly used in systems that need to receive signals from external sensors, switches, buttons, and other input devices.

The 1756-OB16I discrete input module usually includes multiple input ports, each of which can receive one or more input signals. The input signal can be a digital signal (such as a switch signal) or an analog signal (such as a sensor signal such as temperature or pressure).

The 1756-OB16I discrete input modules typically have a high degree of reliability and stability, and are easy to install and configure. It can be managed and monitored through network management software to ensure the normal operation of the system.

Separate input modules can be used for a variety of applications, such as industrial automation, smart homes, medical devices, and more. In these applications, discrete input modules can be used to receive signals from external sensors, switches, buttons and other input devices, and transmit these signals to the control system for processing and control.

The 1756-OB16I module has also been routinely tested for 2 seconds at 1350V AC. It has an output to backplane continuous isolation voltage of 250V and an output to output continuous isolation voltage of 125V. It also has a maximum output delay time of 1 ms from off to on and a maximum output delay time of 2 ms from on to off. The 1756-OB16I module has a power consumption of 3.6W at 60 degrees Celsius (maximum), and its heat dissipation is 12.28 BTU/ hour. It has an operating temperature of 0 to 60 degrees Celsius and a non-operating temperature of -40 to 85 degrees Celsius.
