1756-IB32B  分立式输入模块  具有固有的信号转换延迟

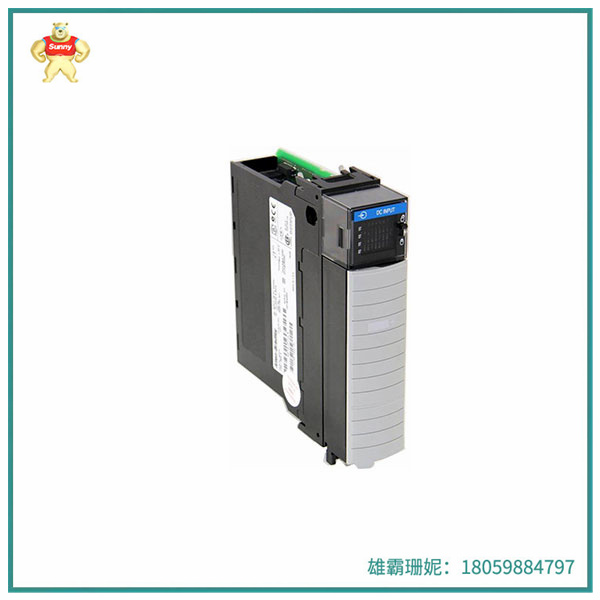

描述： Allen-Bradley 1756-IB32B 是一款 ControlLogix 分立式输入模块。它具有十六 （16） 个独立隔离的输入通道。每个通道的输入电压信号范围为10-30VDC，标称信号电压为24VDC。它与任何 ControlLogix 机箱兼容，并使用 1756-TBCH 和 1756-TBS6H 可拆卸接线端子 （RTB）。

分立式输入模块是一种用于接收外部输入信号的电子模块。它通常用于需要从外部传感器、开关、按钮等输入设备接收信号的系统中。

分立式输入模块通常包括多个输入端口，每个输入端口可以接收一个或多个输入信号。输入信号可以是数字信号（如开关信号）或模拟信号（如温度、压力等传感器信号）。

1756-IB32B 输入通道具有固有的信号转换延迟。对于OFF到ON的转换，信号延迟为最大1 ms+滤波时间硬件延迟，其中用户可配置的滤波时间，如0 ms、1 ms或2 ms。对于ON到OFF的转换，信号延迟由最大4 ms+滤波时间组成，其中可选滤波时间为0 ms、1 ms、2 ms、9 ms或18 ms。该模块的电流消耗为 100 mA @ 5.1VDC 和 3 mA @ 24VDC，总背板功率要求为 0.58 瓦。

1756 ControlLogix CIP 安全 I/0 模块

支持 Compact GuardLogix® 5380 或 GuardLogix 5580 控制台

提供高达（包括）SIL3 和 PLe 的功能安全等级

支持 CIP Safety 信息转发和路由功能

用作 5580 GuardLogix 控制器的本地 I/O 或分布式 I/O

提供更快的响应时间

使用 Logix Designer 应用程序版本 32

提供数字输入模块：IB16S – 16 通道（各个等级均为 SIL 3）

提供数字输出模块：OBV8S – 8 通道（各个等级均为 SIL 3）

包括合规性标记：TÜV，UL, IECEx, ATEX, CE, Marine, FM

1756-IB32B  分立式输入模块  具有固有的信号转换延迟

Description: Allen-Bradley 1756-IB32B is a ControlLogix discrete input module. It has sixteen (16) independently isolated input channels. The input voltage signal range for each channel is 10-30VDC, and the nominal signal voltage is 24VDC. It is compatible with any ControlLogix chassis and uses 1756-TBCH and 1756-TBS6H detachable terminal blocks (RTB).

A discrete input module is an electronic module used to receive external input signals. It is commonly used in systems that need to receive signals from external sensors, switches, buttons, and other input devices.

Separate input modules usually include multiple input ports, each of which can receive one or more input signals. The input signal can be a digital signal (such as a switch signal) or an analog signal (such as a sensor signal such as temperature or pressure).

The 1756-IB32B input channel has an inherent signal conversion delay. For the OFF to ON conversion, the signal delay is a maximum 1 ms+ filter time hardware delay, where the filter time can be configured by the user, such as 0 ms, 1 ms, or 2 ms. For ON-to-off conversion, the signal delay consists of a maximum of 4 ms+ filtering time, with optional filtering times of 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms. The module's current consumption is 100 mA@ 5.1VDC and 3 mA@ 24VDC, with a total backplane power requirement of 0.58 watts.

1756 ControlLogix CIP Secure I/0 module

Compact GuardLogix® 5380 or GuardLogix 5580 console is supported

Functional safety levels up to (including) SIL3 and PLe are available

Supports CIP Safety information forwarding and routing

Local or distributed I/O for use as the 5580 GuardLogix controller

Provides faster response times

Use the Logix Designer application version 32

Digital input modules available: IB16S-16 channels (SIL 3 for all grades)

Digital output modules available: OBV8S-8 channels (SIL 3 for all grades)

Includes compliance marks: TUV, UL, IECEx, ATEX, CE, Marine, FM
