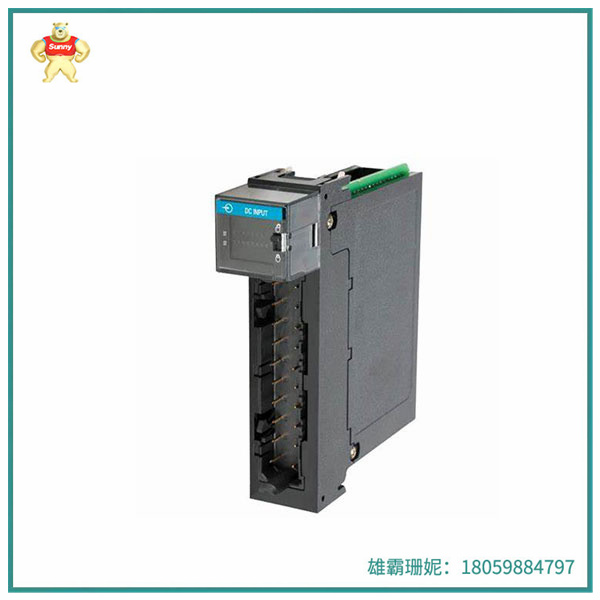

1756-IB16I 分立式输入模块  具有固有的信号转换延迟

描述： Allen-Bradley 1756-IB16I 是一款 ControlLogix 分立式输入模块。它具有十六 （16） 个独立隔离的输入通道。每个通道的输入电压信号范围为10-30VDC，标称信号电压为24VDC。它与任何 ControlLogix 机箱兼容，并使用 1756-TBCH 和 1756-TBS6H 可拆卸接线端子 （RTB）。

分立式输入模块是一种用于接收外部输入信号的电子模块。它通常用于需要从外部传感器、开关、按钮等输入设备接收信号的系统中。

分立式输入模块通常包括多个输入端口，每个输入端口可以接收一个或多个输入信号。输入信号可以是数字信号（如开关信号）或模拟信号（如温度、压力等传感器信号）。

1756-IB16I 输入通道具有固有的信号转换延迟。对于OFF到ON的转换，信号延迟为最大1 ms+滤波时间硬件延迟，其中用户可配置的滤波时间，如0 ms、1 ms或2 ms。对于ON到OFF的转换，信号延迟由最大4 ms+滤波时间组成，其中可选滤波时间为0 ms、1 ms、2 ms、9 ms或18 ms。该模块的电流消耗为 100 mA @ 5.1VDC 和 3 mA @ 24VDC，总背板功率要求为 0.58 瓦。

分立式输入模块通常具有高度的可靠性和稳定性，并且易于安装和配置。它可以通过网络管理软件进行管理和监控，以确保系统的正常运行。

分立式输入模块可以用于各种应用，例如工业自动化、智能家居、医疗设备等。在这些应用中，分立式输入模块可以用于接收外部传感器、开关、按钮等输入设备的信号，并将这些信号传输到控制系统中进行处理和控制。

1756-IB16I 分立式输入模块  具有固有的信号转换延迟

Description: Allen-Bradley 1756-IB16I is a ControlLogix discrete input module. It has sixteen (16) independently isolated input channels. The input voltage signal range for each channel is 10-30VDC, and the nominal signal voltage is 24VDC. It is compatible with any ControlLogix chassis and uses 1756-TBCH and 1756-TBS6H detachable terminal blocks (RTB).

A discrete input module is an electronic module used to receive external input signals. It is commonly used in systems that need to receive signals from external sensors, switches, buttons, and other input devices.

Separate input modules usually include multiple input ports, each of which can receive one or more input signals. The input signal can be a digital signal (such as a switch signal) or an analog signal (such as a sensor signal such as temperature or pressure).

The 1756-IB16I input channel has an inherent signal conversion delay. For the OFF to ON conversion, the signal delay is a maximum 1 ms+ filter time hardware delay, where the filter time can be configured by the user, such as 0 ms, 1 ms, or 2 ms. For ON-to-off conversion, the signal delay consists of a maximum of 4 ms+ filtering time, with optional filtering times of 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms. The module's current consumption is 100 mA@ 5.1VDC and 3 mA@ 24VDC, with a total backplane power requirement of 0.58 watts.

Separate input modules typically have a high degree of reliability and stability, and are easy to install and configure. It can be managed and monitored through network management software to ensure the normal operation of the system.

Separate input modules can be used for a variety of applications, such as industrial automation, smart homes, medical devices, and more. In these applications, discrete input modules can be used to receive signals from external sensors, switches, buttons and other input devices, and transmit these signals to the control system for processing and control.
