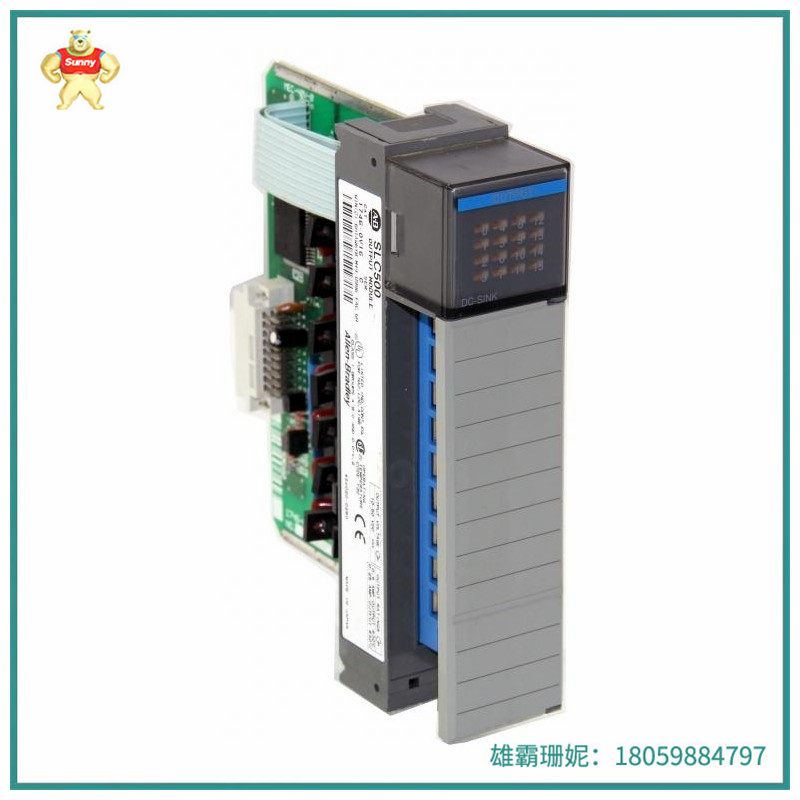

1746-OV16 分立式输出模块 应用于工业自动化

1746-OV16 是一款 Allen-Bradley 制造的分立式输出模块。该模块在一 （16） 个通道组中提供十六 （1） 个输出通道。它是一款灌电流输出模块，可提供 10-50VDC 的输出电压范围，最小输出为 24VDC。该模块非常适合用于为直流供电的电气负载供电，例如继电器线圈、指示和探测设备。

1746-OV16 在 5VDC 时的背板电流消耗为 0.270 安培，关断状态泄漏电流为 1 mA，最小负载电流为 1 mA。该输出模块的每个通道的信号延迟分别为 0.1 ms（ON 至 OFF 转换）和 1.0 ms（OFF 至 ON 转换）。该模块每点的连续输出电流在 30 °C （86 °F） 时为 0.50 A，在 60 °C （140 °F） 时为 0.25 A，而每个模块的连续输出电流在 30 °C （86 °F） 时为 8.0 A，在 60 °C （140 °F） 时为 4.0 A。该模块在 0.5 A 时的最大导通状态压降为 1.2V。 1746-OV16 的每点浪涌电流为 3.0 A，持续 10 ms，在 30 °C （86 °F） 下每 1 秒可重复一次，在 60 °C （140 °F） 下可重复 2 秒。

1746-OV16 安装在 SLC 500 机箱上。它是一个单插槽宽度的模块，直接连接到模块化风格的 SLC 500 硬件。它带有一个可拆卸的接线端子，该接线端子预装在模块上。该接线端子可以从模块上取下，以实现更轻松、更快速的接线活动。

立式输出模块（Vertical Output Module）是一种用于将数字信号转换为模拟信号输出的模块。它通常用于将计算机系统的数字信号转换为模拟信号，以便于驱动外部设备，如电机、灯具、喇叭等。

1746-OV16立式输出模块通常具有高精度、高速度、高稳定性等特点，能够实现对数字信号的精确转换和输出。它们可以通过各种接口（如 USB、RS-232、RS-485 等）与计算机系统进行连接。

立式输出模块广泛应用于工业自动化、仪器仪表、医疗设备、通信设备等领域。它们可以提高系统的可靠性、稳定性和灵活性，降低系统的成本和复杂性。

1746-OV16 分立式输出模块 应用于工业自动化

The 1746-OV16 is a discrete output module manufactured by Allen-Bradley. The module provides sixteen (1) output channels in one (16) channel group. It is a feed current output module that provides an output voltage range of 10-50VDC, with a minimum output of 24VDC. The module is ideal for powering DC-powered electrical loads, such as relay coils, indicating and detecting devices.

The 1746-OV16 has a backplane current consumption of 0.270 amps at 5VDC, a turn-off leakage current of 1 mA, and a minimum load current of 1 mA. The signal delay for each channel of the output module is 0.1 ms (ON to OFF conversion) and 1.0 ms (OFF to ON conversion) respectively. The module has A continuous output current of 0.50 A at 30 °C (86 °F) and 0.25 A at 60 °C (140 °F), while the continuous output current of each module is 8.0 A at 30 °C (86 °F). 4.0A at 60 °C (140 °F). The module has a maximum on-state voltage drop of 1.2V at 0.5A. The 1746-OV16 has A surge current of 3.0 A per point for 10 ms and can be repeated every 1 second at 30 °C (86 °F) and 2 seconds at 60 °C (140 °F).

The 1746-OV16 is installed in the SLC 500 chassis. It is a single slot width module that connects directly to the modular style SLC 500 hardware. It comes with a detachable terminal that is pre-installed on the module. The terminal can be removed from the module for easier and faster wiring activity.

A Vertical Output Module is a module used to convert a digital signal into an analog signal output. It is usually used to convert the digital signal of a computer system into an analog signal in order to facilitate the drive of external devices, such as motors, lamps, horns, etc.

The 1746-OV16 vertical output module usually has the characteristics of high precision, high speed and high stability, and can realize the accurate conversion and output of digital signals. They can be connected to the computer system through various interfaces (such as USB, RS-232, RS-485, etc.).

Vertical output module is widely used in industrial automation, instrumentation, medical equipment, communication equipment and other fields. They can improve the reliability, stability and flexibility of the system and reduce the cost and complexity of the system.
