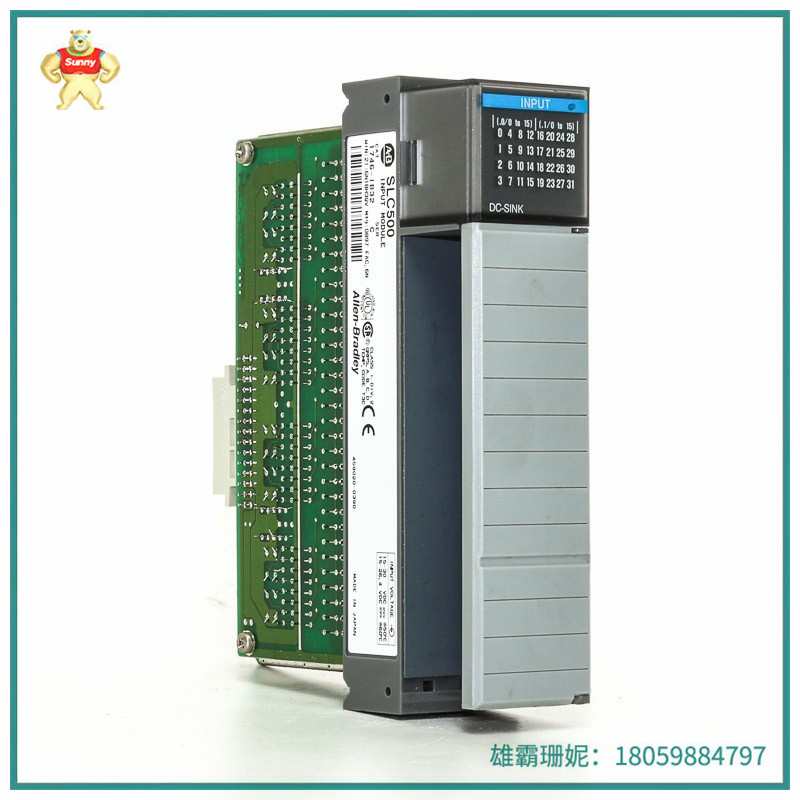

1746-IB32  分立式输入模块 用于连接电气设备

Allen-Bradley 1746-IB32 是一款 SLC 500 分立式输入模块。该模块的标称电压为 24VDC，电压范围为 15-30V DC @ 50 °C （122 °F） 或 15-26.4V DC @ 60 °C （140 °F）。该模块通常用于连接电气设备，例如开关、传感器、辅助触点和其他二进制或开/关设备。最多可有三十二 （32） 个输入信号通过嵌入式 32 个输入模块通道连接到该模块。

它与任何 SLC 500 处理器兼容，非常适合与 SLC 500 模块化硬件一起使用。它支持本地安装、沿控制器安装或安装在扩展 I/O 机架上，或沿 SLC 500 通信适配器安装到远程 I/O 机箱中。它直接安装到 1746 机箱的任何可用插槽，但为 SLC 500 控制器保留的插槽 1 除外。

1746-IB32 在 5VDC 时的背板电流消耗为 50 mA，最大关断状态输入电压为 5VDC，标称输入电流为 5.1 mA @ 24V DC，最大关断状态输入电流为 1.5 mA，ON到OFF和OFF到ON信号转换的典型信号延迟为8 ms。

1746-IB32 在背板和 I/O 之间提供 1500 伏交流电测试的背板隔离 60 秒，并具有 1500 伏交流电介质耐受性。在ON状态下，其电路上的最小电压为15.0 V DC，在OFF状态下，其最大压降为5.0 V DC，最大泄漏电流为1.5 mA。1746-IB32 模块在 ON 和 OFF 模式下输入端的最大信号延迟时间为 3ms，在 24 V DC 标称电压下的总标称输入电流为 5.1 mA。1746-IB32 的工作温度范围在 0 至 60 摄氏度（32 至 140 摄氏度）之间，非冷凝湿度为 5 至 95%，在 5 至 200 赫兹时具有 1G 的工作振动耐受性，冲击等级为 30G。

常问问题

问:保修怎么样?

答: 所有物品均提供一年保修

问: 发货怎么样?

答: 我们提供包邮，比如顺丰，德邦.包装细节:原包装厂密封

交货细节: 付款后 3-5 天内发货

1746-IB32  分立式输入模块 用于连接电气设备

The Allen-Bradley 1746-IB32 is an SLC 500 vertical input module. The module has a nominal voltage of 24VDC and a voltage range of 15-30V DC @ 50 °C (122 °F) or 15-26.4V DC @ 60 °C (140 °F). The module is commonly used to connect electrical devices such as switches, sensors, auxiliary contacts, and other binary or on/off devices. Up to thirty-two (32) input signals may be connected to the module via embedded 32 input module channels.

It is compatible with any SLC 500 processor and is ideal for use with SLC 500 modular hardware. It can be mounted locally, along the controller or on an extended I/O rack, or along the SLC 500 communication adapter into a remote I/O chassis. It is installed directly into any available slot in the 1746 chassis, with the exception of slot 1 reserved for the SLC 500 controller.

1746-IB32 backplane current consumption at 5VDC is 50 mA, maximum turn-off state input voltage is 5VDC, nominal input current is 5.1 Ma@24V DC, maximum turn-off state input current is 1.5 mA, The typical signal delay for ON to OFF and OFF to ON signal conversion is 8 ms.

The 1746-IB32 provides backplane isolation for 1500 V AC testing for 60 seconds between backplane and I/O and has 1500 V AC dielectric resistance. In the ON state, the minimum voltage on its circuit is 15.0V DC, in the OFF state, its maximum voltage drop is 5.0V DC, and the maximum leakage current is 1.5mA. The 1746-IB32 module has a maximum signal delay time of 3ms at the input in ON and OFF mode and a total nominal input current of 5.1 mA at 24 V DC nominal voltage. The 1746-IB32 has an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Celsius), non-condensing humidity of 5 to 95%, operating vibration tolerance of 1G at 5 to 200 Hertz, and impact rating of 30G.

Frequently asked question

Q: What about the warranty?

A: All items are guaranteed for one year

Q: How was the delivery?

A: We offer free shipping, such as SF Express, Deppon. Packing details: Sealed by the original packing factory

Delivery details: Delivery within 3-5 days after payment
