A-B-148540 AB可编程控制器 具有16个输入和输出位

型号:1395-148540

品牌:A-B

制造商:Allen-Bradley

系列:1395备件

148540AB可编程控制器的主要特点

1、可靠高

PLC的MTBF一般在400@~5000h以上，、ABB、松下等微小型PLC可达10万h以上，而且均有完善的自诊断功能，判断故障迅速，便于维护。

2、模块化组合灵活

可编程控制器是系列化产品，通常采用模块结构来完成不同的任务组合。O从8~8192点，有多种机型、多种功能模板可灵活组合，结构形式也是多样的。

3、功能强

PLC应用微电子技术和微计算机，简单型式都具有逻辑、定时、计数等顺序控制功能。基本型式再加上模拟IO、基本算术运算、通信能力等。复杂型式除了具有基

本型

式的功能外，还具有扩展的计算能力、多级终端机制、智能/O、PID调节、过程监视、网络通信能力、远程IO、多处理器和高速数据处理能力。

4、编程方便

PLC适用针对工业控制的梯形图、功能块图、指令表和顺序功能表图(SFC)编程，不需要太多的计算机编程知识。新的编程工作站配有综合的软件工具包，并可在任何兼容的个人计算机上编程。

5、适应工业环境

PLC的技术条件能在一般高温、振动、冲击和粉尘等恶劣环境下工作，能在强电磁干扰环境下可靠工作。这是PLC产品的市场生存价值。

特征

实现A和B节点之间的轻松连接和通信紧凑耐用的设计

即插即用功能支持各种网络协议

1395-148540A-B节点适配器板是一款高质量的适配器，可确保网络中A和B节点之间的通信顺畅可靠。它提供了一个无缝集成解决方案，允许不同的节点有效地协伺工作。

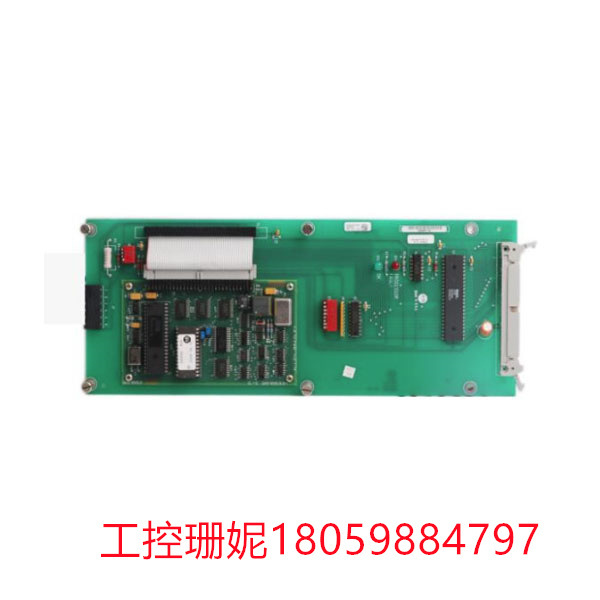

1395-148540节点适配器板是Alen-Bradley的1395系列备件。它是由Alln-Bradley/Rockwell Automnation制造的PCB（(印刷电路板）套件。驱动器提供的电路板电源为+5伏。适配器板的离散输入配有跳线可选择的24伏直流或15伏交流电压额定值。其通信接口为远程IO(RIO)接口，波特率为57.5KB或115KB。节点转接板的机架结构有两种具体类型，即全机架结构或半机架结构。其工作环境温度范围为0至60摄氏度。

1395-148540节点适配器板具有较小的表面安装板，其中包含与PLC和其他控制器执行通信所需的硬件外设。当与PLC通信时，该适配器板显示为远程/O机架。该设备的全机架或半机架配置具有16个输入和输出位，这些位直接映射到PLC的WO映像表中。1395-148540节点适配器板有2个LED指示灯。它们是红色处理器故障LED，用于显示设备故障;绿色"正常LED，用于指示适配器板和PLC之间的通信成功。该适配器板必须连接到驱动器的端口B，但在需要时也可以连接到端口A。端口选择取决于驱动器的具体应用。

A-B-148540 AB可编程控制器 具有16个输入和输出位

Model :1395-148540

Brand :A-B

Manufacturer :Allen-Bradley

Series :1395 Spare parts

The main features of 148540AB programmable controller

1, reliable high

PLC MTBF is generally more than 400@~5000h, ABB, Panasonic and other micro-small PLC can reach more than 100,000 h, and have a perfect self-diagnosis function, judge the fault quickly, easy to maintain.

2, modular combination is flexible

Programmable controllers are serialized products, usually using a modular structure to complete different combinations of tasks. O From 8 to 8192 points, there are a variety of models, a variety of functional templates can be flexibly combined, the structure is also diverse.

3, strong function

PLC application of microelectronics technology and microcomputer, simple types have logic, timing, counting and other sequence control functions. Basic types plus analog IO, basic arithmetic operations, communication capabilities, etc. Complex types have bases in addition

eigentype

In addition to the features of the model, it also has extended computing power, multi-level terminal mechanism, intelligent /O, PID regulation, process monitoring, network communication capabilities, remote IO, multi-processor and high-speed data processing capabilities.

4. Easy programming

PLC is suitable for industrial control ladder diagram, function block diagram, instruction table and sequential function table diagram (SFC) programming, does not require much computer programming knowledge. The new programming workstation comes with a comprehensive software kit and can be programmed on any compatible personal computer.

5, adapt to the industrial environment

The technical conditions of PLC can work in harsh environments such as general high temperature, vibration, shock and dust, and can work reliably in strong electromagnetic interference environments. This is the market survival value of PLC products.

trait

Enables easy connection and communication between A and B nodes Compact and durable design

Plug and play functions support a variety of network protocols

The 1395-148540A-B Node Adapter board is A high-quality adapter that ensures smooth and reliable communication between nodes A and B in a network. It provides a seamless integration solution that allows different nodes to work together efficiently.

The 1395-148540 node adapter board is a spare part for Alen-Bradley's 1395 series. It is a PCB (printed circuit board) kit manufactured by Alln-Bradley/Rockwell Automnation. The driver provides a circuit board power supply of +5 volts. The discrete input of the adapter board comes with a jumper selectable 24 V DC or 15 V AC voltage rating. The communication interface is a remote IO(RIO) interface with a baud rate of 57.5KB or 115KB. There are two types of rack structures of the node transfer board, namely full rack structure or half rack structure. The operating temperature range is 0 to 60 degrees Celsius.

The 1395-148540 node adapter board has a smaller surface mount board that contains the hardware peripherals needed to perform communication with the PLC and other controllers. When communicating with the PLC, the adapter board appears as a remote /O rack. The full-rack or half-rack configuration of the device has 16 input and output bits, which are mapped directly into the PLC's WO map table. The 1395-148540 node adapter board has 2 LED indicators. They are red processor failure leds, which are used to indicate equipment failure; Green "normal LED to indicate successful communication between the adapter board and the PLC. The adapter board must be connected to port B of the drive, but can also be connected to port A if needed. The port selection depends on the specific application of the drive.
