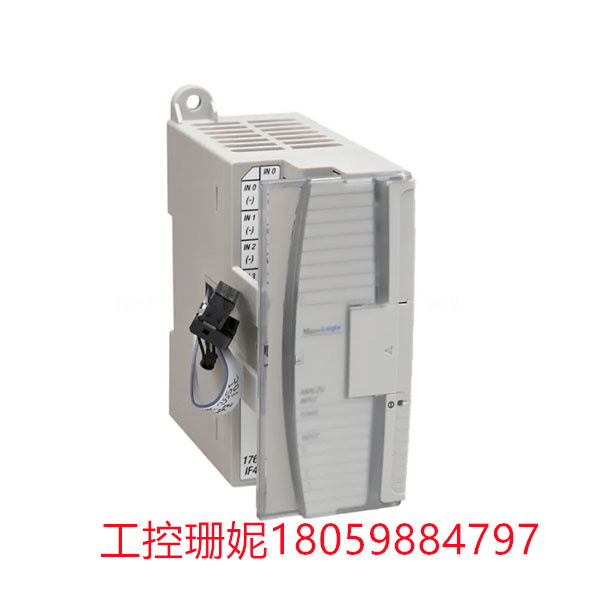

1762-IF4 A-B 4通道电流/电压模拟输入模块

1762-IF4是一个4通道电压/电流模拟输入模块，可连接到 MicroLogix控制器。1762-IF4可通过DIN导轨或面板安装进行安装。

1762-IF4是一款紧凑型四(4)个差分通道模拟输入模块。该模块支持4-20 mA和-10至10V直流信号。该模块兼容MicroLogix 1100、1200和1400可编程逻辑控制器。

接线输入接线端子时，存在手指安全盖。扁平带状电缆用于连接各种IO模块。1762-IF4模块支持2线、3线或4线变送器配置。在故障排除期间，用户应始终远离设备，并始终检查是否有任何程序更改。安全电路应始终串联到主继电器。

1762-IF4模块应安装在非危险、干燥和清洁的环境中，电路不得跨越过电压Ⅱ类标准。为避免损坏模块，请始终防止静电放电并断开电源。可现场升级的闪存操作系统有助于确保用户始终使用最新功能，而无需更换任何硬件。通过使用无机架IO模块可以扩展I/O计数。这导致了更大的控制系统、更大的应用灵活性和可扩展性，同时成本更低，零件库存更少。

关于1762-IF4

1762-IF4是Allen-Bradley MicroLogix 1200，带有4通道电流/电压模拟输入模块。它有一个德尔塔-适马转换器和4个差分(双极性)输入。其模拟工作电压范围为-10至10伏DC标准电压和-10.5至10.5伏DC满量程电压。其模拟工作电流范围正常时为4至20 mA，满量程时为-21至21 mA。该模块通过允许对系统进行额外的IO操作，增强了MicroLogix的功能。它需要最小的间距，可以安装在DIN导轨上或面板上。该模块通过1762总线接口通信并接收5至24伏DC电源的信息。

给输入端子板接线时，有一个手指安全盖。扁平带状电缆用于连接各种I/O模块。1762-IF4模块支持2线、3线或4线变送器配置。在故障排除过程中，用户应始终远离设备，并始终检查其是否有任何程序变化。安全电路应始终与主继电器串联。

1762-IF4模块应安装在无危险、干燥和清洁的环境中，电路不超过过电压类别标准。为避免损坏模块，请务必防止静电放电并切断电源。可现场升级的闪存操作系统有助于确保用户始终获得最新功能，而无需更换任何硬件。使用无机架IO模块可以增加O数量。这导致更大的控制系统，更大的应用灵活性，以及以更低的成本和减少的零件库存的可扩展性。

作为工业自动化供应商，为多元化的国际客户提供自动化零件和服务。

我们是可靠的工业自动化供应商选择，在客户关系方面表现出色。

如果您在使用网站或我们的产品时遇到任何问题，请写下您的意见或建议，我们会尽快回答您的问题!

感谢您的关注!

1762-IF4 A-B 4通道电流/电压模拟输入模块

The 1762-IF4 is a 4-channel voltage/current analog input module that can be connected to a MicroLogix controller. The 1762-IF4 can be mounted with DIN rail or panel mounting.

The 1762-IF4 is a compact four (4) differential channel analog input module. The module supports 4-20 mA and -10 to 10V DC signals. The module is compatible with MicroLogix 1100, 1200 and 1400 programmable logic controllers.

A finger safety cover exists when wiring input terminals. Flat ribbon cables are used to connect various I/O modules. The 1762-IF4 module supports 2-, 3 - or 4-wire transmitter configurations. During troubleshooting, the user should always stay away from the device and always check for any program changes. The safety circuit should always be in series to the main relay.

The 1762-IF4 module shall be installed in a non-hazardous, dry and clean environment, and the circuit shall not exceed the overvoltage Class II standard. To avoid damaging the module, always prevent electrostatic discharge and disconnect the power supply. The field-upgradeable flash operating system helps ensure that users always have access to the latest features without having to replace any hardware. I/O counting can be extended by using rackless IO modules. This results in a larger control system, greater application flexibility and scalability, while at the same time lower costs and less parts inventory.

About 1762-IF4

The 1762-IF4 is the Allen-Bradley MicroLogix 1200 with a 4-channel current/voltage analog input module. It has a Delta-Sigma converter and 4 differential (bipolar) inputs. Its analog operating voltage range is -10 to 10 volts DC standard voltage and -10.5 to 10.5 volts DC full scale voltage. Its analog operating current ranges from 4 to 20 mA at normal and -21 to 21 mA at full scale. This module enhances the functionality of MicroLogix by allowing additional IO operations on the system. It requires minimal spacing and can be mounted on a DIN rail or panel. The module communicates through the 1762 bus interface and receives information from 5 to 24 volt DC power supplies.

When wiring the input terminal board, there is a finger safety cover. Flat ribbon cables are used to connect various I/O modules. The 1762-IF4 module supports 2-, 3 - or 4-wire transmitter configurations. During troubleshooting, the user should always stay away from the device and always check it for any procedural changes. The safety circuit should always be in series with the main relay.

The 1762-IF4 module shall be installed in a non-hazardous, dry and clean environment with circuits that do not exceed the overvoltage category standards. To avoid damage to the module, avoid electrostatic discharge and cut off the power supply. The field-upgradeable flash operating system helps ensure that users always get the latest features without having to replace any hardware. Use rackless IO modules to increase the number of OS. This results in larger control systems, greater application flexibility, and scalability at lower costs and reduced parts inventory.
