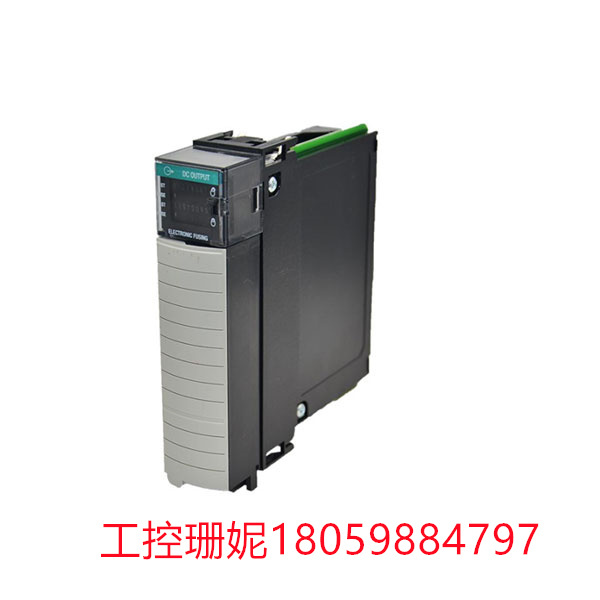

1756-OB16E A-B 单槽集成控制器

品牌:AB

型号:1756-OB16E

1756-0B16E是一个单槽宽模块，兼容任何1756 ControlLogix控制器。它可以安装到任何1756 ControlLogix机架，特别是1756-A4;1756-A17; 1756-A10;1756-A13和1756-A17。此外，它可以用作本地V/O或分布式/O组件。

1756-0B16E提供每个通道1A@60 ℃C(140 °F)或每个模块8A@60 °C(140 °F)的输出电流。它的浪涌电流额定值为⒉A，每点持续10 ms，可在0 ℃(32 °F)@ 24V DC时每2s重复一次。此外，该模块的*小负载电流为每通道3 mA。

每组提供内置电子丝。每个输出通道的OFF到ON输出延迟时间为70 us nom/1 ms，值和On到Off延迟时间为360 us nom/1

ms，值。它从背板汲取的电流在5VDC时为250 mA，在24VDC时为2 mA，而总背板功率要求为1.32瓦，功耗为4.1W@60 °C(140°F)。

Allen-Bradley 1756-0B16E是一款ControlLogix控制器。它具有2MB用户内存和478 kb IO内存可用，可选配128 MB非易失性存储内存，使用1784-CF128 CompactFlash存储卡。它是基于机架的控制器，可以放置在1756 ControlLogix机架的任何可用插槽中。该控制器的兼容机箱为1756-A4、1756-A7.1756-A10、1756-A13和1756-A17。它具有开放式外壳，多可支持250个控制器连接。它还具有一个内置的RS-232串行通信端口。RS232端口支持的协议是DF1全/半双工、ASCII、DF1无线电调制解调器、Modbus via logic和DH-485。

1756-OB16E

它的数字VO为128,000，模拟IO为4,000，总O为128,000。1756-L61的控制器任务包括32个任务，每个任务100个程序，以及事件任务∶所有事件触发器。1756-L61具有多种通信选项，例如 ControlNet、Data Highway Plus、EtherNetIP、DeviceNet、SynchLink、远程IO以及第三方过程和设备网络。1756-L61控制器的电流消耗在5.1V DC时为1200 mA，在24V DC时为14 mA。功耗为3.5W，热耗散为11.9 BTU/小时。它还具有30V的连续隔离电压，并在720V DC下测试了60秒。它的工作温度为0至60摄氏度，存储温度为-40至85摄氏度，周围空气温度为60摄氏度。

1756-OB16E是一款ControlLogix控制器，具有集成的2MB用户内存，使控制器能够处理多达128,000个离散IO和4000个模拟VO。该控制器有一个集成的RS232通信端口，可以通过逻辑配置为ASCII、DF1全/半双工、DF1无线电调制解调器、DH-485和Modbus。

该控制器支持独立和分布式IO应用的实施。虽然模块允许250个连接。根据所使用的通信模块，网络连接可能会有所不同。它还支持冗余以提高系统可用性，这在关键系统中通常是必需的。

1756-OB16E AB 控制器还具有通过嵌入式SERCOS 接口集成的运动、模拟输入选项，例如编码器输入、LDT输入和SSl输入。如果与以太网通信模块一起使用，该驱动器可以通过以太网I/P实现运动。

1756-OB16E A-B 单槽集成控制器

Brand :AB

Model :1756-OB16E

The 1756-0B16E is a single slot wide module that is compatible with any 1756 ControlLogix controller. It can be mounted to any 1756 ControlLogix rack, especially the 1756-A4; 1756-A17;  1756-A10; 1756-A13 and 1756-A17. In addition, it can be used as a local V/O or distributed /O component.

The 1756-0B16E offers an output current of 1A@60 °C(140 °F) per channel or 8A@60 °C(140 °F) per module. It has A surge current rating of A. Each point lasts 10 ms and can be repeated every 2s at 0 ° C (32 °F) @24V DC. In addition, the minimum load current of the module is 3 mA per channel.

Each set provides built-in electronic wire. The OFF to ON output delay time for each output channel is 70 us nom/1 ms, and the value and On to Off delay time are 360 us nom/1

ms, the value. The current it draws from the backplane is 250 mA at 5VDC and 2 mA at 24VDC, while the total backplane power requirement is 1.32 watts with a power consumption of 4.1W@60 °C(140°F).

The Allen-Bradley 1756-0B16E is a ControlLogix controller. It has 2MB of user memory and 478 kb of IO memory available, with an optional 128 MB of non-volatile storage memory, using a 1784-CF128 CompactFlash memory card. It is a rack-based controller that can be placed in any available slot in the 1756 ControlLogix rack. Compatible enclosures for this controller are 1756-A4, 1756-A7.1756-A10, 1756-A13, and 1756-A17. It has an open housing and can support up to 250 controller connections. It also has a built-in RS-232 serial communication port. The protocols supported by the RS232 port are DF1 full/half duplex, ASCII, DF1 radio modem, Modbus via logic, and DH-485.

1756-OB16E

It has a digital VO of 128,000, an analog IO of 4,000, and a total O of 128,000. Controller tasks for the 1756-L61 include 32 tasks with 100 programs per task, and event tasks: all event triggers. The 1756-L61 has a variety of communication options, such as ControlNet, Data Highway Plus, EtherNetIP, DeviceNet, SynchLink, remote IO, and third-party process and device networks. The current consumption of the 1756-L61 controller is 1200 mA at 5.1V DC and 14 mA at 24V DC. The power consumption is 3.5W and the heat dissipation is 11.9 BTU/ hour. It also has a continuous isolation voltage of 30V and was tested at 720V DC for 60 seconds. It has an operating temperature of 0 to 60 degrees Celsius, a storage temperature of -40 to 85 degrees Celsius, and a ambient air temperature of 60 degrees Celsius.

The 1756-OB16E is a ControlLogix controller with an integrated 2MB of user memory that enables the controller to handle up to 128,000 discrete IO and 4,000 analog VO. The controller has an integrated RS232 communication port and can be logically configured to ASCII, DF1 full/half duplex, DF1 radio modem, DH-485 and Modbus.

The controller supports the implementation of independent and distributed IO applications. Although the module allows 250 connections. Depending on the communication module used, the network connection may vary. It also supports redundancy to improve system availability, which is often required in critical systems.

The 1756-OB16E AB controller also features motion, analog input options, such as encoder input, LDT input, and SSl input, integrated through embedded SERCOS interfaces. If used with an Ethernet communication module, the driver can achieve motion via Ethernet I/P.
