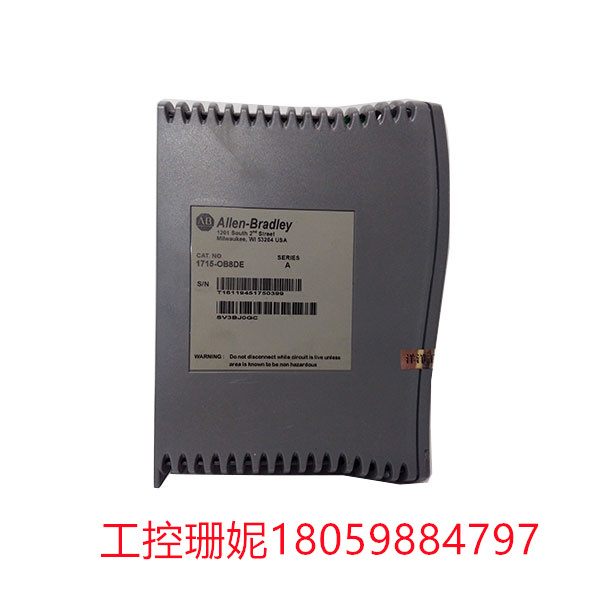

1715-OB8DE A-B 冗余IO 8点数字输出模块

1715-OB8DE的技术规格

制造者:罗克韦尔自动化

线材尺寸:18至16 AWG

品牌:艾伦-布拉德利

尺寸:166 x42x118毫米

部件号/目录号:1715-OB8DE

重量:290克

产品线:公告1715冗余IO模块

冲击等级:安装和运行时为25 g

模块类型:8点数字输出模块

安装:导轨

I/O模块:8点数字输出模块

输出信号:18至32伏直流电

功耗:最大3瓦

1715-0B8DE由Allen-Bradley 制造，是一种冗余VO模块，属于1715系列Alen-Bradley冗余ⅣO模块。1795-0BSDE的最大功率容量功耗为3瓦。1715-0BDE的工作温度最低为-25摄氏度，最高为70摄氏度。冗余VⅣO模块被描述为8点数字输出模块，导线尺寸为18至16AWNG。该单位的装运重量约为20克。115-OBSDE是基于机箱的应用，它带有DIN导轨安装类型。

1715-0BSDE的外壳类型为开放式，并配有一个显示系统，用作模块的运行状况和状态显示仪表板。1715-0BSDE带有18至32伏直流电的输出信号。1715-0BSDE的运输尺寸为长度为158英寸，宽度为458英寸，高度为612英寸。根据制造商的说法，1715-O0B8DE配备18-16AWNG实心绞合铜线，额定功率小于2瓦。1715-OB8DE的抗振性为2g，在DN导轨和运行状态下的抗冲击等级为25克。在非运行状态下和安装在DIN导轨上时，该模块具有30 g的抗冲击能力，卸载对具有50 g的抗冲击能力。1715-OB8DE具有电流源输出类型和浪涌瞬态抗扰度。

1715-0B8DE数字输出模块是一种电子设备，它能够将数字信号转换为模拟信号，从而实现对机械或系统的控制。它通常由数字输入接口、模拟输出接口、处理器、存储器等组成。数字输出模块具有高精度、高稳定性、可编程性等优点，被广泛应用于各种工业自动化生产线、机械设备、医疗器械等领域。

输入模块与单输入模块的区别如下：

定义不同 。输入模块是单输入模块和双输入模块的总称；单输入模块只接受1个设备的动作信号。

应用不同 。在消防报警系统中，根据实际情况进行选择，如喷淋系统中，楼层中设置了水流指示器和信号阀，间隔小，可以采用2个单输入模块或采用1个双输入模块；而楼层中防火阀之间距离大，则在每个防火阀处设计一个单输入模块就可以了。

保修期:12个月!

包装:原包装用纸箱。

交货时间:付款后3天内发货

1715-OB8DE A-B 冗余IO 8点数字输出模块

Technical specifications for the 1715-OB8DE

Manufacturer: Rockwell Automation

Wire size :18 to 16 AWG

Brand: Alan Bradley

Dimensions :166 x42x118 mm

Part number/Directory number :1715-OB8DE

Weight :290 grams

Product Line: Announcement 1715 Redundant IO modules

Impact rating: 25 g during installation and operation

Module type: 8-point digital output module

Mounting: Guide rail

I/O module: 8-point digital output module

Output signal :18 to 32 volts DC

Power consumption: Maximum 3 watts

The 1715-0B8DE, manufactured by Allen-Bradley, is a redundant VO module belonging to the 1715 series Alen-Bradley Redundant IV O module. The maximum power capacity of the 1795-0BSDE is 3 watts. The 1715-0BDE operates at a minimum of -25 degrees Celsius and a maximum of 70 degrees Celsius. Redundant IVO modules are described as 8-point digital output modules with wire sizes of 18 to 16AWNG. The shipment weight of this unit is about 20 grams. 115-OBSDE is a chassis based application with a DIN rail mounting type.

The 1715-0BSDE has an open housing type and is equipped with a display system that acts as a dashboard for the module's health and status display. The 1715-0BSDE has an output signal of 18 to 32 volts DC. The 1715-0BSDE's shipping dimensions are 158 inches in length, 458 inches in width, and 612 inches in height. According to the manufacturer, the 1715-O0B8DE is equipped with 18-16 AWng solid stranded copper wire with a power rating of less than 2 watts. The 1715-OB8DE has a vibration resistance of 2g and a shock resistance rating of 25 grams on DN rail and in operation. The module has a 30 g impact resistance when not in operation and when mounted on a DIN rail, and 50 g impact resistance when unloaded. The 1715-OB8DE has a current source output type and surge transient immunity.

The 1715-0B8DE digital output module is an electronic device that is capable of converting digital signals into analog signals, thereby enabling the control of machinery or systems. It usually consists of digital input interface, analog output interface, processor, memory and so on. Digital output module has the advantages of high precision, high stability, programmability and so on, and is widely used in various industrial automation production lines, mechanical equipment, medical equipment and other fields.

The differences between input modules and single-input modules are as follows:

Different definitions. Input module is the general name of single input module and double input module; The single input module accepts the action signal of only one device.

The application is different. In the fire alarm system, choose according to the actual situation, such as the spray system, the water flow indicator and signal valve are set in the floor, the interval is small, you can use 2 single input modules or use 1 double input module; The distance between fire valves in the floor is large, so a single input module can be designed at each fire valve.

Warranty period :12 months!

Packing: Original carton.

Delivery time: Delivery within 3 days after payment
