1756-L61 ControlLogix控制器 I/O内存

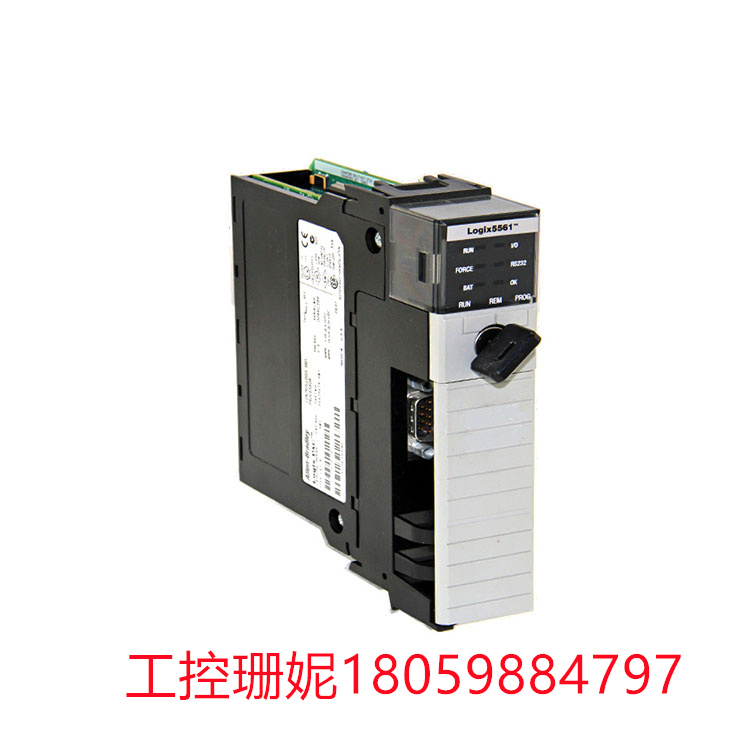

Allen-Bradley 1756-L61是一款ControlLogix控制器。它有2mb的用户内存和478 kb的I/O内存，可选的非易失性存储内存为128 MB，使用1784-CF128 CompactFlash存储卡。它是一个基于机箱的控制器，可以放置在1756 ControlLogix机箱的任何可用槽位。与此控制器兼容的机箱有1756-A4、1756-A7、1756-A10、1756-A13和1756-A17。它具有开放式类型的外壳，最多可支持250个控制器连接。它也有一个内置的RS-232串行通信端口。RS232端口支持的协议有:DF1全/半双工、ASCII、DF1无线电调制解调器、Modbus via logic、DH-485。

联系电话：18059884797

立即咨询在线留言

产品详情

1756-L61 ControlLogix控制器 I/O内存

【功能描述】

它的最大数字I/O为128,000，最大模拟I/O为4,000，最大总I/O为128,000。1756-L61的控制器任务包括32个任务，每个任务100个程序，事件任务:所有事件触发器。1756-L61具有多种通信选项，如ControlNet、Data Highway Plus、EtherNet/IP、DeviceNet、SynchLink、Remote I/O以及第三方进程和设备网络。1756-L61控制器的电流消耗在5.1V DC时为1200ma，在24V DC时为14ma。功耗为3.5 W，散热为11.9 BTU/hr。它还具有30V的连续隔离电压，并在720V直流下测试了60秒。它的工作温度为0 ~ 60摄氏度，储存温度为-40 ~ 85摄氏度，周围空气温度最高为60摄氏度。相对湿度为5% ~ 95%(无冷凝)，振动为2g，频率为10 ~ 500hz，工作和非工作冲击分别为30g和50g。

Allen-Bradley 1756-L61是一款ControlLogix控制器，具有集成的2MB用户内存，使控制器能够处理多达128,000个离散和4000个模拟I/O。该控制器具有集成的RS232通信端口，可通过逻辑配置为ASCII, DF1全/半双工，DF1无线电调制解调器，DH-485和Modbus。

该控制器支持独立和分布式I/O应用程序的实现。虽然模块允许250个连接。根据使用的通信模块不同，网络连接可能会有所不同。它还支持冗余，以提高关键系统中通常需要的系统可用性。

该控制器还通过嵌入式SERCOS接口集成了运动，模拟输入选项如编码器输入，LDT输入和SSI输入。如果与以太网通信模块一起使用，该驱动器可以通过以太网I/P实现运动。

控制器支持的编程语言包括继电器梯形、结构化文本、功能框图(FBD)和顺序功能图(SFC)。

为了与模块通信，需要使用RS232通信线缆。该模块的适当通信是1756-CP3或1747-CP3，直角连接器到控制器，直接到串口，3米(9.84英尺)。该模块使用电池将用户程序和数据保存在其内存中。a系列控制器对应的电池为1756-BA1、1756-BATM、1756-BATA, B系列控制器对应的电池为1756-BA2。

1756-L61 ControlLogix控制器 I/O内存

The Allen-Bradley 1756-L61 is a ControlLogix controller. It has 2mb of user memory and 478 kb of I/O memory, and 128 MB of optional non-volatile storage memory, using a 1784-CF128 CompactFlash memory card. It is a chassis based controller that can be placed in any available slot in the 1756 ControlLogix chassis. Chassis compatible with this controller are 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. It has an open type housing and can support up to 250 controller connections. It also has a built-in RS-232 serial communication port. The RS232 port supports the following protocols :DF1 full/half duplex, ASCII, DF1 radio modem, Modbus via logic, and DH-485.

It has a maximum digital I/O of 128,000, a maximum analog I/O of 4,000, and a maximum total I/O of 128,000. The controller tasks of the 1756-L61 consist of 32 tasks, 100 programs each, event tasks: all event triggers. The 1756-L61 features a variety of communication options, such as ControlNet, Data Highway Plus, EtherNet/IP, DeviceNet, SynchLink, Remote I/O, and third-party processes and device networks. The current consumption of the 1756-L61 controller is 1200ma at 5.1V DC and 14ma at 24V DC. Power consumption is 3.5W and heat dissipation is 11.9BTU /hr. It also has a continuous isolation voltage of 30V and was tested at 720V DC for 60 seconds. Its operating temperature is 0 to 60 degrees Celsius, the storage temperature is -40 to 85 degrees Celsius, and the surrounding air temperature is up to 60 degrees Celsius. The relative humidity is 5% to 95%(no condensation), the vibration is 2g, the frequency is 10 to 500hz, and the working and non-working shocks are 30g and 50g, respectively.

The Allen-Bradley 1756-L61 is a ControlLogix controller with an integrated 2MB of user memory that enables the controller to handle up to 128,000 discrete and 4,000 analog I/ OS. The controller has an integrated RS232 communication port and can be logically configured to ASCII, DF1 full/half duplex, DF1 radio modem, DH-485 and Modbus.

The controller supports the implementation of independent and distributed I/O applications. Although the module allows 250 connections. Depending on the communication module used, the network connection may vary. It also supports redundancy to improve system availability, which is often required in critical systems.

The controller also integrates motion, analog input options such as encoder input, LDT input and SSI input via embedded SERCOS interface. If used with an Ethernet communication module, the driver can achieve motion via Ethernet I/P.

Programming languages supported by the controller include relay ladder, structured text, Function block Diagram (FBD), and Sequential Function diagram (SFC).

In order to communicate with the module, an RS232 communication cable is required. Proper communication for this module is 1756-CP3 or 1747-CP3, right Angle connector to controller, direct to serial port, 3 m (9.84 ft). The module uses batteries to store user programs and data in its memory. The batteries for a series controllers are 1756-BA1, 1756-BATM, and 1756-BATA. The batteries for B series controllers are 1756-BA2.
