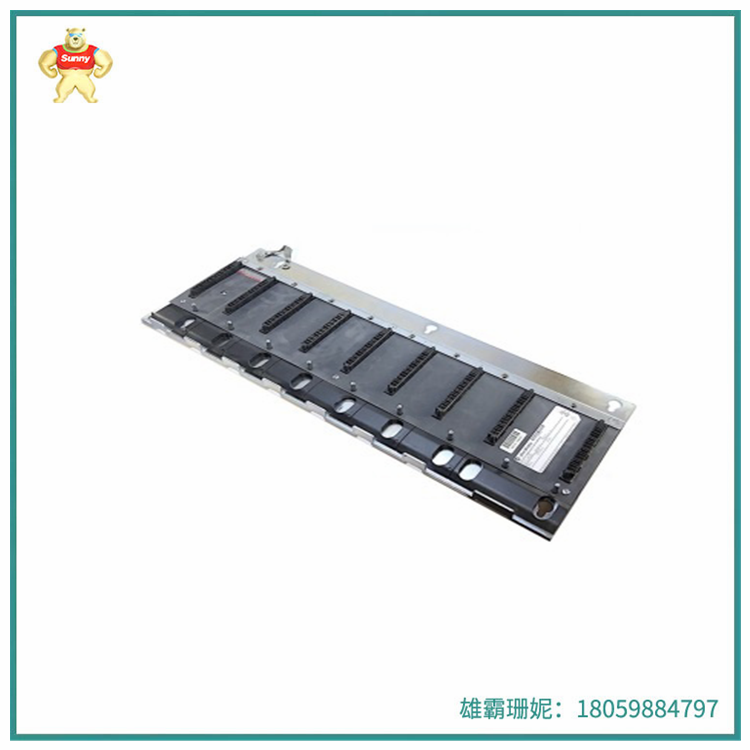

2094-PRS5  |  超薄电源轨  |  用于 AM、插槽填充器或分流模块

制造者：罗克韦尔自动化

品牌 ：艾伦-布拉德利

零件编号/目录号：2094-PRS5型

模块类型 ：超薄电源轨

应用 230 或 460 伏驱动系统

模块容量 1 个 IAM，4 个附加

轴数：5轴

尺寸 ：16.5 x 13.3 x 7.7 英寸（419.1 x 337.8 x 195.6 毫米）

重量：6.8磅（3.11千克）

Allen-Bradley 2094-PRS5 是一款纤细的电源轨，带有 5 个逆变器孔，可在其上安装驱动模块。在 5 个插槽中，1 个插槽用于 IAM 模块，4 个插槽用于 AM、插槽填充器或分流模块。2094-PRS5 属于 Kinetic 6000 电源轨的 2094-PRSx 系列。

2094-PRS5 电源轨最左侧的孔专为 IAM 转换器保留。

逆变器插槽或轴的数量决定了电源轨的选择，具体取决于导轨安装模块的要求。这个数字应该尽可能小。因此，如果碰巧选择的电源轨的孔数超过驱动系统所需的最小孔数，则可能需要在额外的插槽中安装 Bulletin 2094-PRF 插槽填充模块。

五轴电源轨尺寸为 41.91 厘米 x 33.78 厘米。2094-PRS5 重 3.11 千克。用于电压等级为 230V AC 和 460V AC 的 Kinetix 6000 变频器的 2094-BSP2 分流模块编目为 2094-BCxx-Mxx-S，它为变频系统提供了 200W 的额外分流容量。

Manufacturer: Rockwell Automation

Brand: Alan Bradley

Part Number/Catalog Number: Model 2094-PRS5

Module type: Ultra-thin power rail

Application of 230 or 460 volt drive systems

Module capacity One IAM and four additional modules

Number of axes: 5 axes

Dimensions: 16.5 x 13.3 x 7.7 inches (419.1 x 337.8 x 195.6 mm)

Weight: 6.8 pounds (3.11 kg)

The Allen-Bradley 2094-PRS5 is a slim power rail with five inverter holes on which the drive module can be mounted. Of the five slots, one is for the IAM module and four are for the AM, slot filler, or shunt module. The 2094-PRS5 belongs to the 2094-PRSx series of Kinetic 6000 power supply rails.

The hole on the far left of the 2094-PRS5 power rail is reserved for IAM converters.

The number of inverter slots or shafts determines the choice of power rails, depending on the requirements of the rail mounting module. This number should be as small as possible. Therefore, if the power rail that happens to be selected has more holes than the maximum number of holes required for the drive system, a Bulletin 2094-PRF slot filling module may need to be installed in an additional slot.

The five-axis power rail measures 41.91 cm x 33.78 cm. The 2094-PRS5 weighs 3.11 kg. The 2094-BSP2 shunt module for Kinetix 6000 converters with voltage classes of 230V AC and 460V AC is cataloged as 2094-BCxx-Mxx-S, which provides an additional shunt capacity of 200W for inverter systems.
