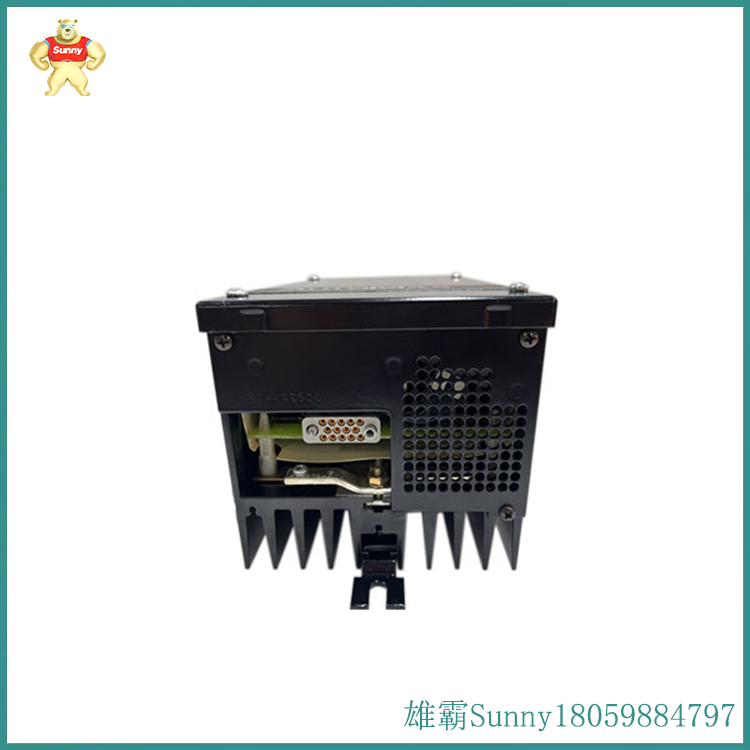

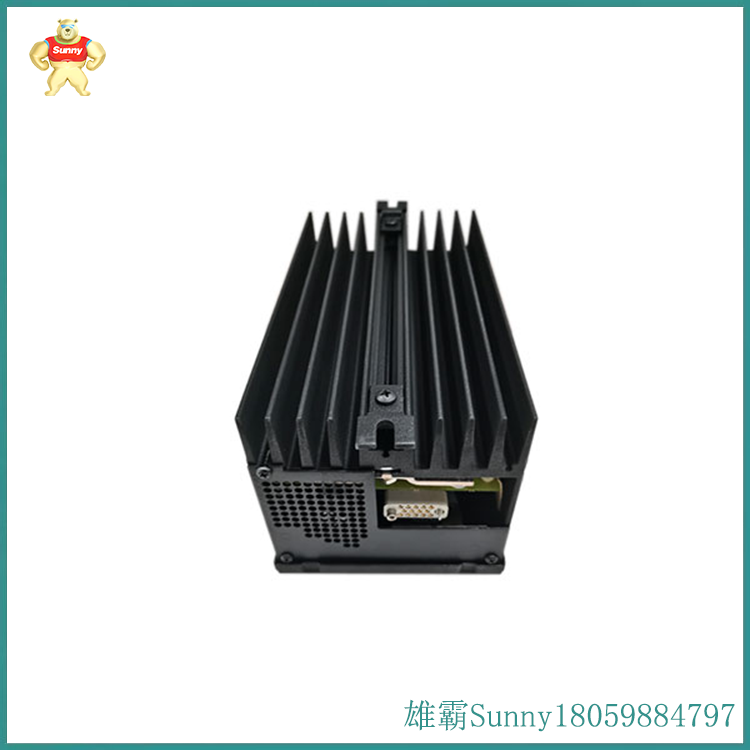

805405-1单元是由信实电气制造的SF3000面板安装单相现场电源模块。该产品已被其原始制造公司停止生产,但AX Control努力为我们的客户提供此设备,并且现在可能有库存。此页面上列出了我们库存中的 805405-1 现场电源模块的可用性,但您也可以在我们的工作时间致电或发送电子邮件给我们。
805405-1 现场电源模块旨在为 AutoMax 系列中的直流电机提供可调电压、电流调节励磁过程。为此,将 805405-1 现场电源模块与三相电枢电源模块一起使用,后者都连接到同一 PMI 机架。805405-1 现场电源模块的 SCR 电源桥设计为使用 AutoMax 编程执行软件进行操作。
805405-1 现场电源模块的额定功率为 15 输出安培,交流输入电压范围为 120 至 460 VAC,采用非反向桥式。除此之外,805405-1 现场电源模块还具有电气隔离电源立方体,该电源立方体具有自己的 dv/dt 保护,以及内部交流线路保险丝。还有一个自燃夹具,用于防止电流中断引起的感应电压踢事件。805405-1 现场电源模块的整流器总共由四个 SCR 组成,所有这些 SCR 都配置为用于全波桥。隔离变压器是该模块的可选组件。
The 805405-1 unit is an SF3000 panel mounted single-phase on-site power module manufactured by Reliance Electric. The product has been discontinued by its original manufacturing company, but AX Control is working hard to provide this equipment to our customers and may now have inventory. This page lists the availability of 805405-1 on-site power modules in our inventory, but you can also call or email us during our working hours.
The 805405-1 on-site power module is designed to provide adjustable voltage and current regulation excitation processes for DC motors in the AutoMax series. For this purpose, the 805405-1 on-site power module is used together with the three-phase armature power module, both of which are connected to the same PMI rack. The SCR power bridge of the 805405-1 on-site power module is designed to operate using AutoMax programming execution software.
The rated power of the 805405-1 on-site power module is 15 output amperes, and the AC input voltage range is 120 to 460 VAC, using a non reverse bridge type. In addition, the 805405-1 on-site power module also has an electrically isolated power cube, which has its own dv/dt protection and internal AC line fuses. There is also a self igniting fixture used to prevent induced voltage kick events caused by current interruption. The rectifier of the 805405-1 on-site power module consists of a total of four SCR's, all of which are configured for full wave bridge use. The isolation transformer is an optional component of the module.
