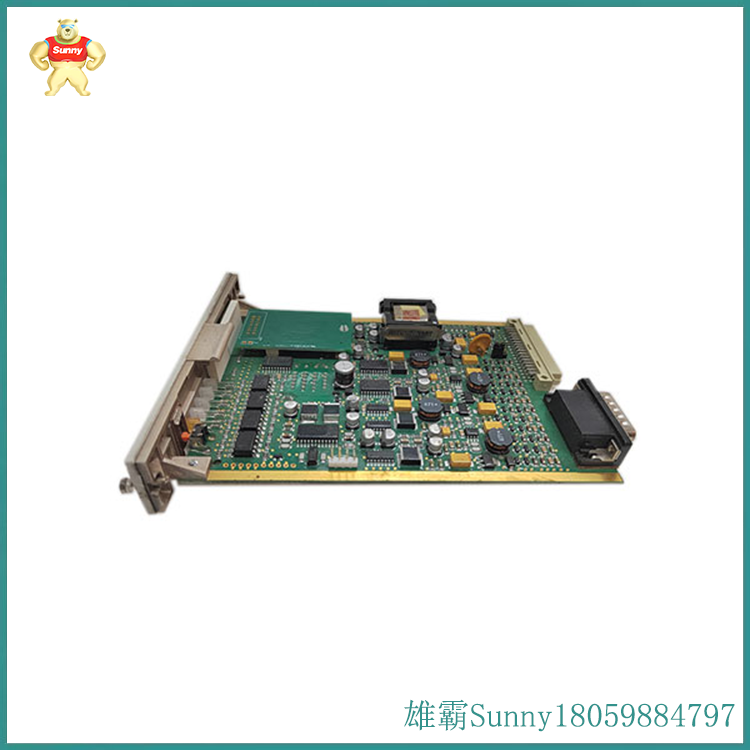

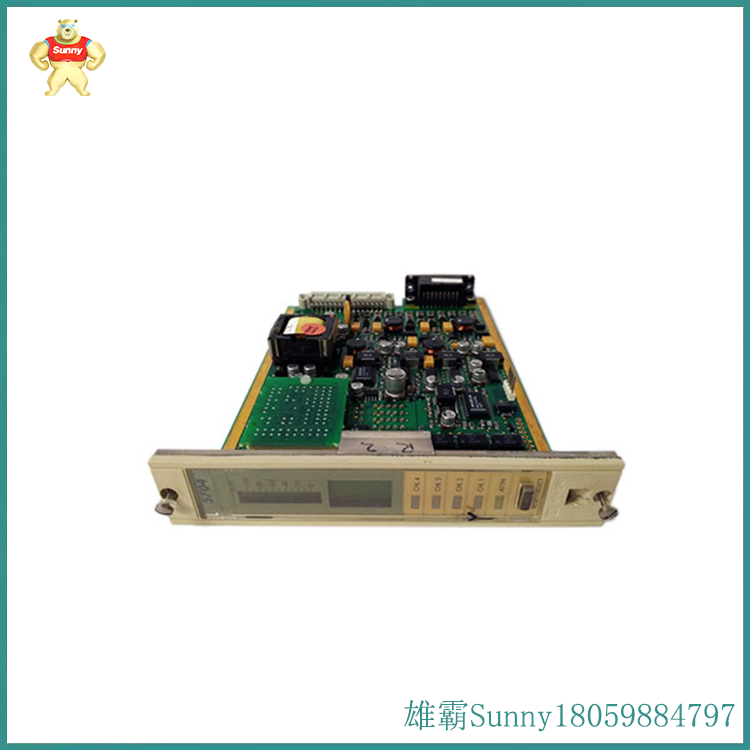

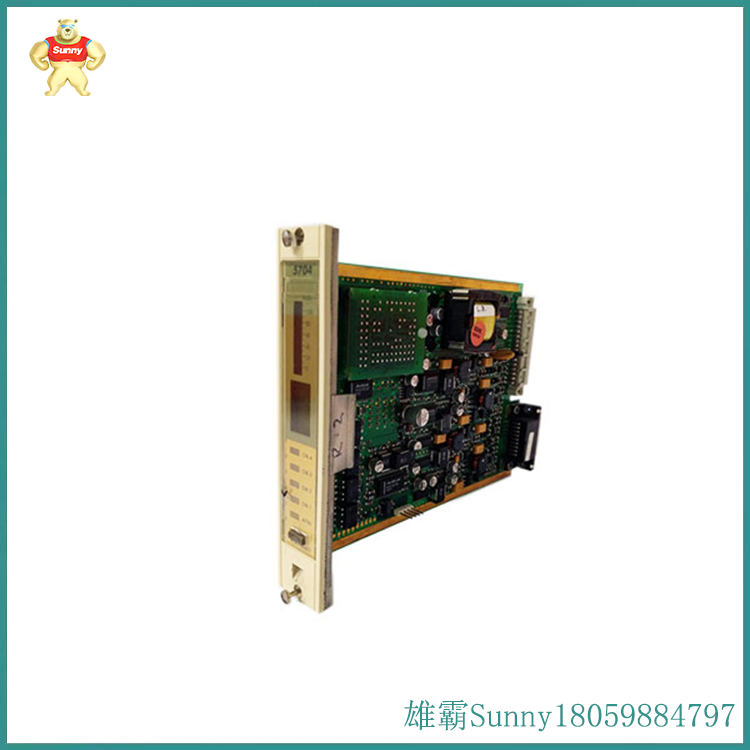

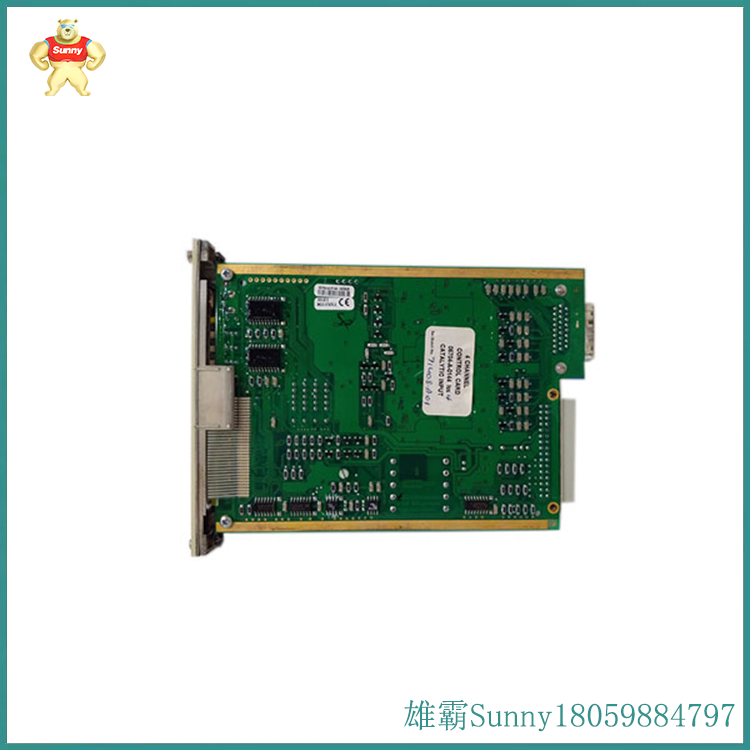

05704-A-0144 四通道控制卡催化输入

制造商:霍尼韦尔

产品编号:05704-A-0144

产品类型:四通道控制卡催化输入

功耗:12.8W(传感器电流为200mA时最大)。8.5W(典型值)。

驱动:恒流。

初始精度:1%。

电流调节:从90到315毫安的1mA电子步进。

最大驱动电压:10V

保护:防止短路和开路。

最大线路电阻:200毫安时为40欧姆(包括传感器)。

满量程信号范围:1 5mV至300mV

电桥不平衡默认限值:在2V电桥电压下，离中心100mV。

调整:电桥平衡和信号增益的电子调整。

故障检测:断路。短路单珠故障。

运输重量:2公斤

Manufacturer: Honeywell

Product number: 05704-A-0144

Product type: Four channel control card catalytic input

Power consumption: 12.8W (maximum when sensor current is 200mA). 8.5W (typical value).

Drive: Constant current.

Initial accuracy: 1%.

Current regulation: 1mA electron stepping from 90 to 315 milliamperes.

Maximum driving voltage: 10V

Protection: prevent short circuits and open circuits.

Maximum line resistance: 40 ohms at 200 mA (including sensor).

Full range signal range: 1 5mV to 300mV

Default limit for bridge imbalance: 100mV from center at a 2V bridge voltage.

Adjustment: Electronic adjustment of bridge balance and signal gain.

Fault detection: open circuit. Short circuit single bead fault.

Transportation weight: 2 kilograms
