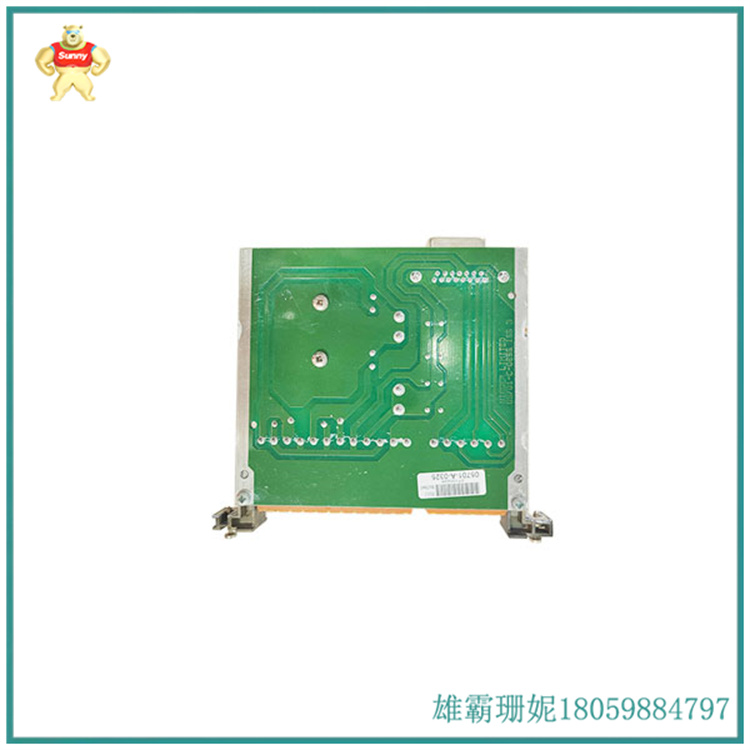

HONEYWELL 05701-A-0325 直流输入卡

●制造商:霍尼韦尔

●产品编号:05701-A-0325

●产品类型:DC输入卡

●机架的直流电可以通过dc输入卡进入子机架。 该电源可由用户从外部标称24V直流电源提供。直流电源通过工程卡和子机架背板连接到机架中的所有卡，并由dc输入卡上的保险丝保护。有一个由两部分组成的端子板TB1,有助于在不断开每根连接导线的情况下移除卡。

●为了防止在使用八个以上5704催化卡的安装中沿机架背板出现过大电流，建议控制卡通过其相关的四继电器接口卡和仅用于为工程卡供电的DC输入卡供电。如果需要，备用电池电源也可以连接到辅助直流输入连接。

●PSU和辅助连接通过二极管相互隔离。

●DC输入卡还提供RFI过滤和反极性保护。

●运输重量:2公斤

Manufacturer: Honeywell

Product number: 05701-A-0325

Product type: DC input card

The DC power of the rack can enter the subrack through the DC input card. This power supply can be provided by the user from an external nominal 24V DC power supply. The DC power supply is connected to all cards in the rack through the engineering card and subrack backplane, and is protected by fuses on the DC input card. There is a two part terminal board TB1 that helps to remove the card without disconnecting each connecting wire.

To prevent excessive current from occurring along the rack backplane during installation using more than eight 5704 catalytic cards, it is recommended to control the power supply of the card through its associated four relay interface cards and DC input cards that are only used to power the engineering card. If necessary, a backup battery power supply can also be connected to the auxiliary DC input connection.

The PSU and auxiliary connections are isolated from each other through diodes.

The DC input card also provides RFI filtering and reverse polarity protection.

Transportation weight: 2 kilograms
